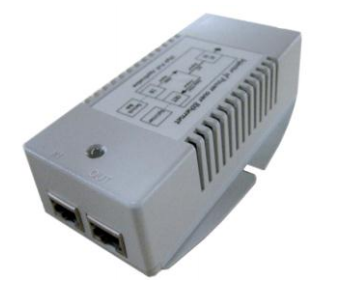

Tycon System TP-POE-HP-24G, Gigabit PoE source 24V/2A, 48W

TP-POE-HP-xx high power POE power sources/inserters supply up to 50W of DC power and are suitable for powering high power electronics. These POE power sources supply power on Pins 4.5 (V +) and Pins 7.8 (V-). ; ; ; Features ; ; ...More information

Producer

TYCON Power

Part No.

TP-POE-HP-24G

Code

00017715

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

87.74 EUR exc. VAT

VAT

21%

Your price inc. VAT

106.17 EUR inc. VAT

Ask for a better price

Description

TP-POE by Tycon Power Systems are quality sources that offer reliable operation even in the most demanding conditions.

Sources are fitted with shielded connectors and energy is supplied on unused pins 4.5 (V+) and 7.8 (V-). Power is supported to a distance of 100 m.

Sources have input controlled AC voltage in the range of 90-264 VAC (50/60 Hz) and supplies a controlled DC voltage at the output.

Part of the sources include overvoltage, short-circuit and overload protection.

properties

Parameters

Ethernet parameters
DC Output Voltage (V)	24
Input Voltage (V)	230
Ochrana proti podpětí	Ano
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	2
Output Power (W)	48
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	125
Design	Standalone
Height (mm)	38
Operating Temperature	-30° až +60°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	pasivní, Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
