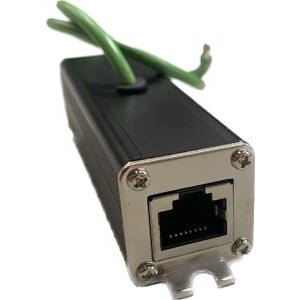

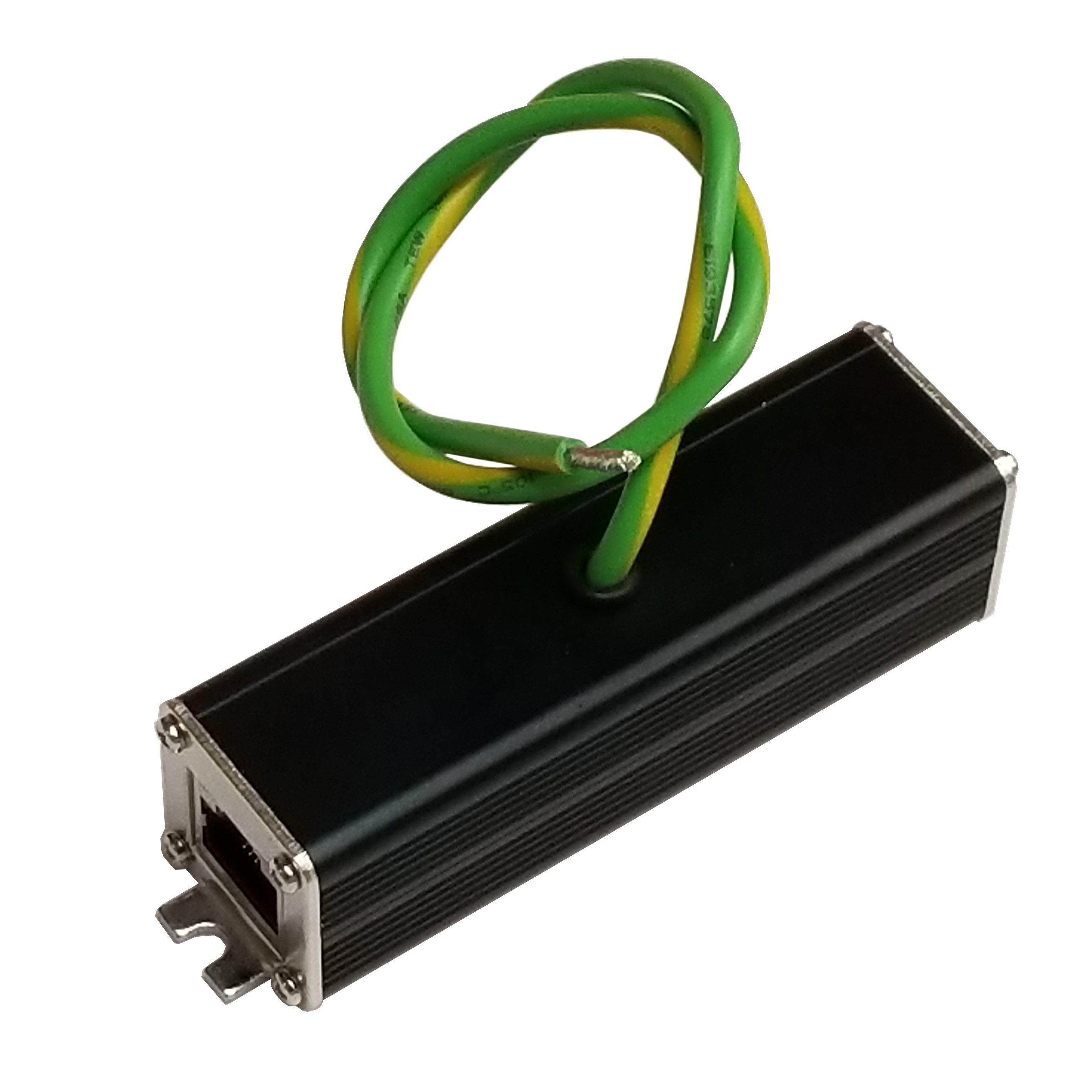

Tycon System TP-ESP-10G-POE, 10 Gbps Ethernet surge protector

Name: Tycon System TP-ESP-10G-POE, 10 Gbps Ethernet surge protector
Brand: TYCON Power
SKU: 58772
Price: 91.30 EUR
Availability: InStock

TP-ESP-10G-POE is a quality Ethernet surge protector that protects sensitive devices from overvoltage up to an impressive 10 kA and is compatible with 10 Gbps Ethernet networks. In terms of PoE power supply, it is compatible with IEEE802.3af/at/bt PoE ...More information

Producer

TYCON Power

Part No.

TP-ESP-10G-POE

Code

00073336

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

75.45 EUR exc. VAT

VAT

21%

Your price inc. VAT

91.30 EUR inc. VAT

Ask for a better price

Description

TP-ESP-10G-POE is a quality Ethernet surge protector that protects sensitive devices from overvoltage up to an impressive 10 kA and is compatible with 10 Gbps Ethernet networks. In terms of PoE power supply, it is compatible with IEEE802.3af/at/bt PoE and passive PoE standards. The all-metal body achieves better EMI suppression. The robust design makes them ideal for indoor or outdoor use inside a weatherproof enclosure.

TP-ESP-10G-POE is compatible with 100/1000/10000 Mbps Ethernet and PoE power up to 58V and can be also successfully used in pure data systems without PoE. Common mode and differential mode protection is provided on all 8 Ethernet wires. A grounding wire is included to connect to the grounding system. Surge protectors should be mounted as close as possible to the protected equipment. A DIN rail mounting kit is also available for mounting the surge protector on a DIN rail.

Properties:

Transmission speed 10/100/1000/10,000 Mb (10G)
Compatible with CAT5, CAT5e, CAT6, CAT6a
Compatible with 802.3af, 802.3at, 802.3bt and passive PoE
Compatible with PoE, PoE+ and PoE++
Shielded RJ45 connectors and all-metal housing
Operating range up to 90°C
Overload Protection
Conforms to IEC 61000-4-5

Parameters

Ethernet parameters
Network interface (Mbps)	10/100/1000/10000
Number od RJ45 ports	1
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní, 802.3at, 802.3af, 802.3bt
Powering
PoE	Yes
