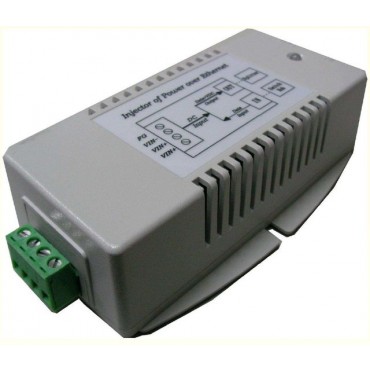

Tycon System TP-DCDC-4848GD-HP, inverter with PoE, 48V DC/56V DC, 35W

Tycon TP-DCDC-4848GD HP's HP-voltage converter with PoE port with power by 802.3. Input voltage 36-72VDC regulated at 56V/0.625. Source has two isolated inputs for redundant power supply. ; ; Application: ; 48V battery systems ; Wireles...More information

Producer

TYCON Power

Part No.

TP-DCDC-4848GD-HP

Code

00018888

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

104.95 EUR exc. VAT

VAT

21%

Your price inc. VAT

126.99 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-4848GD-HP is HP voltage converter with POE port with power supply according to standard 802.3at. The input voltage 36-72VDC is regulated at 56V/0.625A. The source has two insulated inputs for redundant power.

Use:

48V battery systems

wireless access points and client stations

security cameras, IP phones

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	48
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	0.35
Output Power (W)	35
Remote signalling	Ne
Network interface (Mbps)	10/100/1000, 1000
Physical parameters
Depth (mm)	85
Design	Standalone
Efficiency (%)	75
Height (mm)	36
Operating Temperature	-30° až +60°C
Weight (kg)	0.134
Width (mm)	76
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
