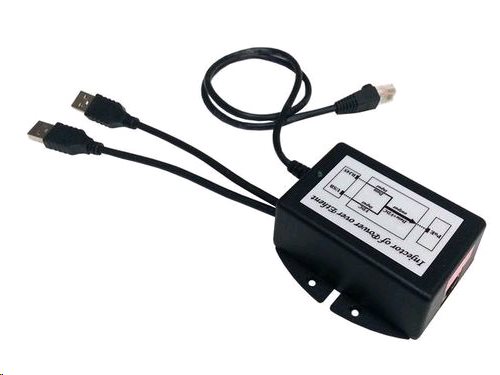

Tycon System TP-DCDC-2USB-24 USB to POE Power Injector

TP-DCDC-2USB-24 Tycon Power Systems is a unique 24VDC passive POE Injector powered from USB. Remote devices are powering after unused pairs on pins 4.5 (V+) and 7.8 (V-). Supported max distance is 100m.

source contains overvoltage protection, short-circuit protection and overload protection. TP-DCDC-2USB-24 has up to 12W output, depending on the USB input used. USB 2.0 ports have 5V/0.5A output, USB 3.0 ports have 5V/0.9A output and some newer USB ports have up to 5V/1.5A.

properties:

• remote power supply 24VDC passive POE via Cat5 cable from USB power
• to 12W passive 24VDC PoE
• Surge protection, short circuit and overload
• 10/100 Mbps compatible




Features:

USB input:

5V

poe voltage:

24VDC@0,5a

Output power:

12w

minimum efficiency:

72#i6per#

Cable length:

USB 100mm, Cat5 (500mm)

poe compatibility:

Passive poe, pins 4.5 (V+), 7.8 (V-)

protection:

overvoltage, against short-circuit, overload

Operating temperature:

-30-+50 ° C

Operating humidity:

5#i6per#-90#i6per#

Dimensions (mm):

85x 76 x 36

weight:

134g
