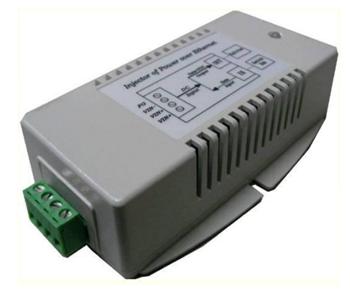

Tycon System TP-DCDC-1248GD-HP, inverter with PoE, 12V DC/56V DC, 35W

TYCON TP-DCDC-1248GD-HP is HP voltage converter with POE port with 802.3at. Input voltage 10-15VDC is regulated at 56V/0.625A. The source has two insulated inputs for redundant power supply.More information

Producer

TYCON Power

Part No.

TP-DCDC-1248GD-HP

Code

00017680

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

114.52 EUR exc. VAT

VAT

21%

Your price inc. VAT

138.57 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-1248GD-HP is an HP voltage converter with a PoE port with power according to the 802.3at standard. The input voltage 10 - 15VDC is regulated to 56V/ 0.625A. The source has two isolated inputs for redundant power supply.

Usage:

12V/ 24V/ 48V battery systems

Wireless access points and client stations

Security cameras, IP phones

Specifications:
Type:	TP-DCDC-1248GD-HP
Input voltage:	10 - 15 VDC
Output voltage:	56V (802.3at)
Input/output data connector:	Shielded RJ45
Output current (max):	0.625A
Output power:	35W
Operating consumption:	1W
Efficiency (min.):	75%
EMC standard:	FCC Class B EN55022 Class B
Operating temperature:	-30° - +60°C
Dimensions (mm):	125 x 75 38
Weight (g):	300

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	12
Output Current (A)	0,625
Output Power (W)	35
Network interface (Mbps)	10/100/1000, 1000
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Operating Temperature	-30° až +60°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
