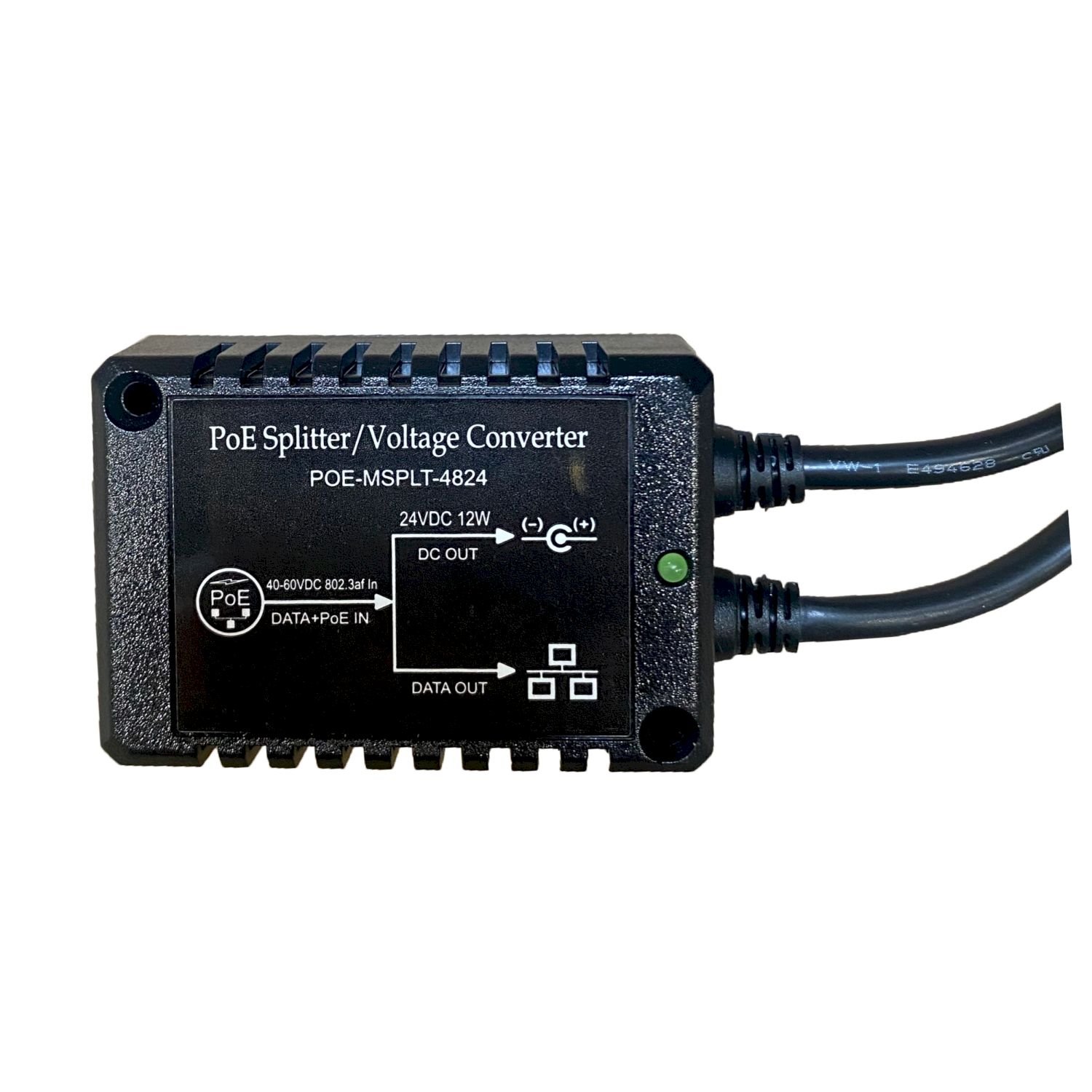

Tycon System POE-MSPLT-4824, PoE Splitter, 24V DC, 12W

PoE Splitter divides 12W 24VDC from any standard POE source. It is compatible with 802.3AF/AT standards and passive 48V DC POE sources.More information

Producer

TYCON Power

Part No.

POE-MSPLT-4824

Code

00030557

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

57.89 EUR exc. VAT

VAT

21%

Your price inc. VAT

70.05 EUR inc. VAT

Ask for a better price

Description

<DIV Style ="Text-Align: Justify"> The Poe-MSPLT-Males Dynamic Splitters are compact adapters powered via Ethernet, which distribute data and POEs to supply separate output connectors and convert active POE (IEEE802.3AF/AT) into a controlled DC output voltage.
The DC output is ensured on a standard 5.5mm/2.1mm connector and the data output is ensured on the standard RJ45 network connector, each on a reserved 6"cable. In addition to compatible with Ethernet 10/100 MB, inputs and outputs contain short circuit protection.
USB to power smartphones and tablets from the POE device, such as network switches or injectors POE.

Parameters

Ethernet parameters
DC Output Voltage (V)	24
Input Voltage (V)	48
Insulation strength	15 kV
Ochrana proti zkratu	Ano
Output Current (A)	0.5
Output Power (W)	12
Network interface (Mbps)	10/100
Physical parameters
Depth (mm)	65
Design	Standalone
Efficiency (%)	75
Height (mm)	26
Operating Temperature	-25° až +50°C
Weight (kg)	0.06
Width (mm)	45
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní, 802.3af, 802.3bt
Powering
PoE	Yes
Typ zdroje	PoE
