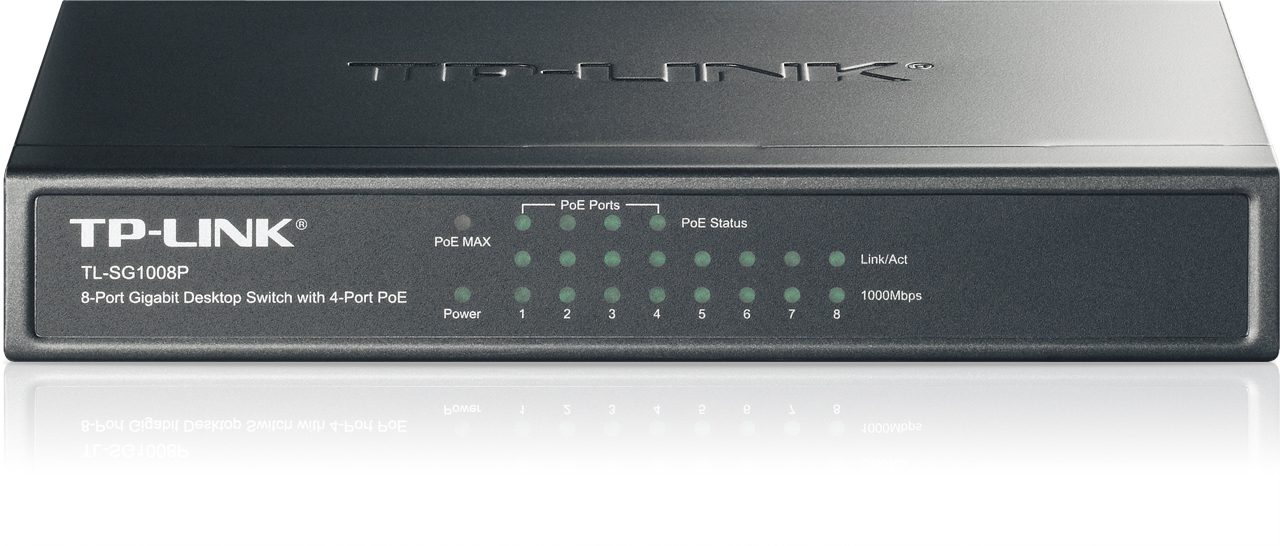

TP-LINK TL-SG1008P, Switch, 8x 10/100/1000Mbps

The 8-port table switch with 4 PoE ports provides trouble-free network connection. Offers a gigabit ethernet with a speed of 1,000 Mbit/s and a Fast Ethernet 10/100 Mbit/s.

4 of the 8-porting RJ45 with automatic negotiation (ports 1-4) support the Ethernet (POE) power function. These PoE ports can automatically detect and power the IEEE 802.3AF device. In this case, electricity is transmitted together with data in one cable. This allows you to expand your network outside the power lines or sockets where you want to place access points, IP cameras, IP phones, etc.

The TL-SG1008P has a priority function*that helps protect the system power in case of overload. When the consumption of all devices powered via Ethernet (POE)> \u003d 53W, the priority will be divided between POE ports; Then the system disconnects the port power supply with the lowest priority.

*Priority (Port 1> Port 2> Port 3> Port 4): This function helps to protect the system when the system power is converted. For example, when ports 1, 2 and 4 take 15.4 W (maximum port collection is 15.4 W), the power supply of the system is 46.2 W (the red LED maxima POE). If you connect another powered device to port 3 with 10 W collection, then the system disconnects Port 4 to protect the system. This means that ports 1 and 2 will take 15.4 W and port 3 will take 10 W and port 4 will not be powered at all.

The TL-SG1008P is characterized by easy installation and operation. It does not require any installation or configuration. Thanks to the desktop design, exceptional performance and quality, the 8-port TP-Link TL-SG1008P with 4 PoE PoEs is a great choice to expand your home or office network.

parameters:

name	value
No fan:	Yes
Gigabit LAN:	All ports
depth[mm]:	98
LAN:	(8) 10/100/1000Mbps
Max. Energy consumption[W]:	5,8
Power:	48V/1,25A
Number of LAN ports:	8
Number of PoE ports:	4
Supported PoE Standards:	802.3AF
poe budget[W]:	60
operating temperature[° C]:	0 to 40
Switch speed[Gbps]:	16
chassis:	metal
width[mm]:	171
MAC Address Table:	8000
Power type:	DC connector (jack)
height[mm]:	27

Package content:

device

power cable

power adapter
