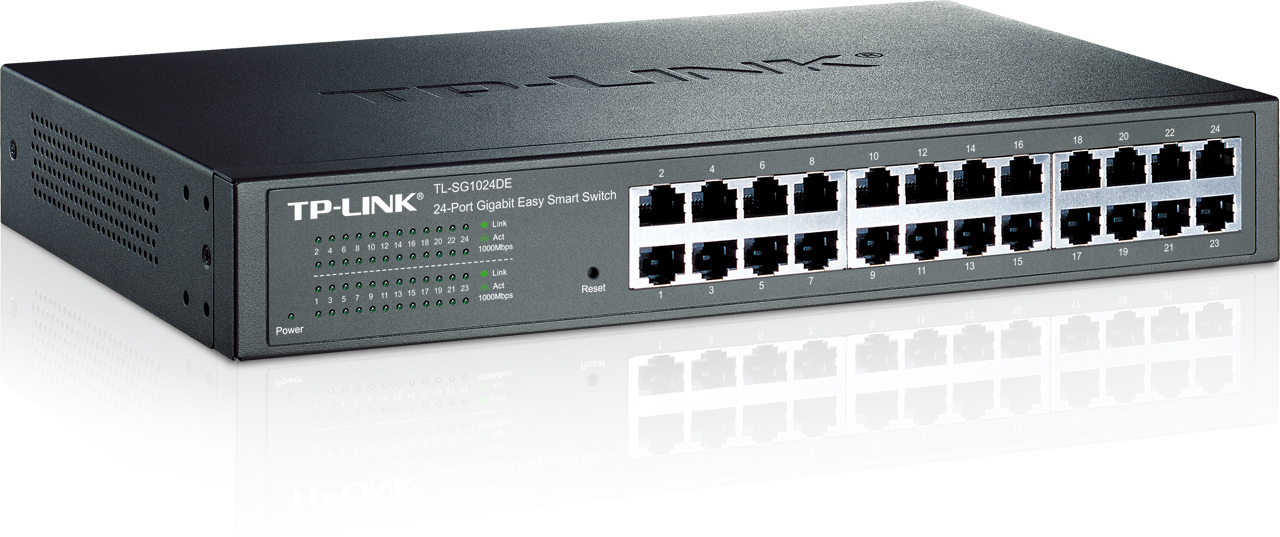

Switch TP-Link TL-SG1024DE smart 24x GLan

TP-Link TL-SG1024DE is 24 port gigabit switch that allows create virtual networks VLAN in the 802.1Q standard to It ensures backward compatibility with equipment from other manufacturers. It contains a number of advanced features that will speed up your network and reduce the risk a minimum of network attack. In switches it is possible to set priorities either For individual ports Or even for individual devices meeting the standard 802.1p. Advantage The device is the possibility of cheap version gigabit switch, holder for Mounting to seagull 19" and status LEDs thanks by which the current network and switch status can be monitored.

parameters:

Standards and Protocols: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Interface: 24 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

network media:

10base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100, Stp (maximum 100 m)
100base-TX: UTP category 5, 5E cable (maximum 100m) EIA/TIA-568 100, Stp (maximum 100 m)
1000Base-T: UTP category 5, 5e, 6 or higher cable (maximum 100 m) EIA/TIA-568 100, STP (maximum 100 m)
Size (W x H x H): 294 x 180 x 44 mm
Fan: No
Power: 100-240 V AC, 50 /60 Hz

Power:

switching Capacity: 48 Gb/s
MAC address table: 8k
Packet buffer memory: 512 kb
Packet transfer speed: 35.7 MPPS
Jumbo frame: 10240 apartments

Quality Services:

Port-based support
Priority based on 802.1p
Support 4 priority queues

L2 Function:

IGMP Snooping
Link Aggregation
Port mirroring
Diagnostics of cables
Prevention of the loop

VLAN: Supports up to 32 VLAN (outside 4K VLAN ID), MTU/Port/Tag Vlan
Transfer method: Store-and-Forward
Certification: FCC, Ce
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ Windows 7 Or Windows 8, Mac® OS, Netware®, Unix® or Linux

Package content:

TL-SG1024de
Power cable
Installation Manual
Cd
Rackmount Kit
Rubber legs
