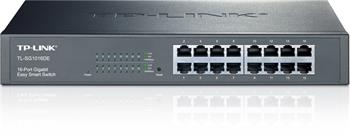

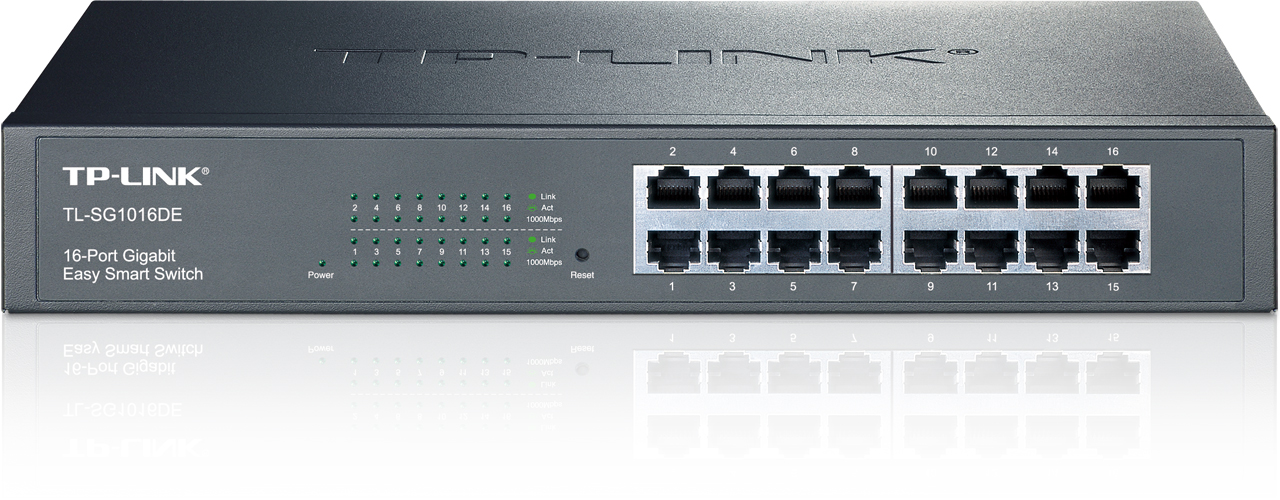

Switch TP-Link TL-SG1016DE smart 16x GLAN

TP-Link TL-SG1016DE is 16 port gigabit switch that allows create virtual networks VLAN in the 802.1Q standard to It ensures backward compatibility with equipment from other manufacturers. It contains a number of advanced features that will speed up your network and reduce the risk a minimum of network attack. The device allows you to set priorities either For individual ports Or even for individual devices meeting the standard 802.1p. Advantage The device is the possibility of cheap version gigabit switch, holder for Mounting to seagull 19" and status LEDs thanks by which the current network and switch status can be monitored.

parameters:

Standards and Protocols: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

network media:

10base-T: UTP Category 3, 4, 5 Cable EIA/TIA-568 100, Stp (maximum 100 m)
100base-TX: UTP category 5, 5E cable EIA/TIA-568 100, Stp (maximum 100 m)
1000Base-T: UTP category 5, 5e, 6 or higher cable EIA/TIA-568 100, STP (maximum 100 m)

Power:

switching Capacity: 48 Gb/s
MAC address table: 8k
Packet buffer memory: 512 kb
Packet transfer speed: 23.8 MPPS
Jumbo frame: 10240 apartments

Quality Services:

Port-Based/802.1P/DSCP Priority Support
Support 4 priority queues
Storm Control

L2 Function:

IGMP Snooping
Link Aggregation
Port mirroring
Diagnostics of cables
Prevention of the loop

VLAN: Supports up to 32 VLAN (outside 4K VLAN ID), MTU/Port/Tag Vlan
Transfer method: Store-and-Forward
Size (W x H x H): 294 x 180 x 44 mm
Fan: no
Power: 100-240 V AC, 50 /60 Hz
Certification: FCC, Ce
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista ™ Windows 7 Or Windows 8, Mac® OS, Netware®, Unix® or Linux

Package content:

TL-SG1024de
Power cable
Installation Manual
Cd
Rackmount Kit
Rubber legs
