Smart PDU NETIO PowerCable 2KZ

Netio PowerBox 2Kz is on LAN and wifi controlled smart PDU with 2 outputs. Each output can be turned on and off via the product interface. Electric quantities (A, W, KWH, TPF) with high accuracy are measured at each output. The materials used andMore information

Producer

NETIO

Part No.

PowerCable 2KZ

Code

00072937

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

196.63 EUR exc. VAT

VAT

21%

Your price inc. VAT

237.92 EUR inc. VAT

Ask for a better price

Description

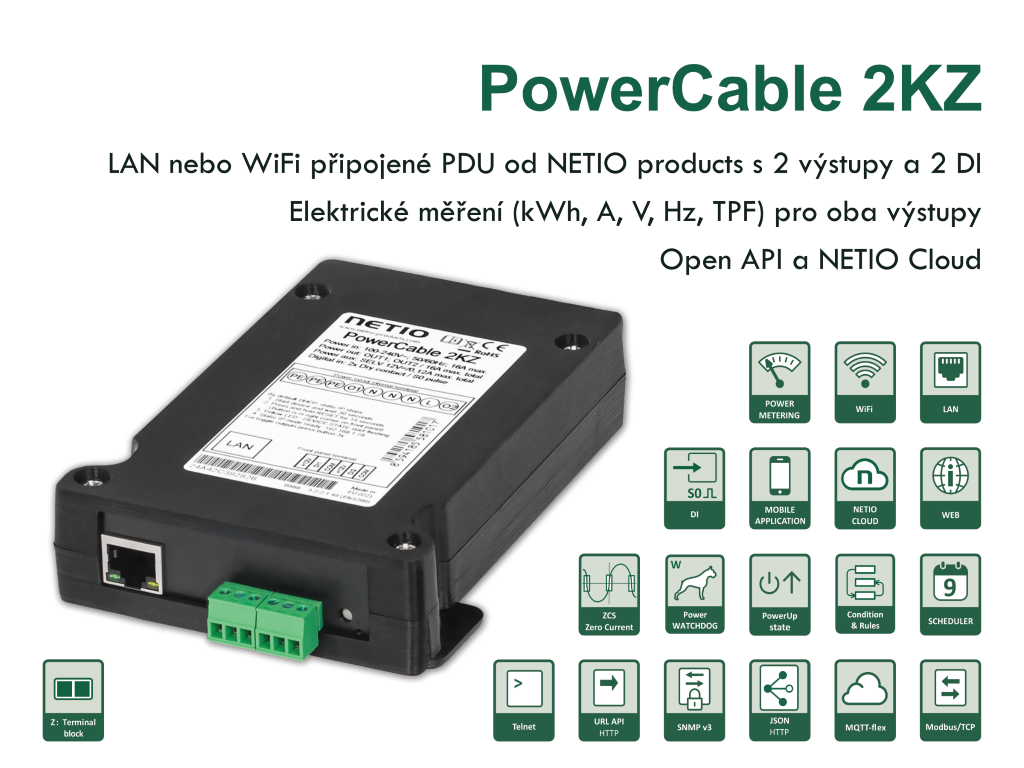

Netio PowerBox 2Kz is on LAN and WiFi controlled smart PDUs 2 outputs . Each output can be turned on and off via the product interface. Electric quantities (A, W, KWH, TPF) with high accuracy are measured at each output. The materials and temperature ranges of the equipment predetermine for use in industries. Both outputs are extended with DI (digital inputs) that can be used to connect movement sensors or S0 meters outputs. With compact dimensions, PDUs can be easily installed, for example, for screens, ceilings or other less accessible places.

Simply controlable
Netio PowerBox 2KZ smart power outlets allow you to control the web and support Netio Cloud. Supported protocols can be used for Open API communication (complete list V datasheet ) The logs are documented on the manufacturer's website. Each of the two electrical outputs can be turned on/off from the product website. The manufacturer supplies the mobile application, but thanks to the open API you can also use the recommended third-party mobile applications.

Web interface can be tested at http://powercable-2kz.netio-products.com/ (demo). Using Netio Cloud , outputs can be controlled from anywhere. Netio Cloud is a paid service, but uses SSL security and servers are located in Europe. As part of the new device, you can try 3 annual trial version free of charge.

gentle
IOC (Independent Output Control), Output status is not affected by LAN of the connection, restarting the network layer or firmware upgrade.

Unique support ZCS is important for long-term switching on and off the connected electrical equipment than several times a day. ZCS ensures the switching and opening of the switching relay at passage of the current zero . ZCS is gentle to connected electrical equipment, which extends their life. This is particularly suitable for electrical appliances with high current on current (inrush current). High switching current is typical of switching sources enhanced in IT, but also in LED lighting and other applications.

The Scheduler function turns off and on each electric output (110/230V max 16A) separately at the set time and day of the week. The delaying function will protect the electric circuit breaker after power failure. The PowerUP State parameter can define the status of each output immediately after power on (ON/OFF/LAST).

Application Examples:

Remote restart of non-matching devices thanks to Ping or Power Watchdog
remote monitoring of energy consumption in one or two branches of the circuit.
Connecting a pulse output of a 3-phase meter to IN1 or IN2 to measure electricity consumption above 16A.
Control of electric bikes, ships and other appliances up to 3.6 kW.

parameters:

name	value
LAN:	1x RJ45
wifi:	Yes
consumption measurement:	Yes
Watchdog:	POWER + PING
di (digital input):	Yes, 2x
Web:	Built-in Web Server
Mobile App:	Yes (Android, iOS)
M2M API protocols:	MODBUS/TCP, MQTT-FLEX (PLIN/TLS), Telnet, HTTP URL API, HTTP JSON, HTTP XML, SNMP V1/V3
LUA support:	No
Power input:	terminal block (2.5mm), 100-240 VAC (50/60 Hz)-max 16 and
Mechanical power switch:	No
Power output:	2x 230V/16A
ZCS (switching output when passing through the current zero):	Yes
Dimensions:	125 x 73 x 204 mm
PowerUP State	ON/OFF/LAST STATE
Acoustic output:	No
Temperature range:	-20 ° C to +55 ° C
Custom Consumption of Device:	1-2 W
