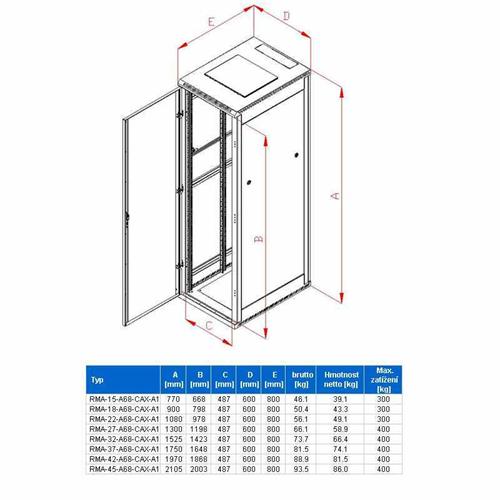

RACK Triton, 19", 15U, 600x800mm, stand-RMA-15-A68-CAX-A1

The hinge system itself allows the door to open at an angle of almost 180 °. The door can be easily removed and converted to opening to the opposite side.
19 “Vertical moldings can be smoothly set at any depth of the switchboard. This facilitates the installation of equipment and organization of connecting cables.
RMA is a switchboard with welded skeleton and removable sidewalls. These are, like the back cover of the skeleton, the locks are fitted with a standard key.

parameters:

name	value
Type:	Stand
pitch:	19"
Covering:	IP 20
doors:	glazed
sidewall:	Removable
height:	15U
width (mm):	600
depth (mm):	800
height (mm):	770
Color:	gray
Weight (g):	39 100
Max. Load (G):	300 000
Material:	Safety hardened glass thickness. 4 mm, steel sheet

Package content

key-removable covers 2x

key-front door 2x

Floating nuts M6 16x

Anti-draft plug 1x

rectification bolt/foot for switchboard 4x

matrix M10 4x
