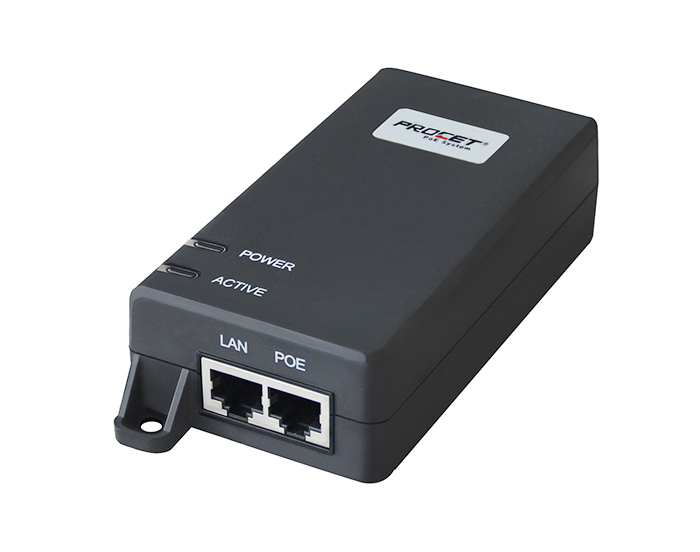

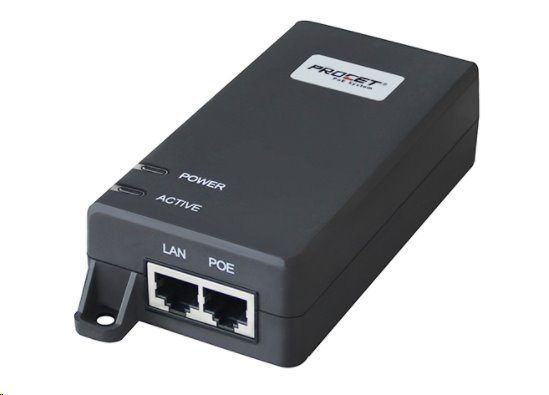

PROCET PT-PSE101G-AT, Gigabit PoE source, 55V/0.5A, 30W

Name: PROCET PT-PSE101G-AT, Gigabit PoE source, 55V/0.5A, 30W
Brand: PROCET
SKU: 49570
Price: 21.86 EUR
Availability: InStock

The 802.3AT PoE standard with 1 Gbps interface enables power supply to a device with an output of up to 30W.More information

Producer

PROCET

Part No.

A500001708

Code

00070200

Availability

Availability in stores

Order

Your price exc. VAT

18.07 EUR exc. VAT

VAT

21%

Your price inc. VAT

21.86 EUR inc. VAT

Ask for a better price

Description

The Procet PT-PSE101G-AT PoE adapter is a reliable and robust solution for powering a variety of network elements using the PoE 802.3at standard . It is especially suitable for powering IP cameras, VOIP phones, WiFi access points or other wireless technologies. It fully supports Gigabit Ethernet and allows you to power a connected device with a power of up to 30 W.

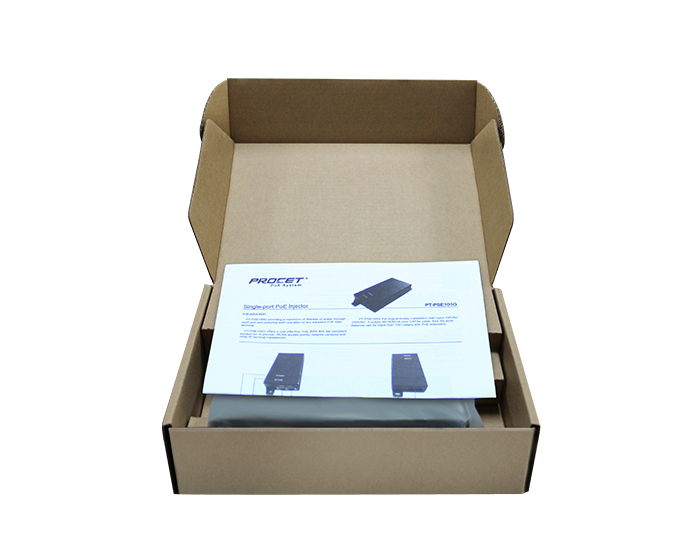

Thanks to the mounting holes and compact size it is not a problem to simply place the device on a mounting plate in a cabinet or mount it directly on the wall. The package includes a connecting cable with an EU terminal..

Features:

Ethernet standard: 10/100/1000 Mbps Ethernet
PoE standard: IEEE802.3af/at - 4/5 (), 7/8 (-)
Output voltage: 55 V
Output current: 550 mA
Input voltage: 100-240 VAC / 50-60 Hz
AC input protection: 1.5 kA (8 / 20us) / 3 kV (1.2 / 50us)
Temperature range: -5 to 45 ° C
Dimensions: 140 x 63 x 33 mm
Weight: 191 g

Parameters

Ethernet parameters
DC Output Voltage (V)	55
Input Voltage (V)	230

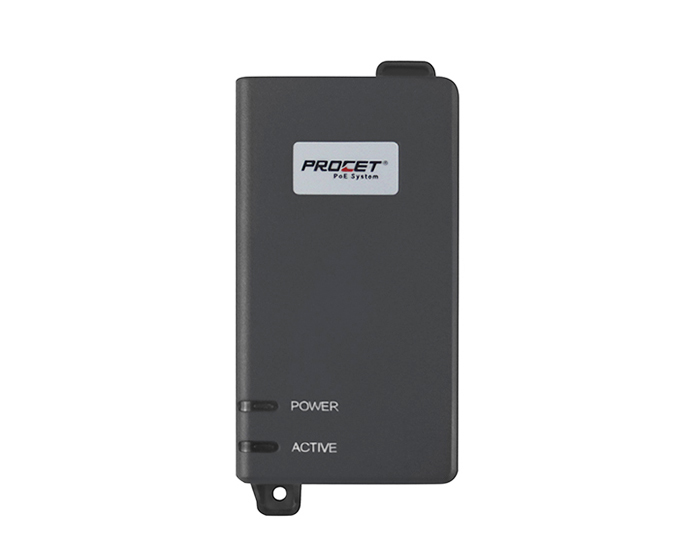

Local signalling	LED
Output Current (A)	0.55
Output Power (W)	30
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	140
Design	Standalone
Height (mm)	33
Operating Temperature	0° až 40°C
Weight (kg)	0.2
Width (mm)	63
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
