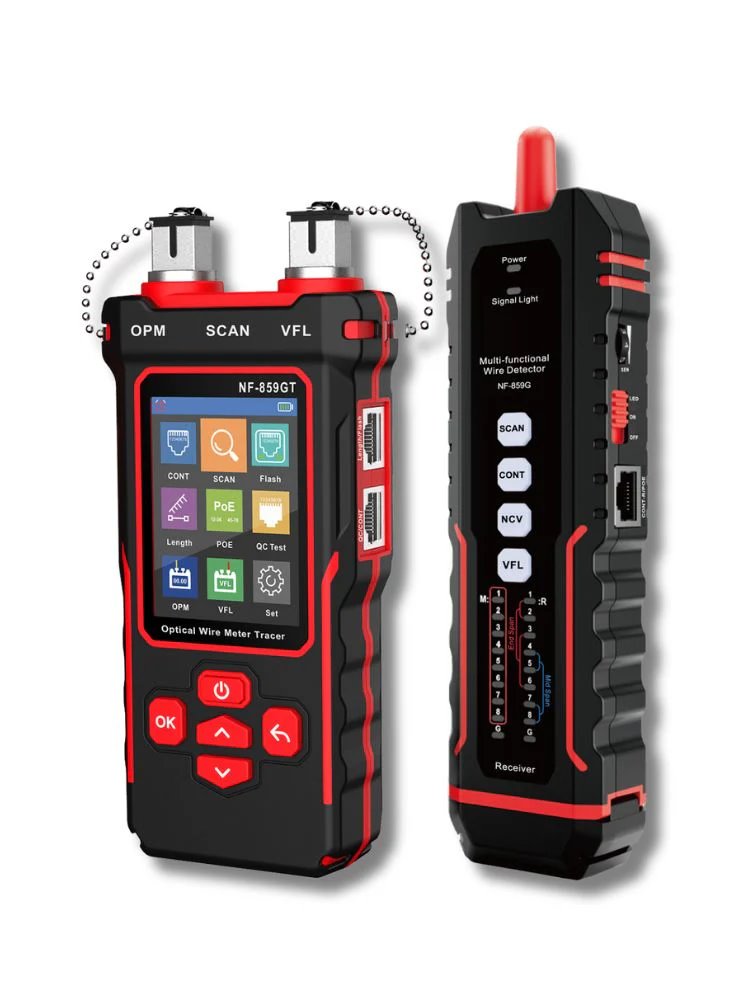

NOYAFA NF-859GT Optical Power Meter &VFL &Ethernet Tester

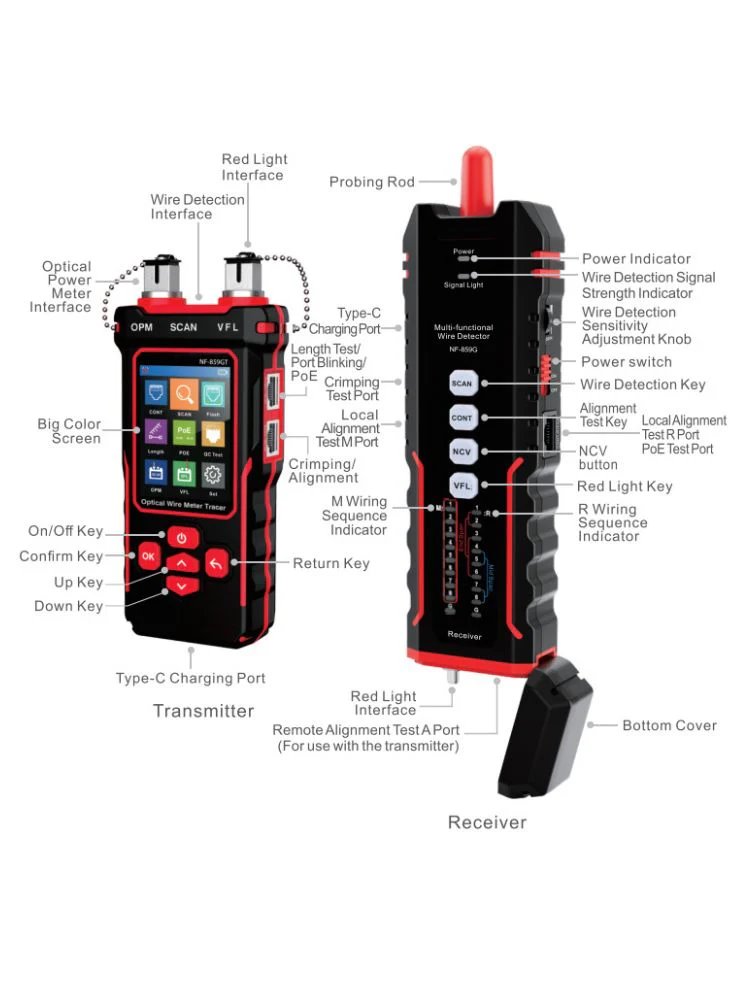

Noyafa NF-859GT is a multifunctional tool for measuring optical and metallic with a clear color display .

Optical Powermeter is designed for measurement of accepted power for SM and mm fibers at 850/1300/1310/1490/1550/1625 Nm in the range of-70 to +10dbm. A skillful tool is also a red laser ( Visual Fault Locator ) with which you can easily identify a broken or damaged fiber or poorly executed weld.

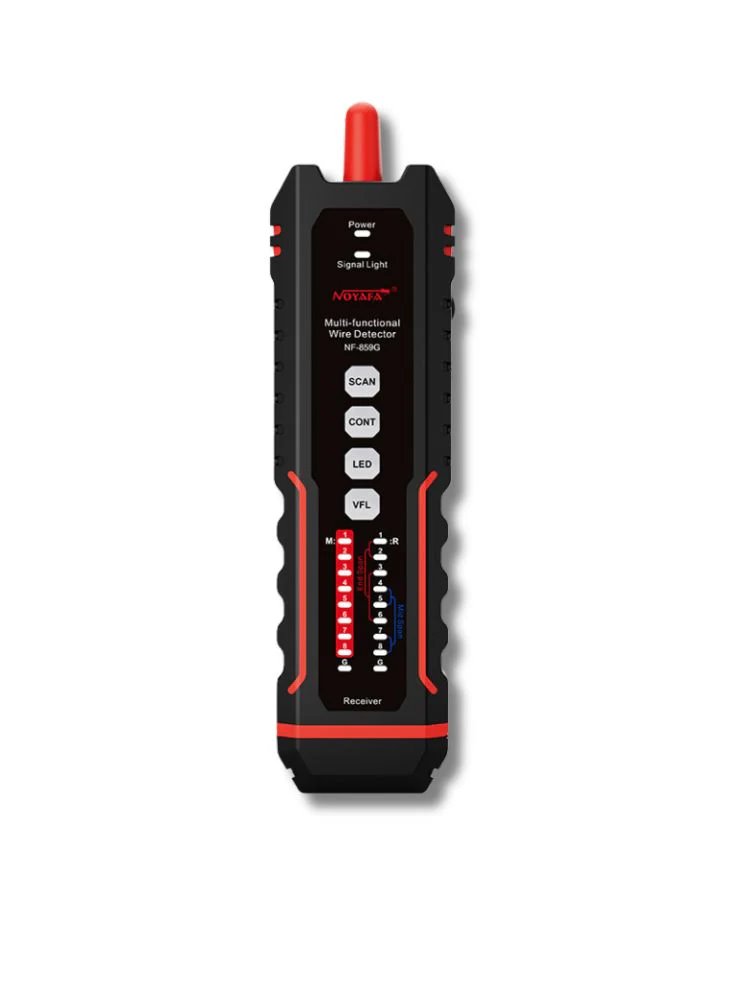

The metallic tester is an advanced solution for identifying the status of Ethernet cables, their length and POE power. It allows simple detection of interrupted, short-circuited or poorly connected cable . At the same time, it allows you to identify the presence and type of PoE power (802.3af/at), voltage in individual pairs, its size or polarity. With a cable tracing function and probe , which is included, it is possible to easily find the desired Ethernet cable without having to connect or connect it for measuring. Compared to the previous NF-8508, the probe is newly equipped with the Wiremapping function.
