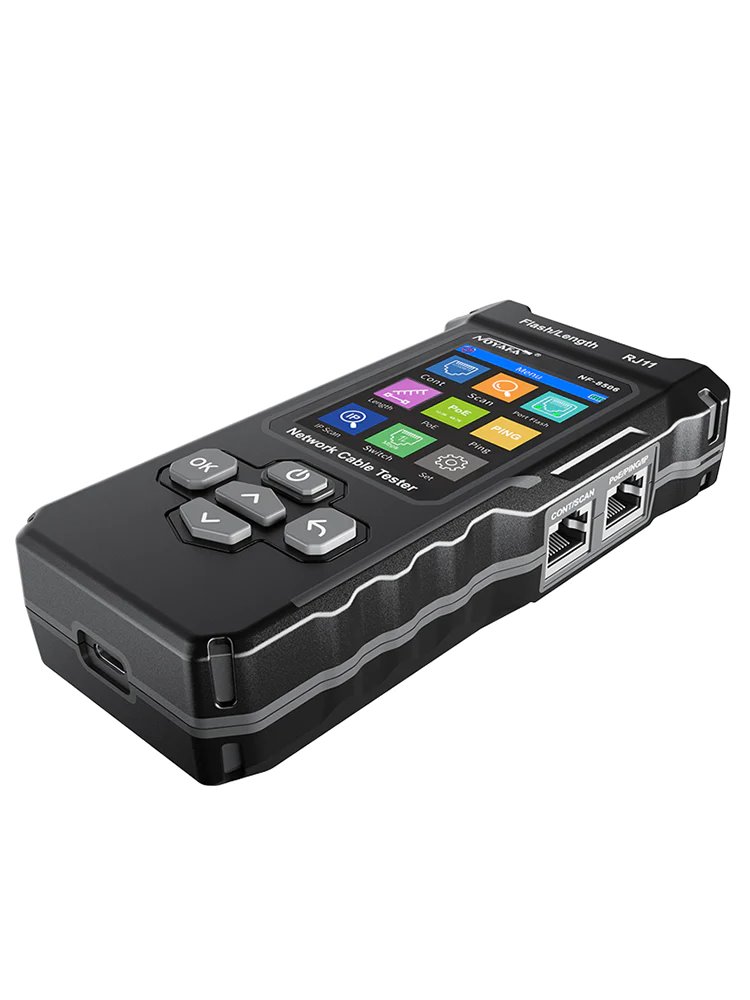

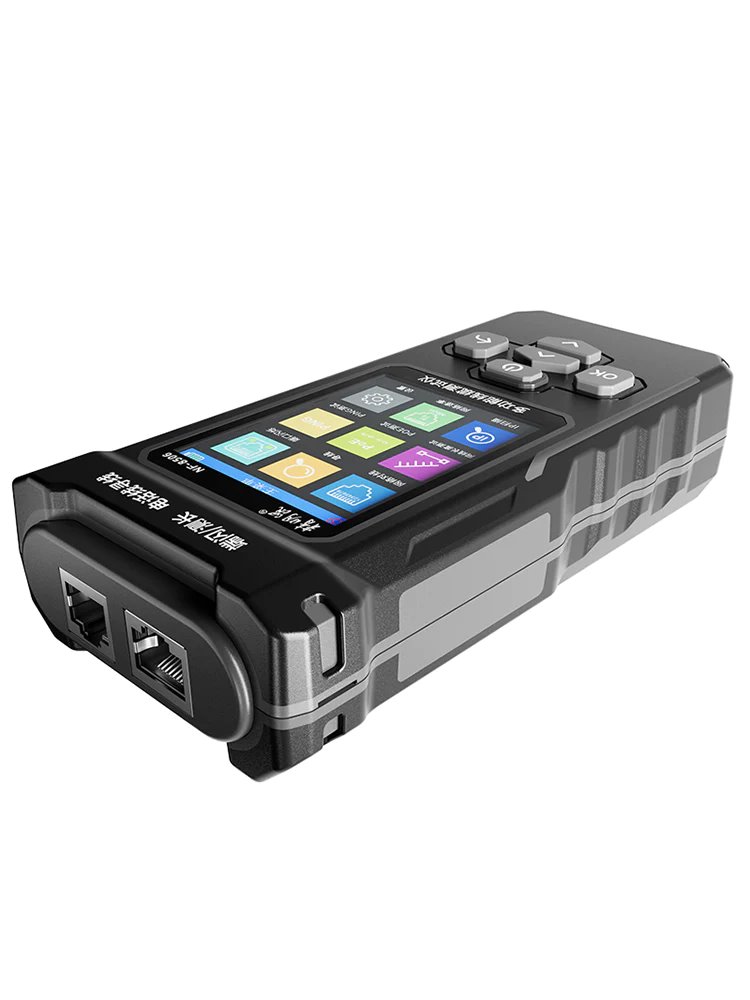

NOYAFA NF-8506, Eth cable tester, PoE, IP test, probe included

The Noyafa NF-8506 is an advanced solution for detecting the Ethernet cables , PoE and allows basic IP diagnostics . It allows easy detection of interrupted, short-circuited or poorly connected cable. At the same time, it allows you to identify the presence and type of POE power (802.3af/at), voltage on individual pairs, its size or polarity. Thanks to the function for tracing the cable and the probe included in the package, it is possible to simply find the desired Ethernet cable without the need to connect or connect it for measurement. From IP features, IP Scan features fast scanning available IP addresses , ping and detecting the port speed .

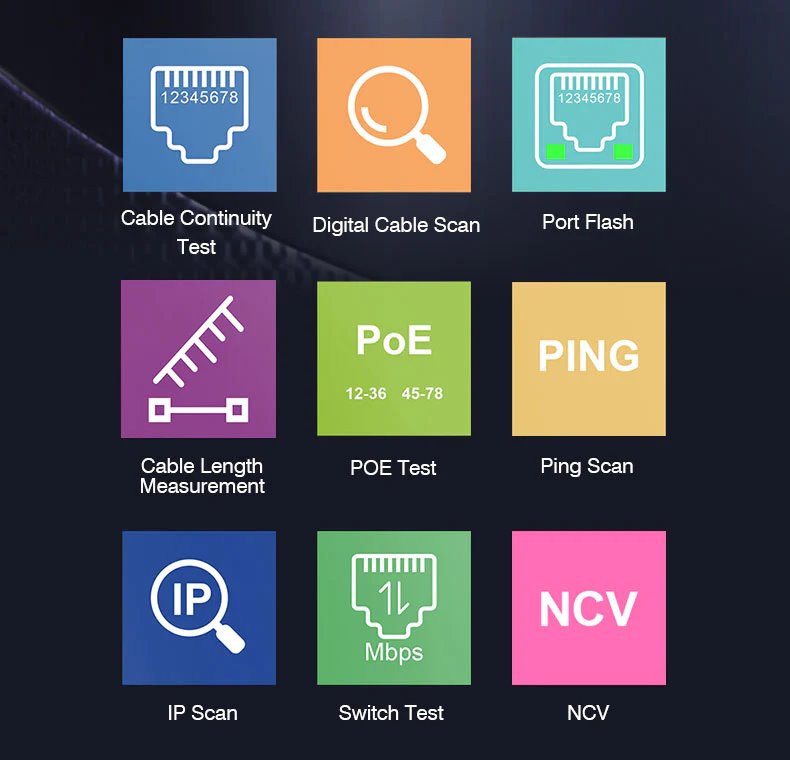

• Measurement of Ethernet Cable Connection and PoE Power
• IP Scan, Ping, Port Speed
• interface RJ45

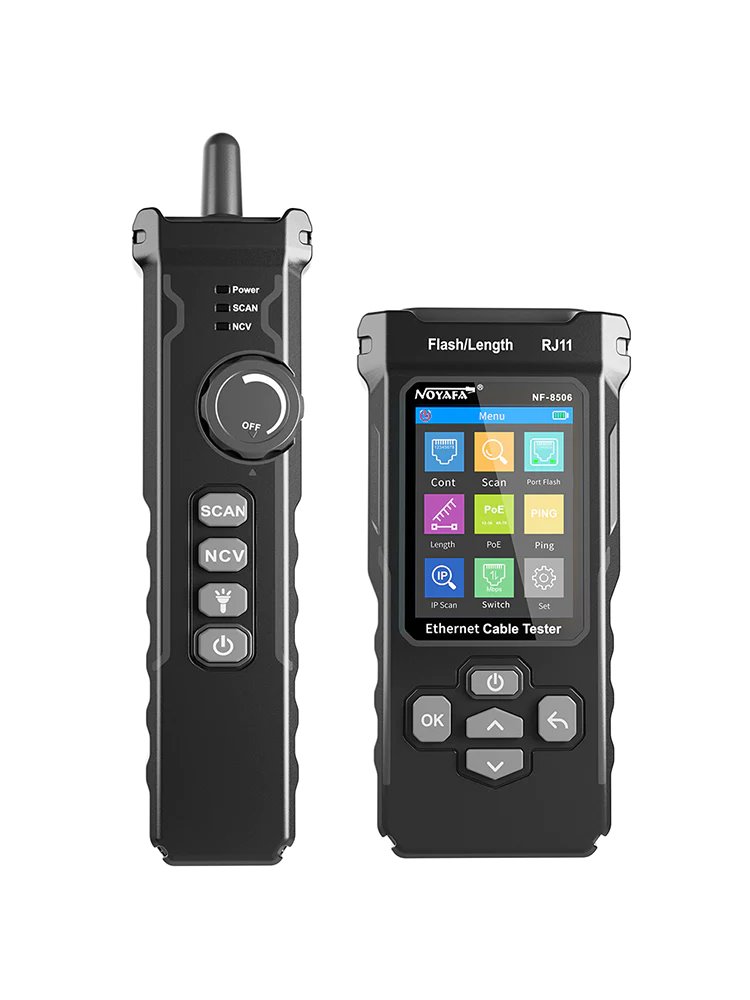

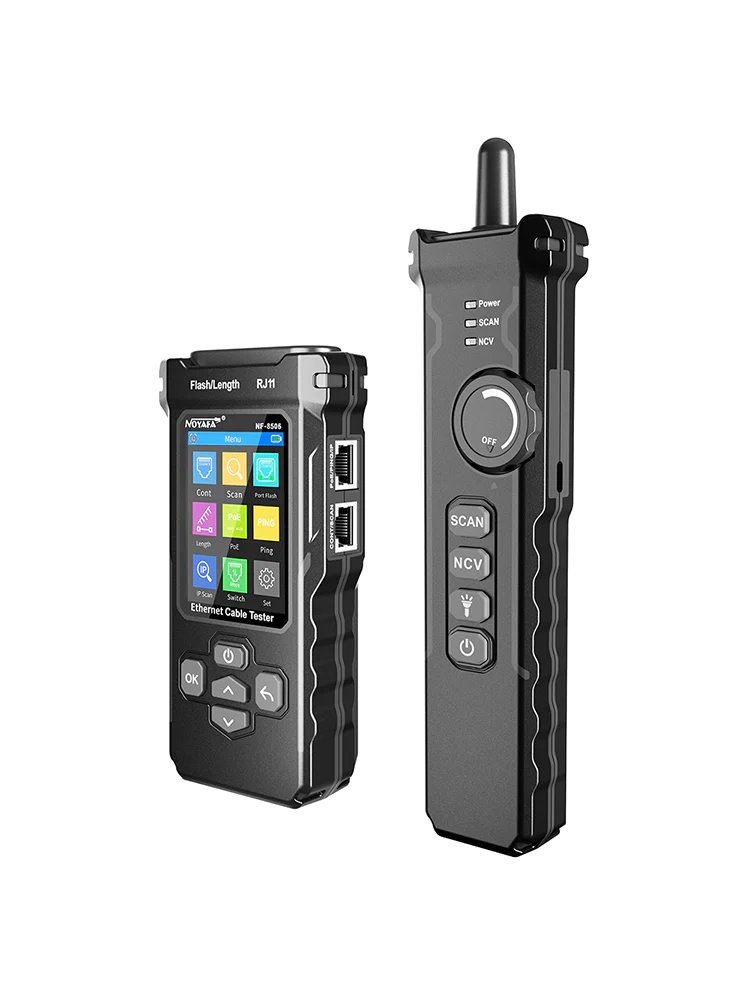

• Including a remote loop and probe for cable location
• automatic cable continuity test, short circuit, interruption and correct wiring pairs of twisted cables
• Automatic POE Power Test in the 5-60 V/0-18W
• clear display on the graphical LCD display
• Integrated memory
• Automatic shutdown after 30 minutes without operation

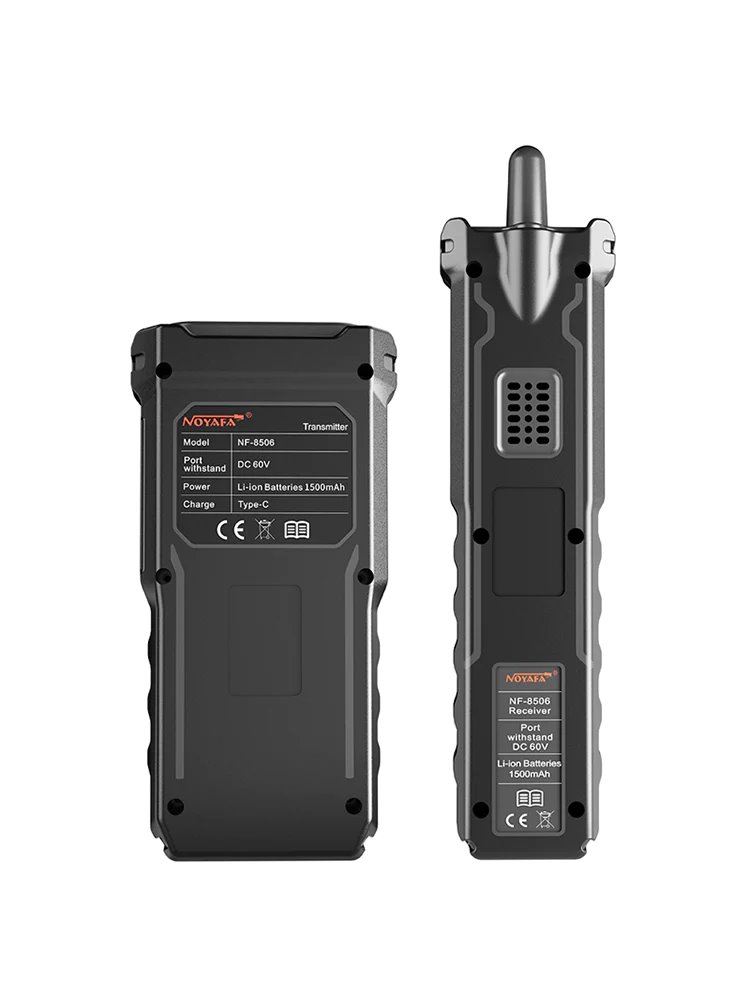

• Integrated battery, charging using USB-C

parameters:

name	value
Model:	Noyafa NF-8506
View:	Graphic LCD display
for cables:	STP/UTP Twin twisted cable
Operating temperature (° C):	-10 to 60
Twin twisted cable test:	1 ~ 300 m
Power supply	Integrated Lion Battery, USB-C charging
Color:	black
Dimensions (mm):	185 x 80 x 32
Weight (g):	215

Package content:

• 1x Noyafa NF-8506

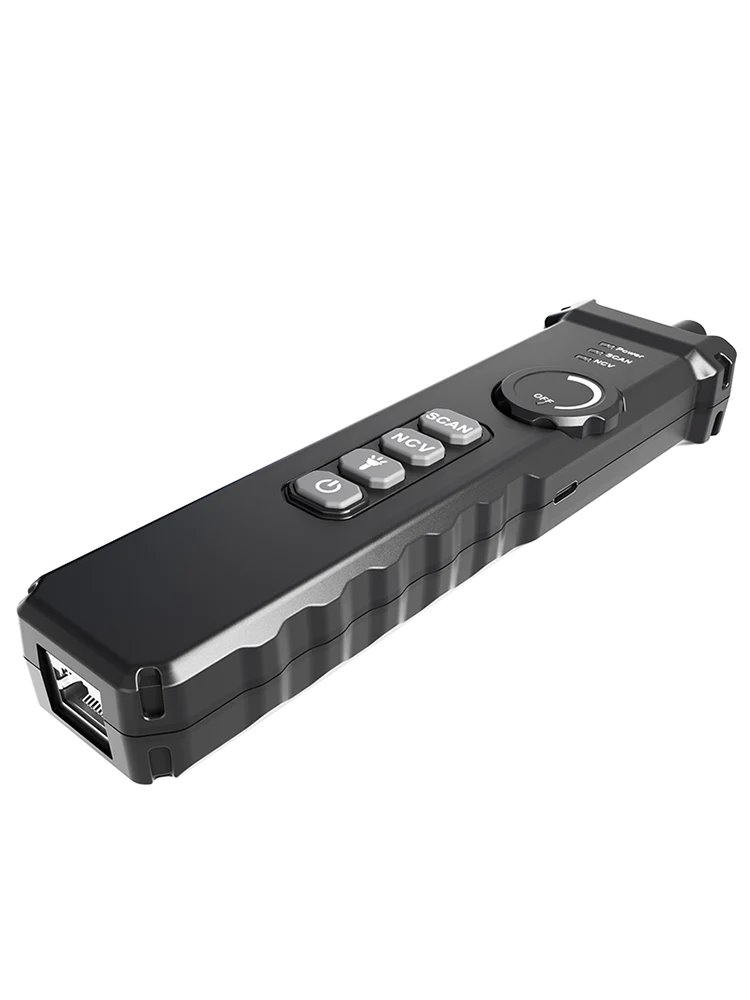

• 1x probe for cable search
• 1x distant loop
• 1x phone line adapter
• 1x bag
