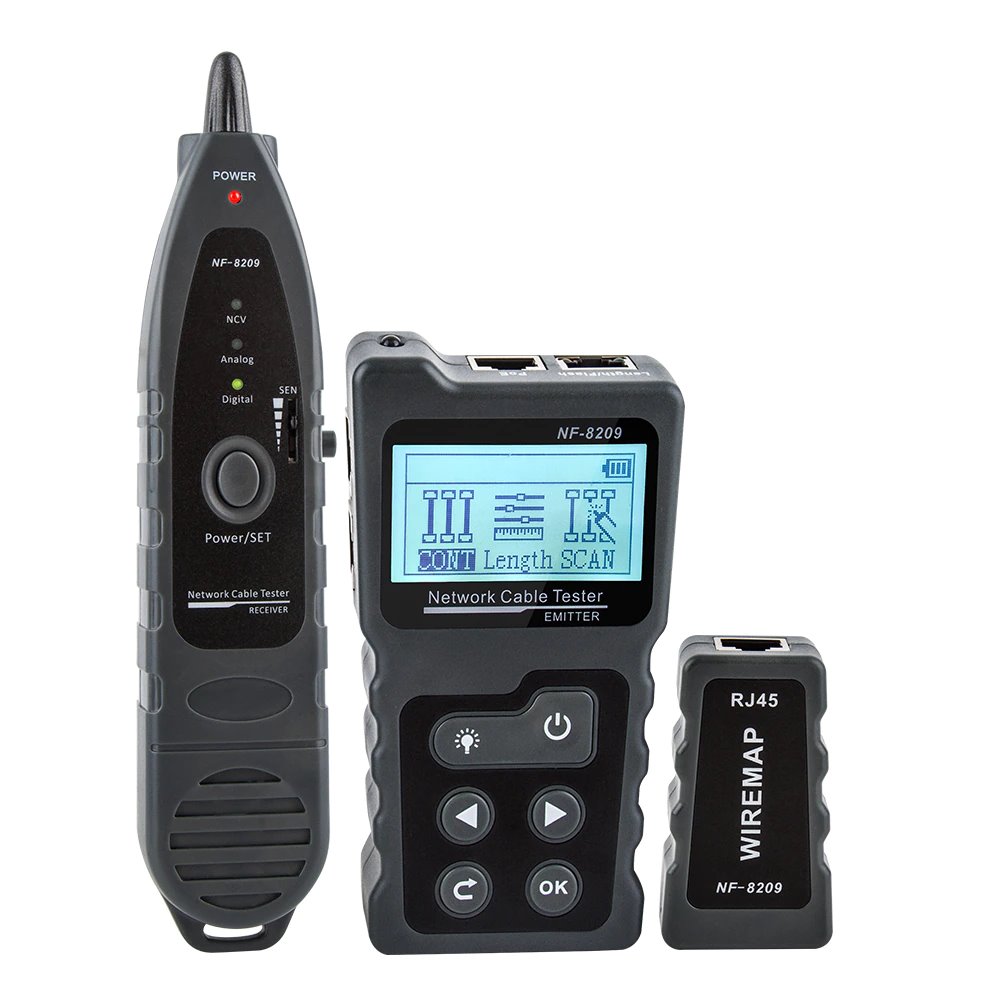

NOYAFA NF-8209, Ethernet cable and PoE power tester, including probe

The Noyafa NF-8209 tester is an advanced solution for identifying the status of Ethernet cables and POE power. It allows easy detection of interrupted, short-circuited or poorly connected cable. At the same time, it allows you to identify the presence and type of POE power (802.3af/at), voltage on individual pairs, its size or polarity. Thanks to the cable and the probe, which is included in the package, you can easily find the desired Ethernet cable even without the need to connect or connect it for measurement.

• Measurement of Ethernet Cable Connection and PoE Power

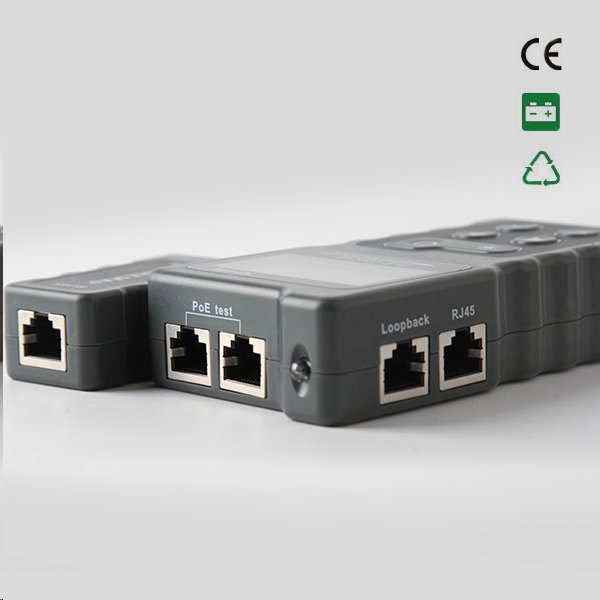

• interface RJ45
• Including a remote loop and probe for cable location
• automatic cable continuity test, short circuit, interruption and correct wiring pairs of twisted cables
• Automatic POE Power Test in the 5-60 V/0-18W
• clear display on the graphical LCD display
• Integrated memory
• Automatic shutdown after 30 minutes without operation

parameters:

name	value
Model:	Noyafa NF-8209
View:	Graphic LCD display
for cables:	STP/UTP Twin twisted cable
Operating temperature (° C):	-10 to 60
Twin twisted cable test:	1 ~ 300 m
Power supply	3 x AAA batteries (not included)
Color:	gray
Dimensions (mm):	185 x 80 x 32
Weight (g):	215

Package content:

• 1x Noyafa NF-8209
• 1x probe for cable search
• 1x distant loop
• 1x phone line adapter
• 1x bag
