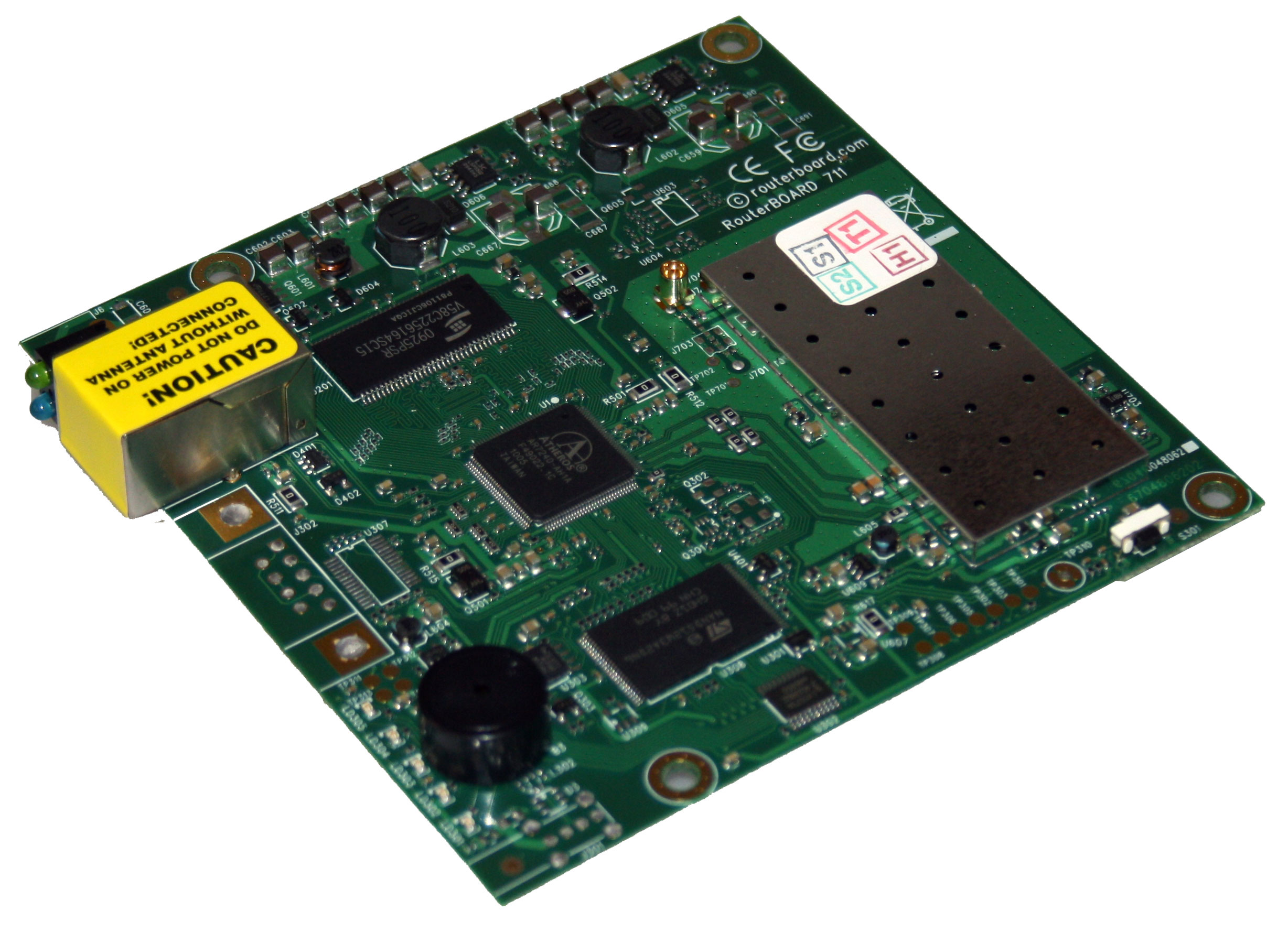

Mikrotik RouterBoard RB711-5Hn-U, 32MB, 1xLAN, U-FL

RouterBoard Mikrotik RB711-5Hn-U with Atheros AR7420 400 MHz clocked with integrated 5GHz 802.11a/n card is the ideal solution for both MIMO and MIMO client stations. The board is free of miniPCI slot, serial port, and power is ONLY over Ethernet PoE. RouterOS Level 3 (Client, Bridge) is predetermined for client units, the board has the same dimensions as RB411. RB711 is a Ubiquiti WISP variant but adds MIMO technology support.

Main Features:

• Processor: Atheros AR7240, 400 MHz
• SDRAM: 32 MB
• NAND memory: 64 MB
• Integrated 5 GHz 802.11a/n Atheros AR9280 chipset
• Output power: +23 dBm
• Support for 802.11n
• Speaker: Integrated on the board
• LED Signaling: Power LED, User LED

Software:

• MikroTik RouterOS v4 Level 3 WISP (Client, Bridge) preinstalled, activated

Sensitivity:

• IEEE 802.11a:-92 dBm @ 6 Mbps; -76 dBm @ 54 Mbps
• IEEE 802.11n 5 GHz:
• MCS0:-92 dBm
• MCS7:-73 dBm

Transmission power:

• IEEE 802.11a: 23 dBm @ 6 Mbps; 19 dBm @ 54 Mbps
• IEEE 802.11n 5 GHz:
• MCS0: 22 dBm
• MCS7: 15 dBm

Ports:

• 1x LAN 10/100 Base-T Fast Ethernet port Auto MDI/X, RJ-45 connector, PoE support (proprietary)
• 1x U.FL

Management:

• Local/Remote-Winbox, Telnet, SSH, Web Management, SNMP

Power:

• ONLY 10-28 V DC ONLY
• Consumption: max. 4.5 W/18 volts at full load), 0.245 A

Working conditions:

• Temperature:-20 ° to + 65 ° C
• Humidity: relative humidity up to 70% (non-condensing)

Dimensions:

• 10.5 x 10.5 x 1.6 cm

Weight:

• 67 g
