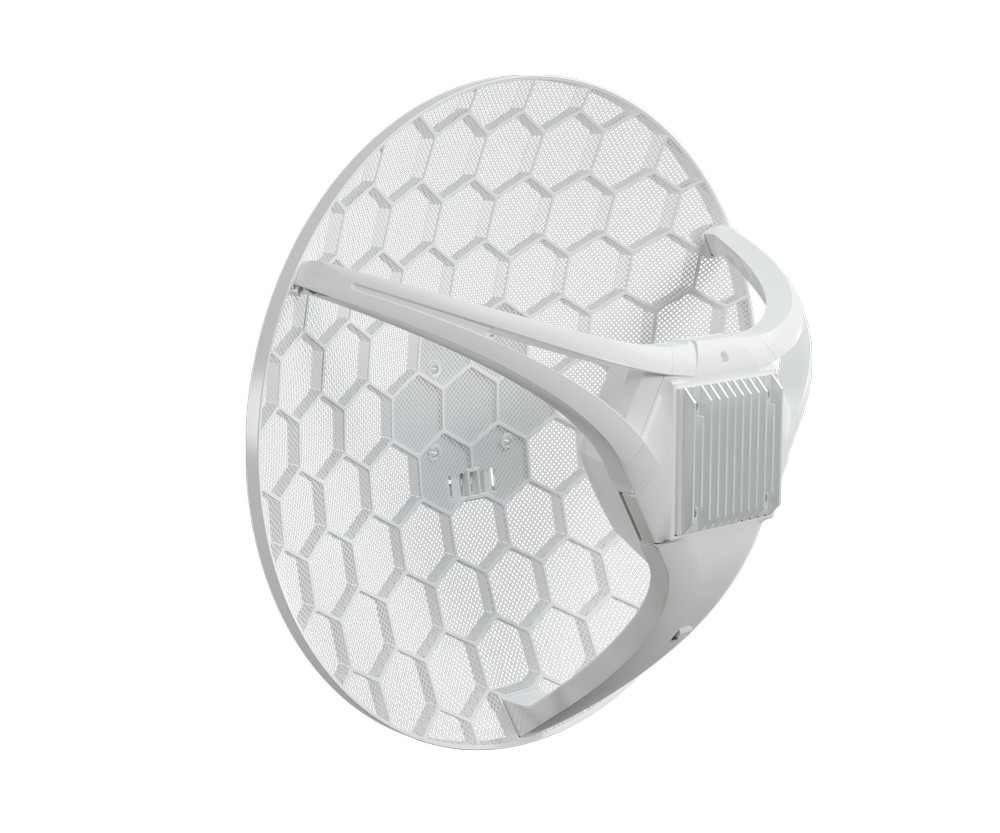

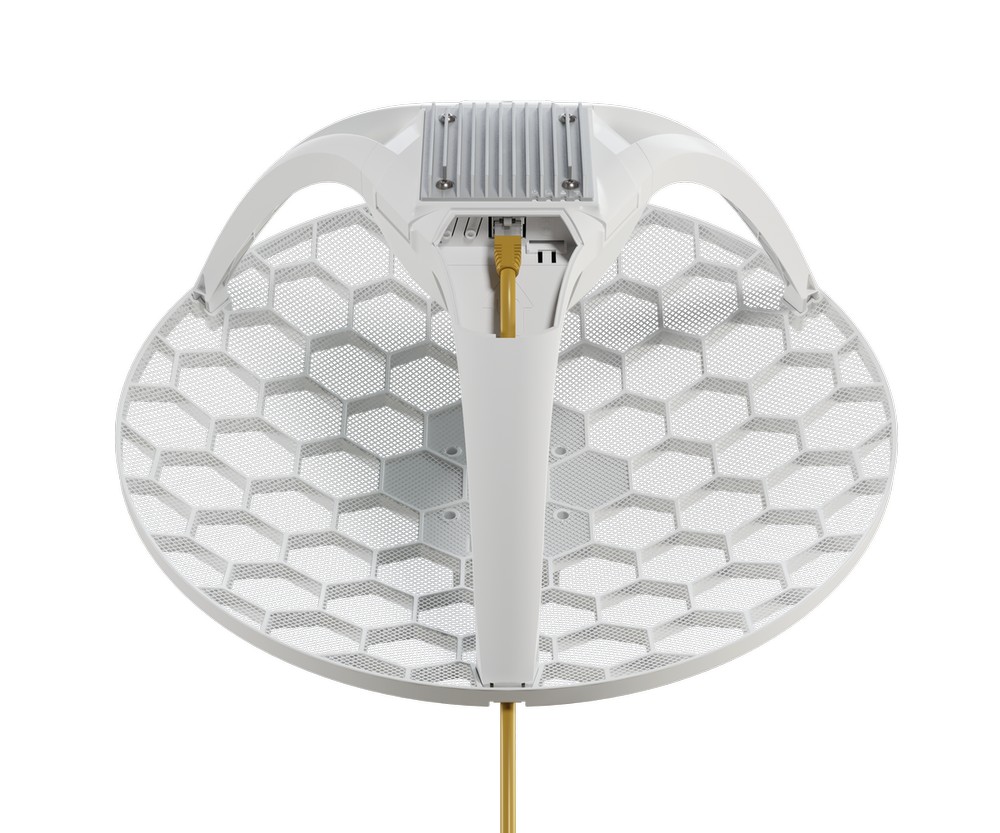

MikroTik RouterBOARD LHG LTE18 kit

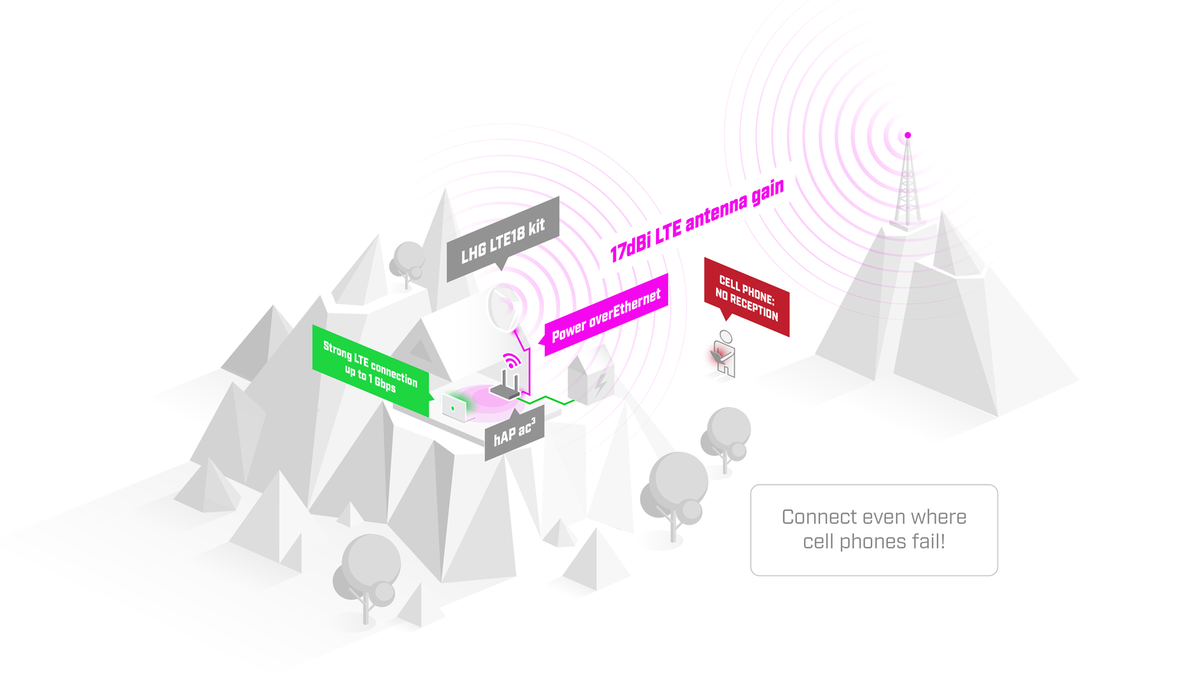

The MikroTik LHG LTE18 kit is a robust outdoor LTE router for connecting to a mobile data network. Thanks to the design of the unit and the highly directional antenna with a gain of 17 dBi, this model is suitable for places with a weak signal, where ordinary internal modems no longer work. The LHG LTE18 kit supports a speed of up to 1.2 Gbps (download) / 150 Mbps (upload) thanks to the use of a category 18 LTE modem. The unit is also equipped with a gigabit Ethernet port incl. PoE support.




Parameters
Name	Parameter
CPU:	88F3720 - 800 MHz
RAM:	256 MB
Memory:	16 MB
Number of Ethernet ports:	1x Gigabit Ethernet
LTE Modem:	R11mL-EG18-EA
LTE category:	18 (1.2Gbps Downlink, 150Mbps Uplink)
LTE bands:	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900MHz) / 20 (800MHz) / 28 (700MHz) / 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
SIM slot:	1x microSIM
Antenna:	directional, 17 dBi
Power:	PoE in (802.3af/at or passive 12-57V)
Operating System:	RouterOS v7, License level 3
Dimensions:	391 x 391 x 227mm

Package contents

• Device

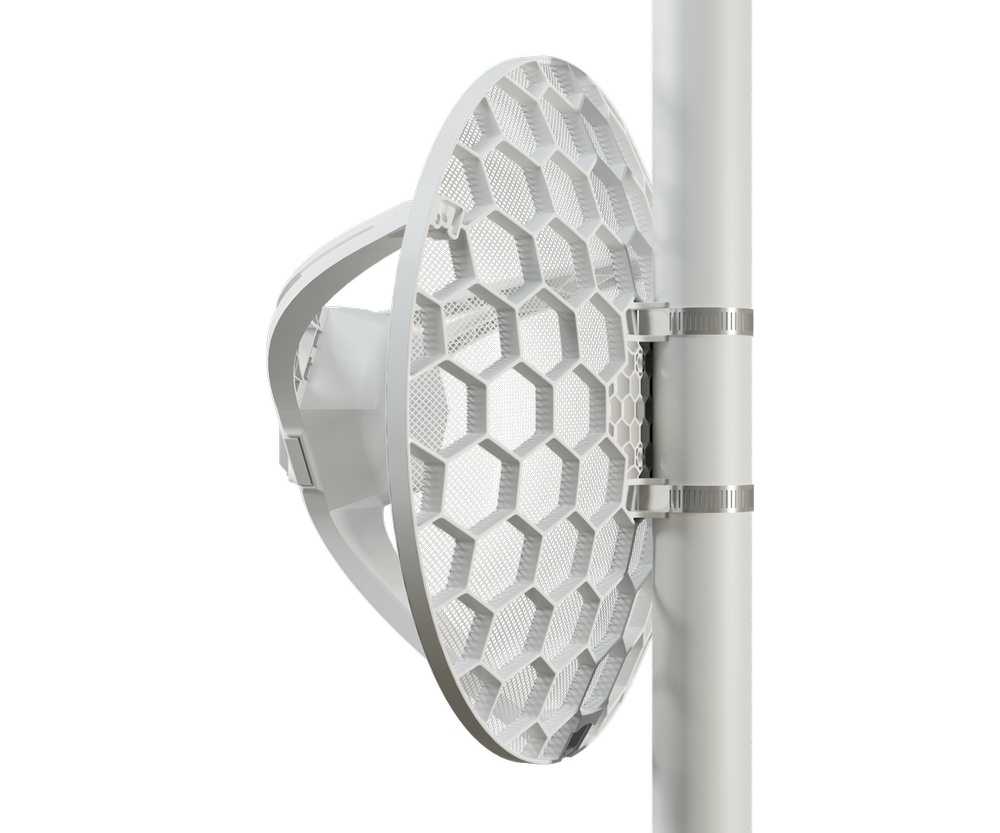

• Kit for attaching to the tube
• PoE injector
