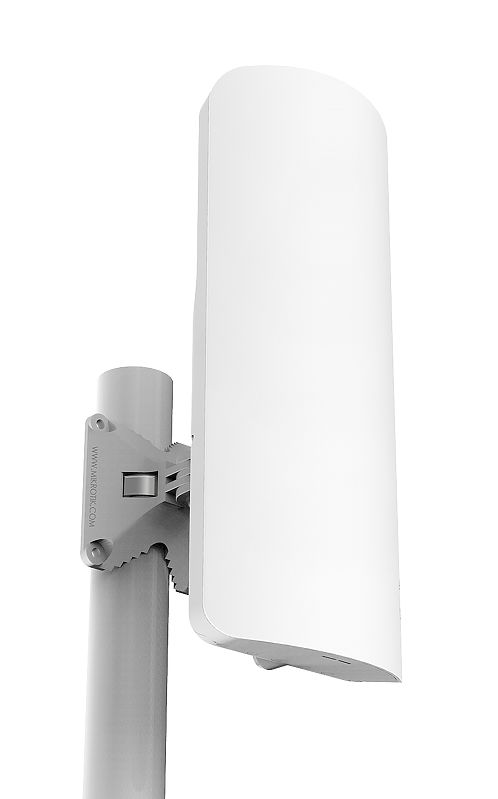

MikroTik mANTBox 2 12s

Thanks to the implementation of the RB911, a new transmitting unit for ISP providers, ideal for connecting clients over longer distances, has been created into the existing Manta.

Inside the sector antenna there is a very powerful RB911G-2HPND with 600 MHz, 64 MB operating memory, L4 , 1x glan and WiFi support 802.11b/g/n for transmission speeds up to 300 Mbps.

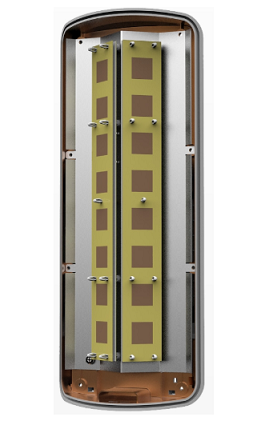

The Manta sector antenna operates in the 2.4 GHz band (2412-2484 MHz) with 12 dBI, at an angle 120 ° and excels in high-quality workmanship to make the antenna using the rear shield cover and a ficked chassis from the inner rear an anterior-posterior ratio.

parameters

name	value
Frequency:	2.4 GHz
Transmitter performance:	30 dBM
WIFI transfer speed-2.4 GHz:	300 MB/S
WiFi Standards:	802.11n, 802.11b/g
Antenna gain:	12 dBi
SPEED. Angle in elevation plane (-6 db)[°]:	120	version:	Outdoor
depth (mm):	82
width (mm):	140
height (mm):	348
CPU:	AR9342
Number of CPU cores:	1
RAM (MB):	64
CPU Frequency (MHz):	600
Storage size (MB):	128
LAN speed:	(1) 10/100/1000 Mbps
Max. Energy consumption:	11 W
Power type:	DC connector, poe
Power via POE:	10 .. 28 in DC
POE types:	Input
Power supply via connector/terminal:	8 .. 30 in DC
operating system:	ROUTEROS-L4

Package content

antenna

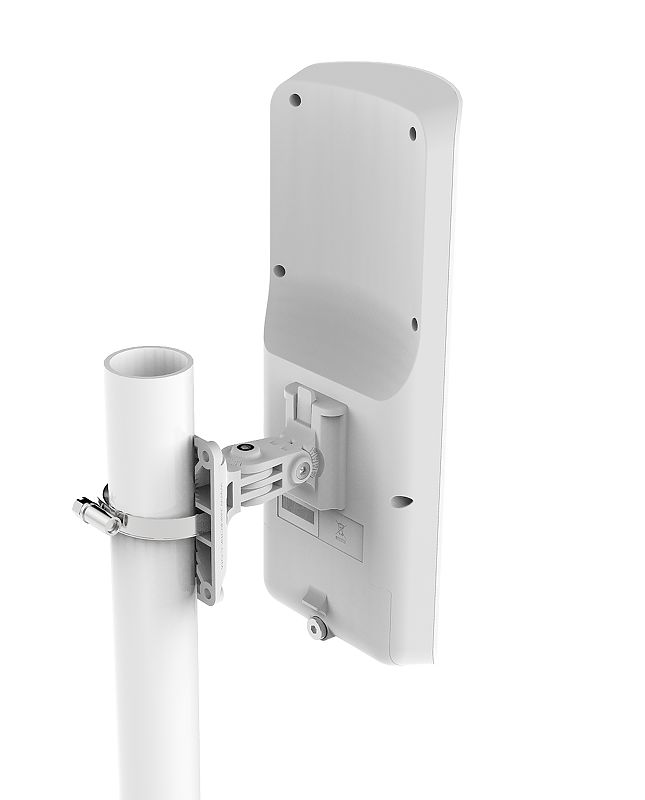

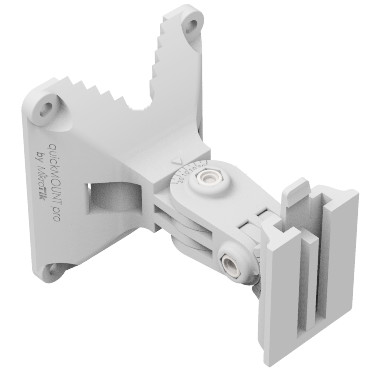

holder

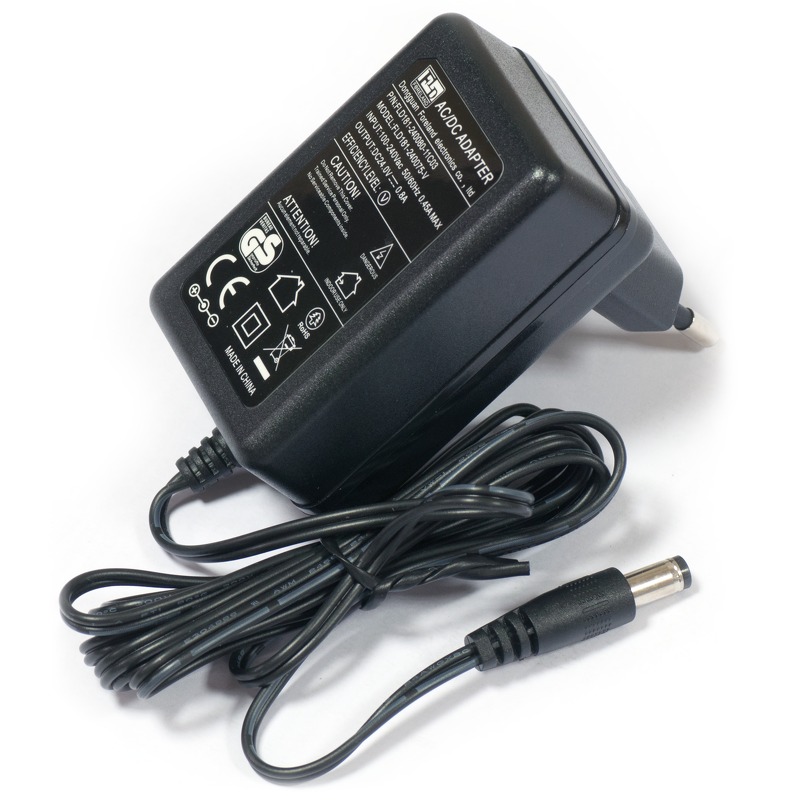

power adapter 24 V/0.8 and

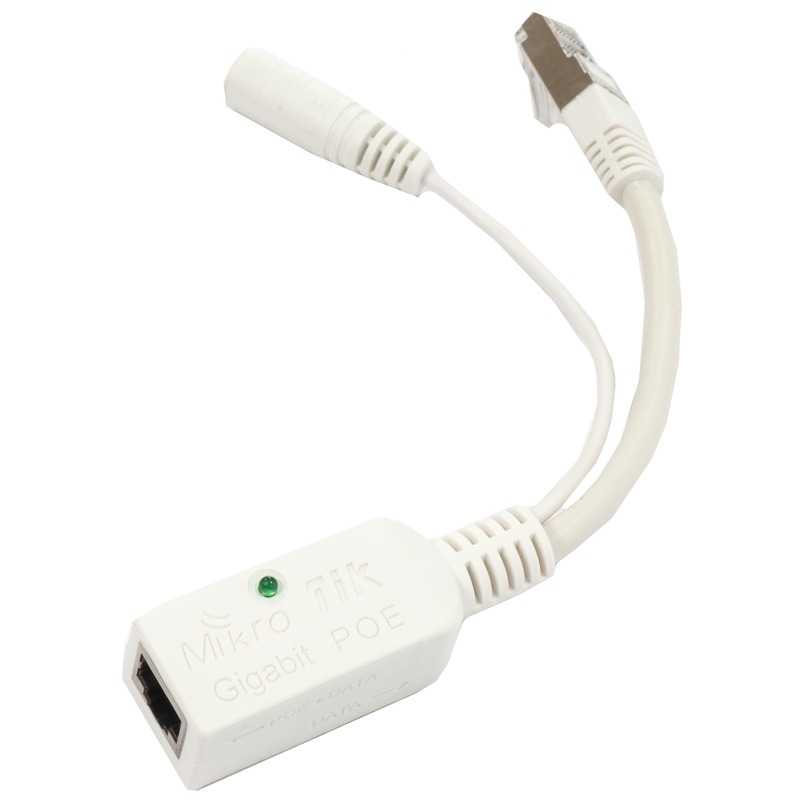

gigabit poe injector

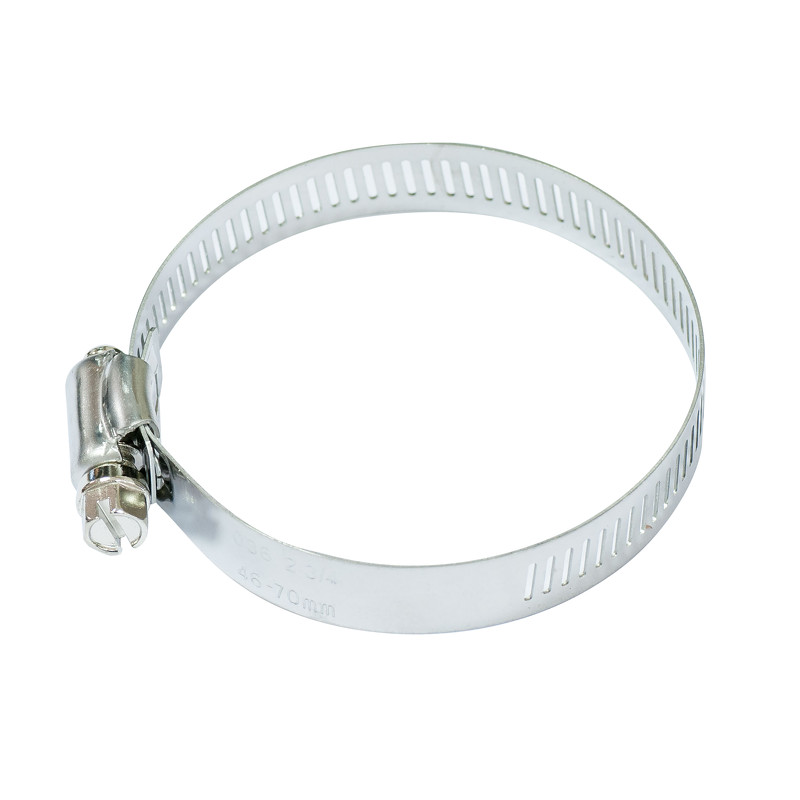

Metal tightening tape
