MikroTik GPERx6, PoE splitter/extender

The MikroTik GPER14i is a manageable outdoor PoE extender that is ideal for extending the power supply of outdoor devices. It has 4x Gigabit LAN ports, of which 1 port supports PoE-IN (802.3bt, 90W) and the remaining 3 PoE-OUT ports (802.3af/at, max 30W/port).More information

Producer

MikroTik

Part No.

CSS606-1G-2Gi-3S+OUT

Code

00075279

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

91.97 EUR exc. VAT

VAT

21%

Your price inc. VAT

111.28 EUR inc. VAT

Ask for a better price

Description

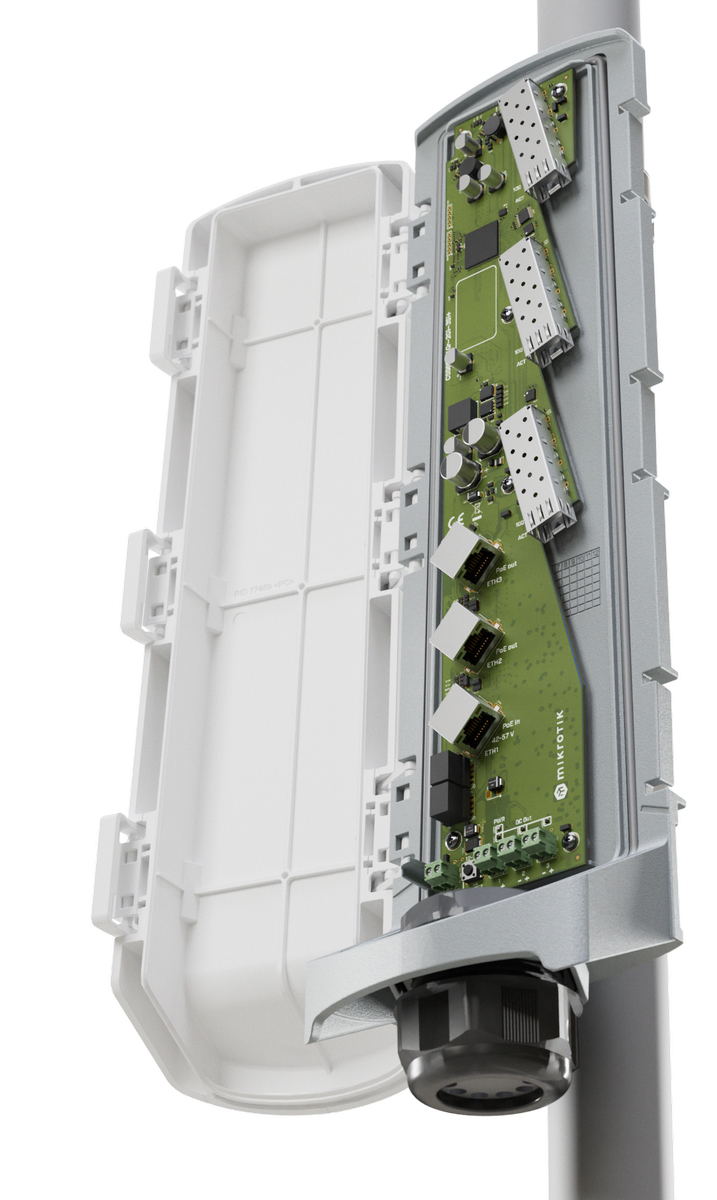

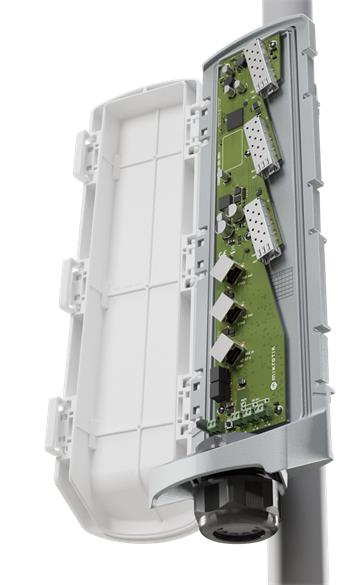

MikroTik GPERx6 is a manageable outdoor PoE extender/splitter, designed to effectively extend the power and connectivity of remote devices such as Wi-Fi access points, IP cameras or other PoE end elements. The device is equipped with 6x gigabit LAN ports, of which 1 port serves as PoE-IN (support 802.3bt, up to 90 W) and 5 ports provide PoE-OUT (standard 802.3af/at, max. 30 W per port). Ports 2-6 are isolated from each other and communicate only through the first port, which increases the security and stability of the network.

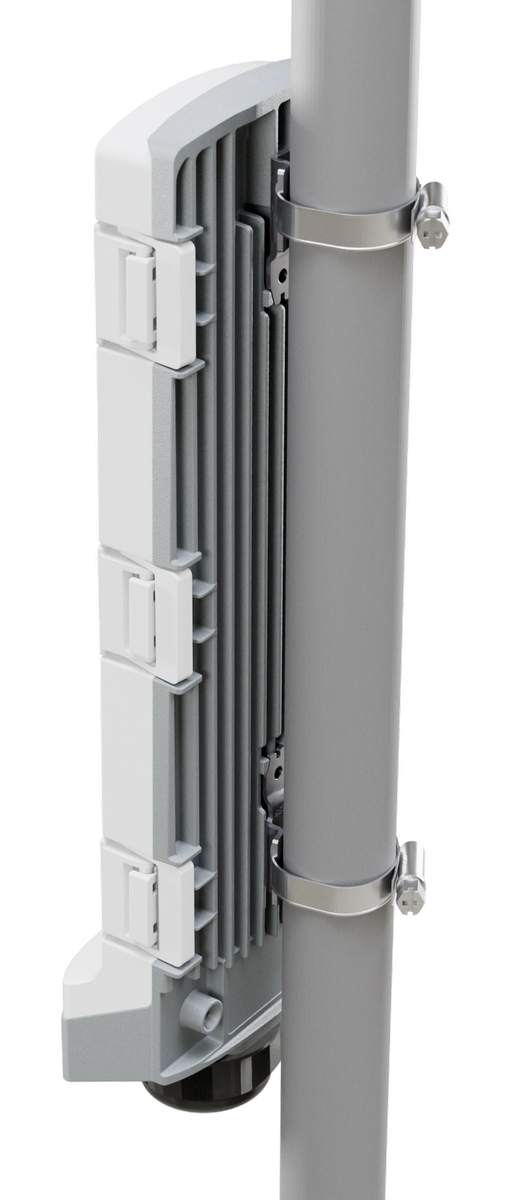

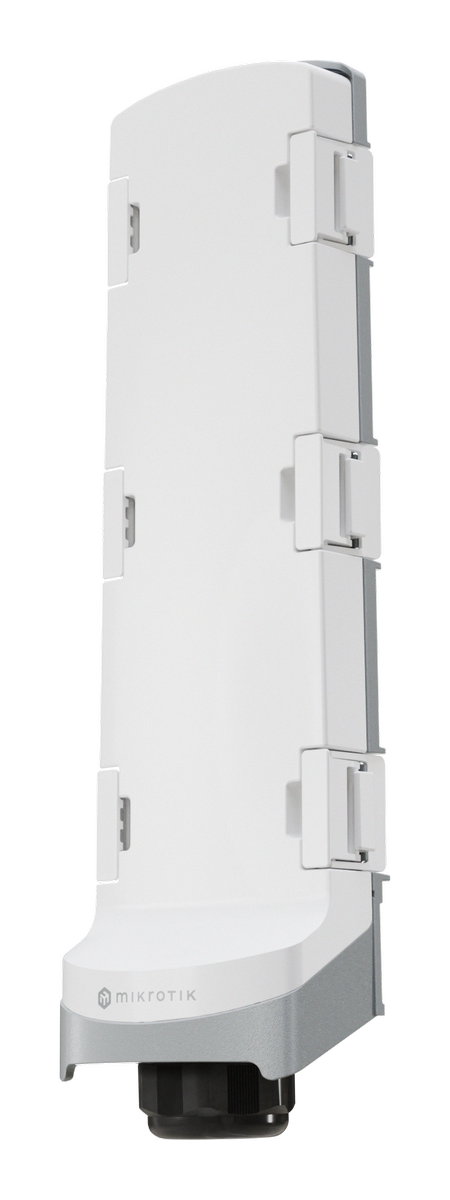

The Extender is built in a robust IP68 housing that ensures complete resistance to water, dust and moisture, making it ideal for outdoor installation in demanding conditions. Both PoE-IN (802.3bt) and 2-pin DC terminal block can be used for power supply, which enables redundant power supply.

The device includes the operating system SwOS Lite, which offers simple management and monitoring, configuration VLAN, QoS, PoE control and SNMP support.

Parameters

Ethernet parameters
Consumption	4
IP protection	IP68
Operating systém	MikroTik SwOS Lite
PoE Type	Input
Power Supply	PoE, DC
Properties	QoS, SNMP, VLAN
Redudant power supply	yes
Gigabit LAN	yes
Network interface (Mbps)	10/100/1000
Number od RJ45 ports	2
Number of SFP (1G) ports	1
Number of SFP / SFP+ ports	1
Physical parameters
Depth (mm)	70
Design	Outdoor, Na zeď, Na stožár
Height (mm)	281
Operating Temperature	-40° až +70°C
Width (mm)	76
PoE parameters
PoE standard	802.3at, 802.3af, 802.3bt
Powering
Počet PoE In portů	1
Počet PoE Out portů	3
