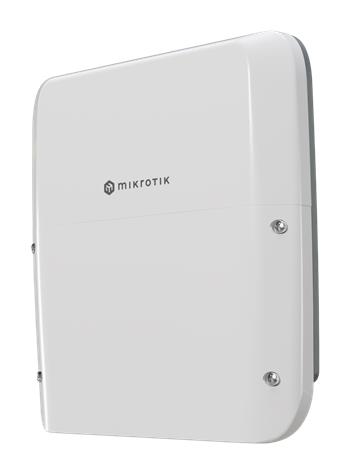

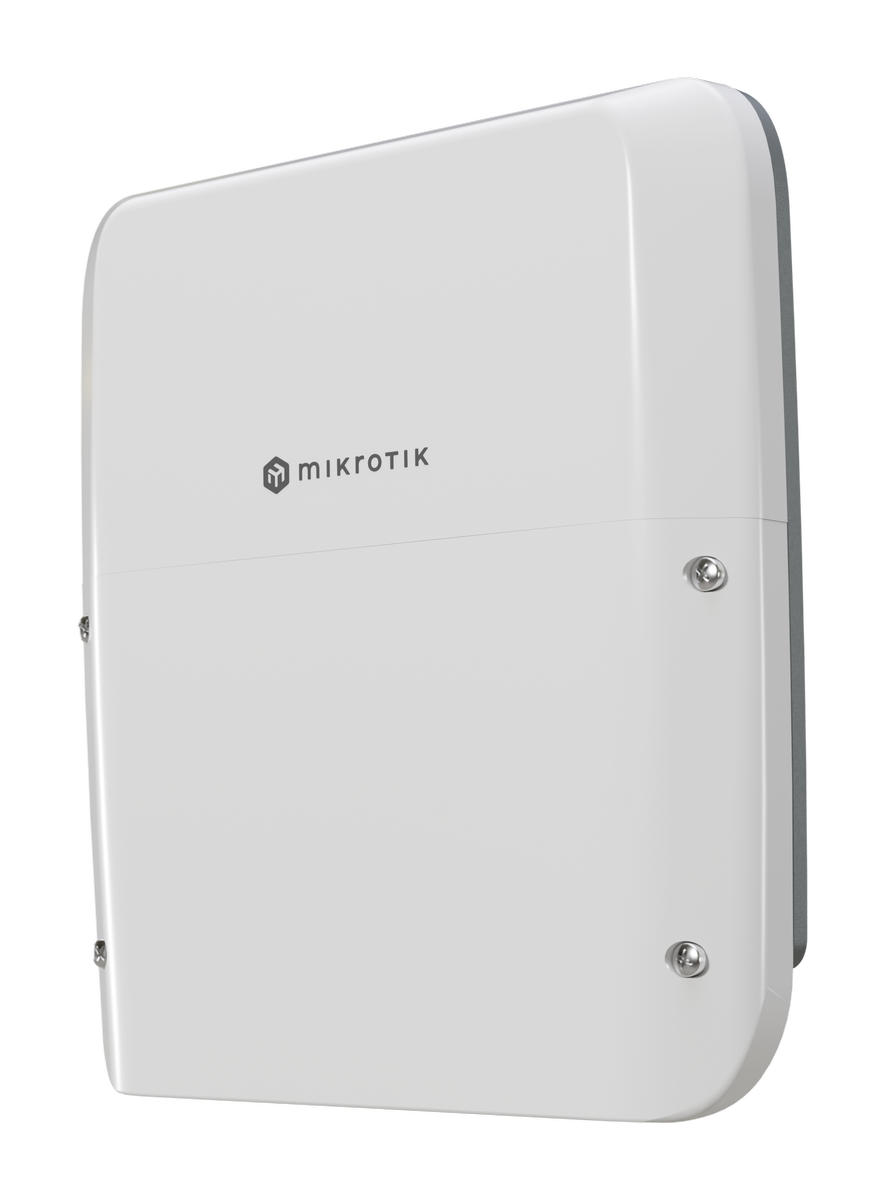

MikroTik Cloud Core Router RB5009UPr+S+OUT

Microtik Cloud Core Router RB5009UPR+S+Out is outdoor router for the most demanding deployment, whether in climatically demanding locations or where it is not possible to place internal technology.

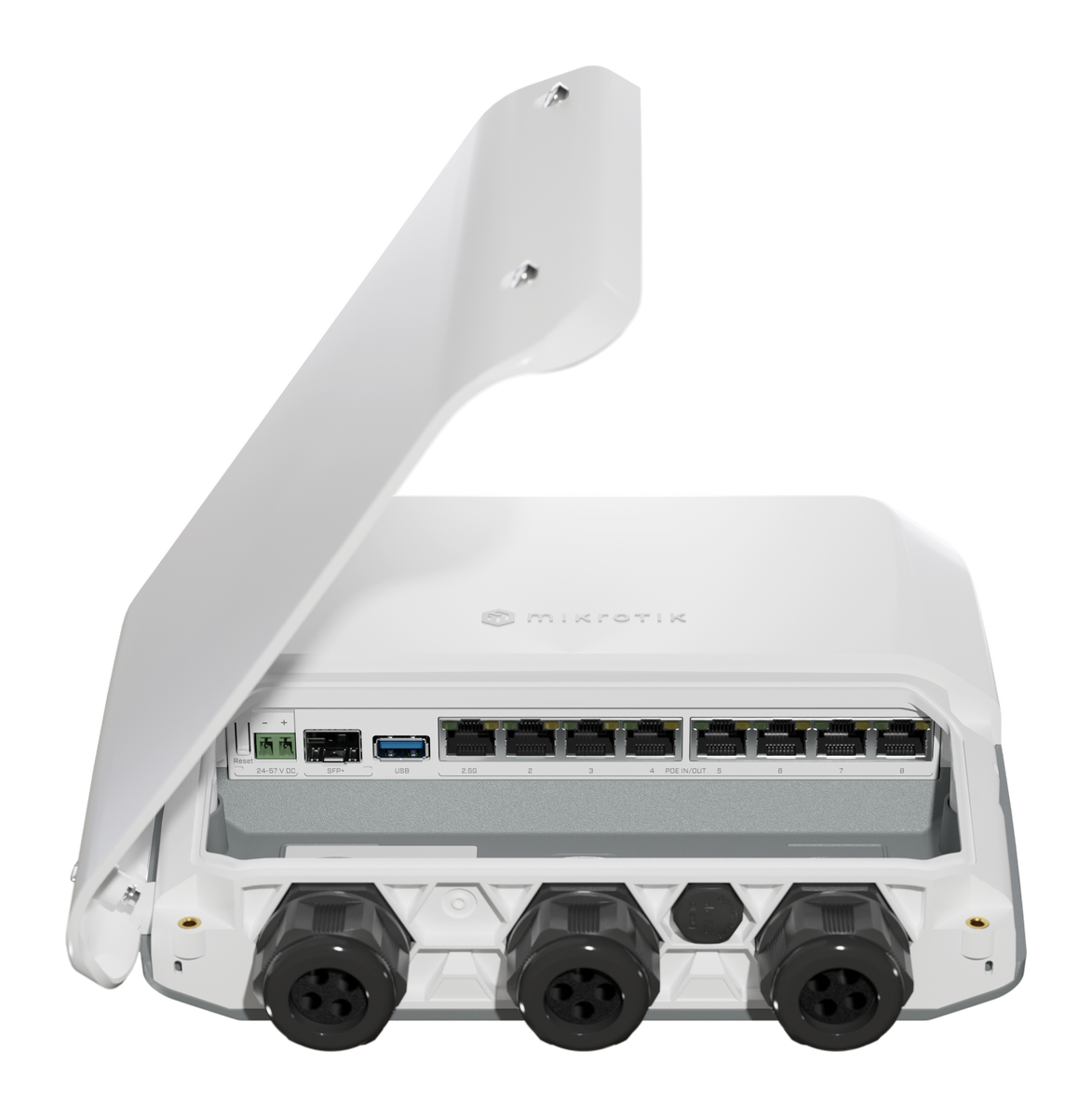

The router will offer 9 different Ethernet ports and 1x USB 3.0 port. Seven Ports are classic gigabit metallic, others are 2.5 Gigabit Ethernet and the last is 10g SFP+ shaft. All ports are connected to a powerful switch chip of the Marvell Amethyst family, which is over 10 Gbps a fully duplex line associated with the quad-core processor Marvell Armada Armv8 1.4 GHz. This combination of ports and components (1 GB DDR4 RAM and 1 GB NAND storage) almost double the power in configurations with high CPU loads compared to other products in this version.

In addition-both key components (CPU and Switch chip) are located on the back to ensure the best cooling- chassis works like a massive cooler!

The huge advantage of the RB5009UPR+SUT is support Poe-in I poe-out On all ports, there is also a 2-pin terminal for DC power. In addition, each of these variants supports the wide working range 24-57 in DC . When using POE-Out, each port can deliver up to the connected device up to 25 W , the total Power Budget is 130 W . The condition of using POE-out is the DC connector power.

This unprecedented computing power and connection options are packed in a very small and compact design that is no problem to place almost anywhere.

parameters

support

name	value
version	OUTDOOR
CPU	88F7040 1.4 GHz
CPU frequency	1,400 MHz
Number of CPU cores	4
RAM	1024 MB
Internal storage size	1024 MB
LAN	7x 10/100/1000 Mbps, 1x 10/100/1000/2500 Mbps
Optical interface (SFP)	1x 10 Gbps SFP+
operating system	Routeros-L5
IPv6	Yes
Power type	DC/Poe-in (802.3af/at/Passive)/2-Pin Terminal
Max. power consumption	15 W
Dimensions (W x H x H)	222 x 57 x 239
operating temperature	-40 ° C to 60 ° C

• device
• 1x power adapter 48 V 2 and

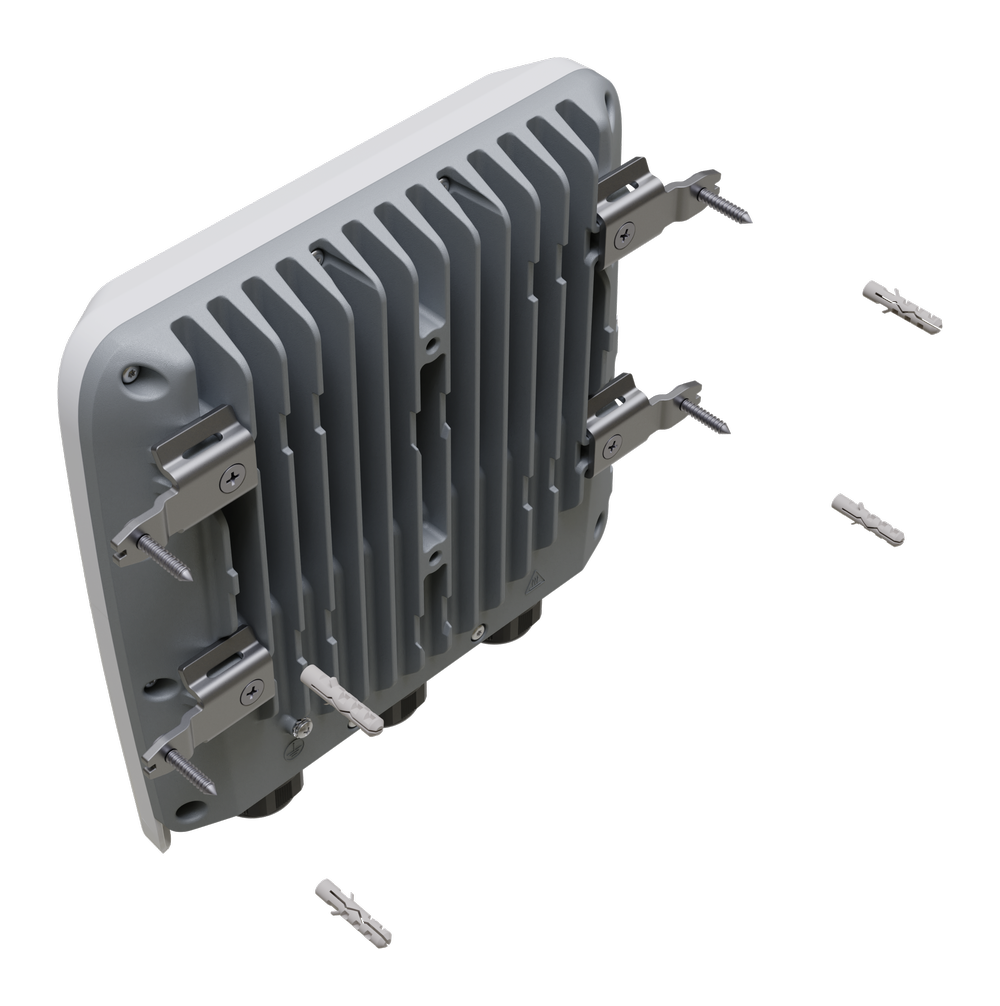

• mounting set
