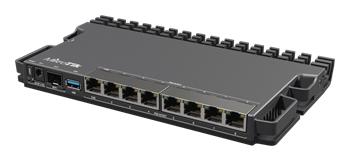

MikroTik Cloud Core Router RB5009UPr+S+IN

MikroTik Cloud Core Router RB5009UPr+S+IN is a router for the most demanding deployments such as climate-demanding locations or as a universal device for testing in the quiet of the laboratory.

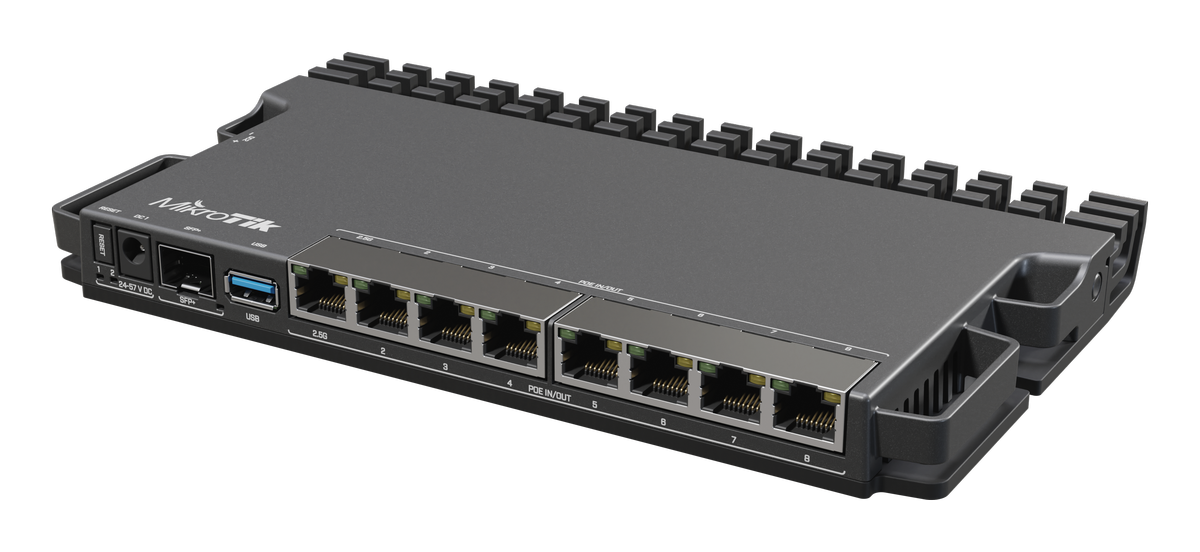

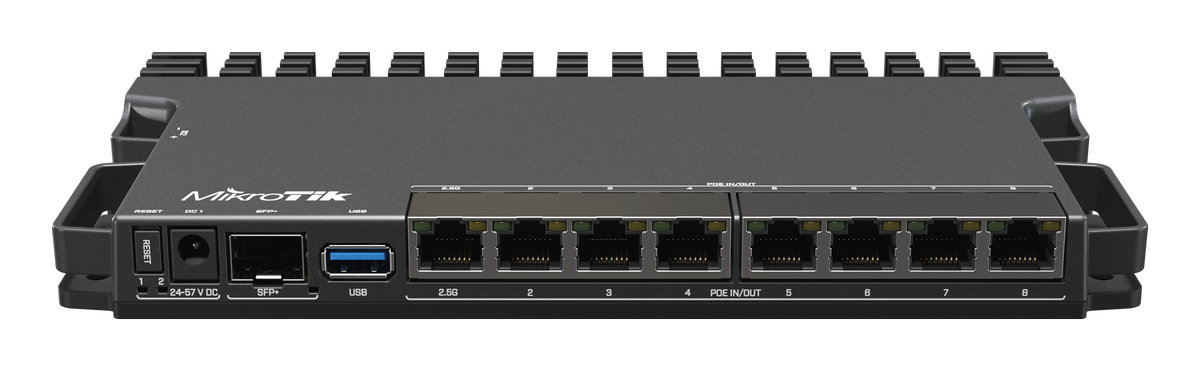

The router offers 9 different Ethernet ports and 1x USB 3.0 port. Seven ports are 1Gbps RJ45, another one is 2.5 Gigabit Ethernet RJ45 and the last is a 10G SFP+ slot. All ports are connected to the powerful Marvell Amethyst family switching chip, which is connected to the Marvell Armada ARMv8 1.4 GHz quad-core processor via a 10 Gbps full-duplex link. This combination of ports and components (1GB DDR4 RAM and 1GB NAND storage) nearly doubles performance in CPU-heavy configurations compared to other products in this lineup.

In addition - both key components (CPU and switch chip) are located on the underside of the board to ensure the best cooling - chassis works like a massive cooler!

A huge advantage of the RB5009UPr+S+IN model (and at the same time the difference against the RB5009UG+S+IN) is the support of PoE-in and PoE-out on all ports! The power options are really rich:


1. PoE-in from any port (or combination)
2. DC Jack

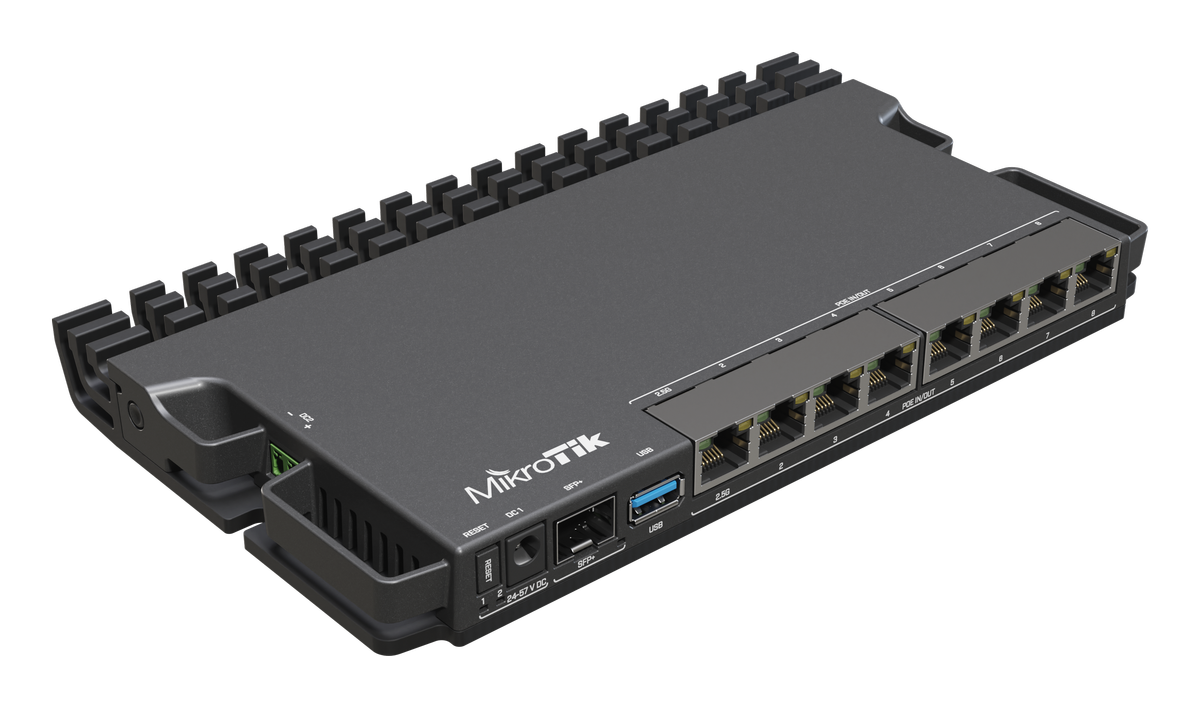

3. 2-pin terminal on the side

In addition, each of these variants supports a wide operating range of 24-25 V DC. If PoE-out is used, each port can deliver up to 25 W to the connected device, the total power budget is 130 W.

This unprecedented computing power and connection options are packed into a very small and compact design, which is not a problem to place almost anywhere. For illustration - one classic 1U profile can fit up to 4 routers.


Parameters



Name	Value
Form factor	Desktop (optionally also rackmount)
CPU	88F7040 1.4 GHz
CPU frequency	1400 MHz
Number of CPU cores	4
RAM	1024 MB
Internal storage size	1024 MB
LAN	7x 10/100/1000 Mbps, 1x 10/100/1000/2500 Mbps
Optical interface (SFP)	1x 10 Gbps SFP+
Operating system	RouterOS - L5
IPv6 support	Yes
Power Type	DC / PoE-in (802.3af/at/passive) / 2-pin terminal< /td>
Max. power consumption	15 W
Dimensions (W x H x D)	220 x 22 x 125
Operating temperature	-40°C to 60°C



Package Contents

• Device
• 1x Power adapter 48 V 2 A
• Mounting kit
