MikroTik cAP XL ac, RBcAPGi-5acD2nD-XL

The cAP XL ac model is the next generation of popular dual-band access points from MikroTik's portfolio. It supports 802.11a/b/g/n/ac WiFi standards (WiFi 4 and WiFi 5) with speeds of up to 300 Mbps (2.4 GHz band) or 866 Mbps (5 GHz band).

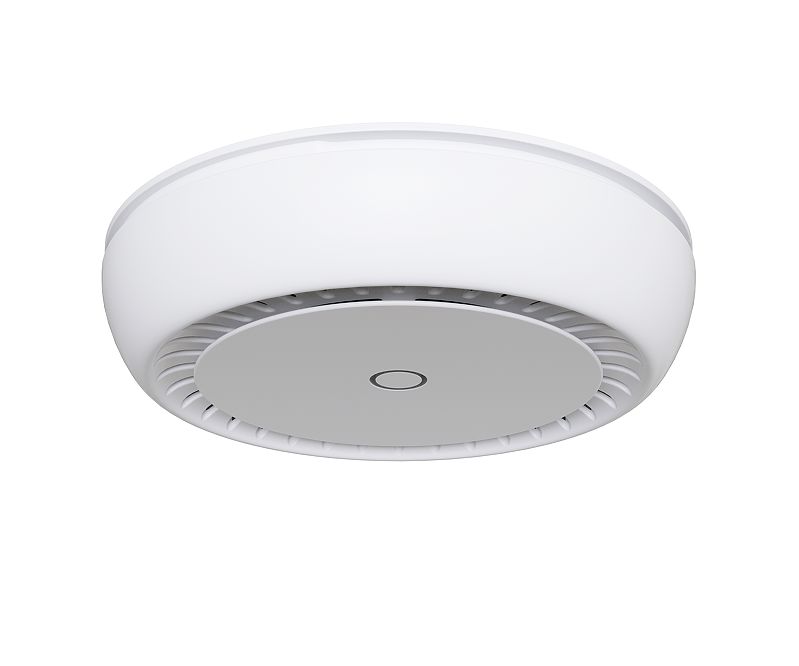

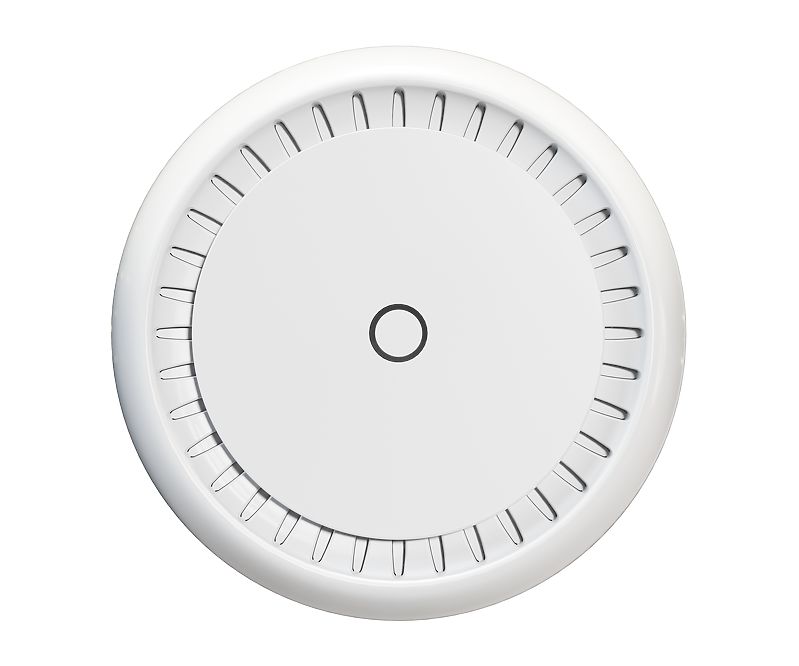

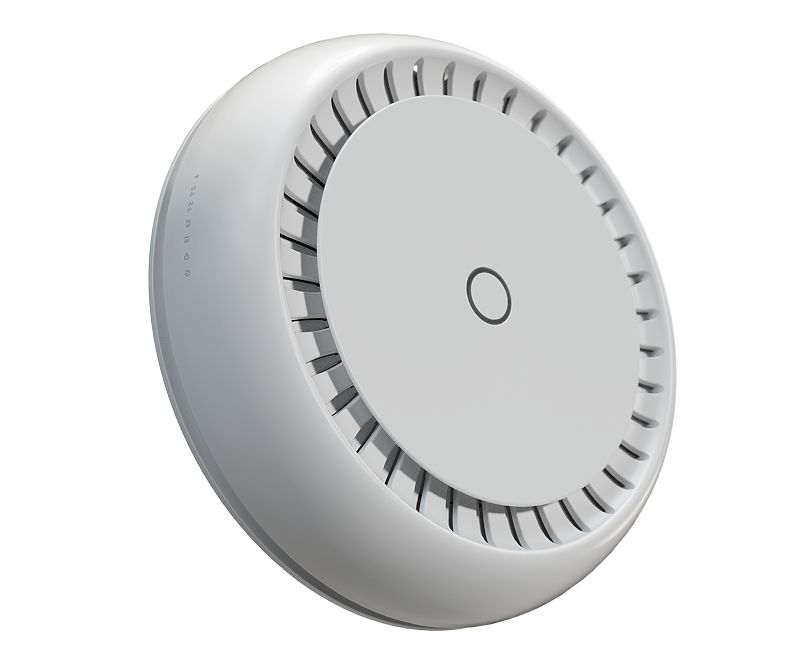

Compared to previous cAP models, the improved 360 ° antenna with high gain and higher sensitivity increases the covered area by up to 100%! A great advantage of the device is the low profile and overall design, which easily fits into any interior and does not attract unnecessary attention - ideal for public places of all kinds.

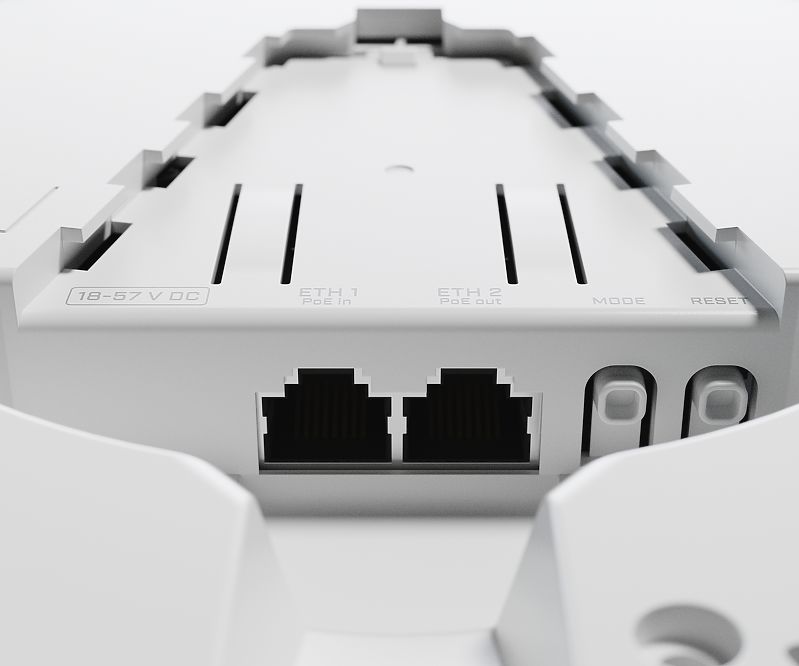

In addition, the MikroTik cAP XL contains two Ethernet ports, so it is possible not only to power the device via PoE (support for passive PoE 18-57 VDC or 802.3af/at), but also to connect another powered device with a power input of up to 13W directly to the second port! If you run a larger network, you will certainly enjoy the support of MikroTik CAPsMAN technology, which allows you to control all APs in the network from one place.





Parameters

Name	Value
Frequency:	2.4 + 5 GHz (dual band)
TX power [dBm]:	26
WiFi standards:	802.11ac, 802.11n, 802.11a, 802.11b/g
Throughput WiFi - 2.4 GHz [Mb/s]:	300
Throughput WiFi - 5 GHz [Mb/s]:	866
Antenna gain 2,4 / 5 GHz [dBi]:	5,5 / 6
Mounting:	Ceiling / wall
Operating temperature [°C]:	-40 to70
Width(mm):	191
Depth (mm):	191
Height (mm):	42
CPU:	IPQ-4018
CPU cores:	4
RAM (MB):	128
Storage [MB]:	16
LAN:	10/100/1000 Mbps
Power compsumption:	11 W
Powering:	PoE
PoE standards:	802.3af, 802.3at, 17 .. 57 V DC
PoE inputs/outputs:	PoE in a PoE out
Operating system:	RouterOS - L4

Obsah balení

• Zařízení
• Napájecí adaptér 24 V/1,2 A
• Gigabitový PoE injektor

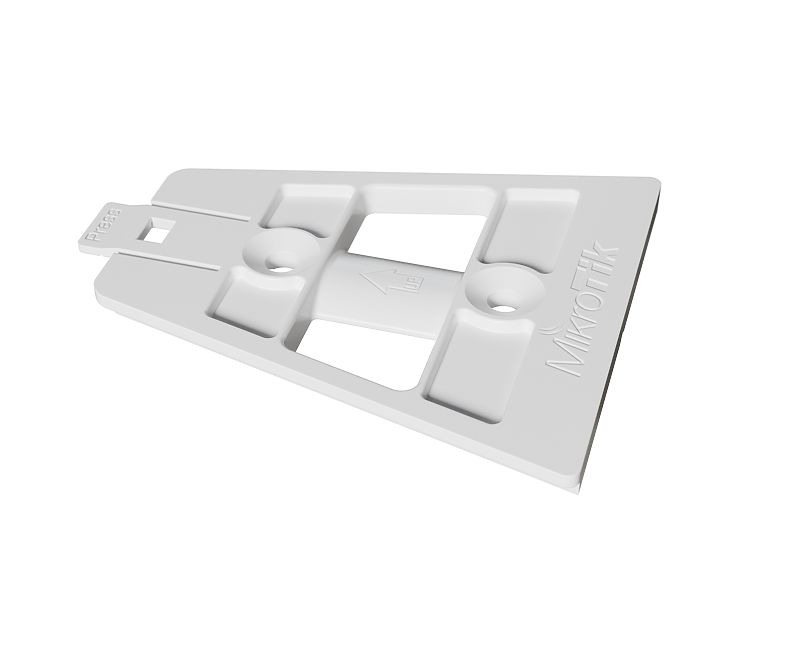

• Montážní sada k přichycení na strop/zeď
