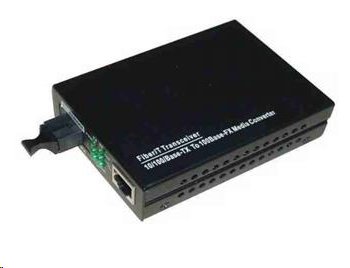

Media converter ZCOMAX AK, WDM, 100 Mbps, SM, SC simp., 20km, 1550nm

The main purpose of the media converters is in the use of optical fibers as a transmission data medium between two locations where metallic cabling can no longer be used, whether for ensuring EM radiation or for long distance. Media converters of ZCOMAX are the basic converters with passing functionality and unbeatably the lowest price on the market.

designed for two-way transmission through one optical fiber

Built-in lightningist (only variants with external DC power), max. 4KV

LED Indications: indications on, monitoring of port activities, and more using 6x LEDs

This converter works without problems (tested) against switchi supporting 100Mbit SFP-eg ZCOMAX S2228F, or DCN DCS-3950 with SFP modules SPB-3720xxx or SPB-3710xx

parameters:

name	value
Format:	stand-alone
converter type:
Transfer type:	WDM (BI-DI) 1 thread
Connector type:	SC Simplex
Type of thread:	SM
Better speed:	100Mbps
Transmission protocol:	100MBPS
standards:	IEEE 802.3U/IEEE 802.3Z/IEEE 802.3x
reach (km):	20
wavelength TX ::	1550
Rx wavelength ::	1310
Power:	Adapter 230V AC/9V DC
Operating temperature range (° C):	0 to 50
Management:	Unmanageable
Connector type-metallic:	rj45
RAM (KB):	128
Support 9K Jumbo Packets:	No
Transmitter Optical Power (DBM):	-12 to-3
Reciever Sensitivity (DBM):	-35
Weight (g):	260
Dimensions (mm):	94 x 71 x 26
