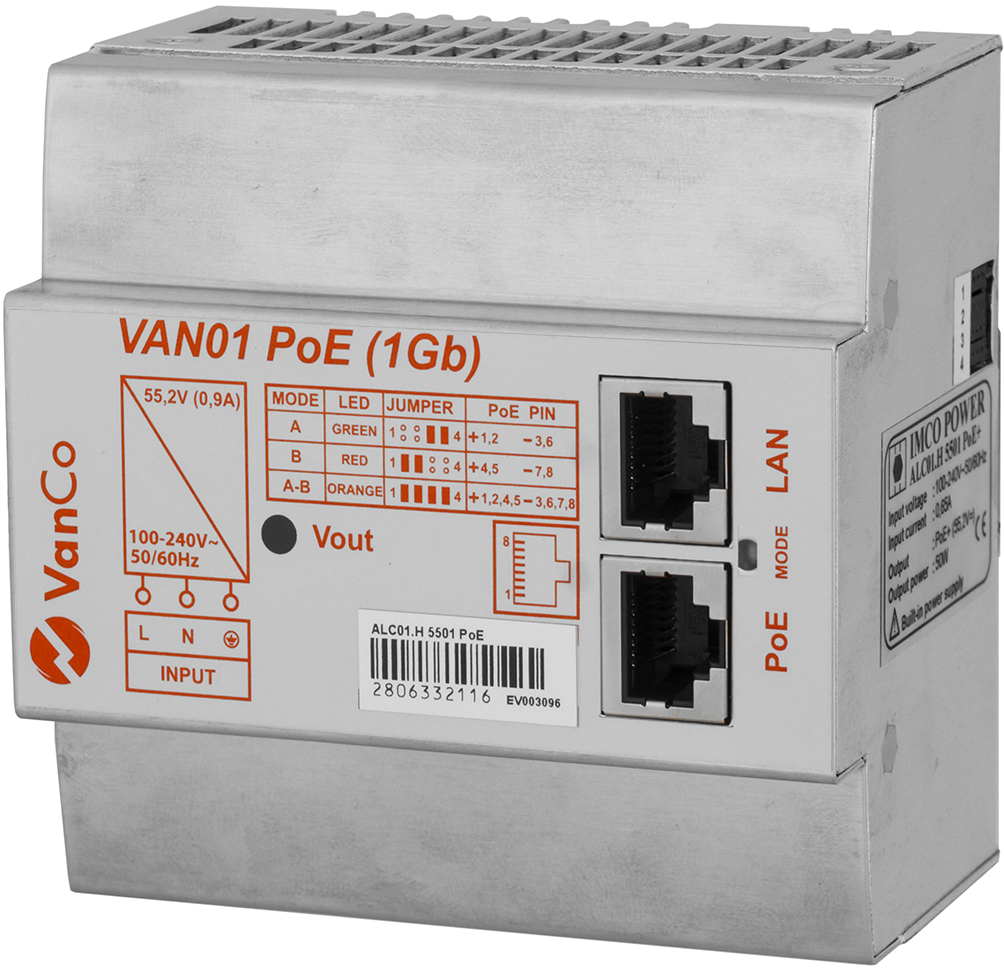

IMCO POWER VAN01 PoE, network power supply, 55V/0.9A, 50W

Mesh power supply 85-265V ~ 50Hz/48V (1A) in design with uchytt on DIN bar. Power supply POE 1 GBPS with optional power conductor.More information

Producer

IMCO POWER

Part No.

EV003152

Code

00032460

Warranty

24 Month

Availability

Order

Your price exc. VAT

96.78 EUR exc. VAT

VAT

21%

Your price inc. VAT

117.11 EUR inc. VAT

Ask for a better price

Description

Van01.H PoE for remote power via Ethernet cable with a 3 Gbps and 50W . The input of the ropes is, as well as the POE output protected from external influences, overvoltage protection. Sources are capable of long-term operation in industrial environment from-25 ° C to +60 ° C, there are used components not succumbing to fast aging and, moreover
Mounting the source on the DIN rail , with the possibility to get
LED"Vout" on the front panel indicates the operation of the source.
LED"MODE" indicates settings A, B or A+B. The standard can be adjusted with jumpers on the side of the source.

Parameters

Ethernet parameters
DC Output Voltage (V)	55.2
Input Voltage (V)	230
Local signalling	LED
Output Current (A)	0.9
Power consumption (W)	50
Properties	Ochrana proti zkratu, Ochrana proti přepětí
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	68
Design	DIN rail, Standalone
Efficiency (%)	91
Height (mm)	90
Operating Temperature	-25° až +60°C
Weight (kg)	0.33
Width (mm)	91
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
