IMCO POWER TIC200.H 48_220006, converter 48V DC/220V DC, 138W

Name: IMCO POWER TIC200.H 48_220006, converter 48V DC/220V DC, 138W
Brand: IMCO POWER
SKU: 30873
Price: 231.98 EUR
Availability: InStock

DC/DC converter 42-72V/220V (0.6a), with attachment to DIN bar.More information

Producer

IMCO POWER

Part No.

EV001874

Code

00029762

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

191.72 EUR exc. VAT

VAT

21%

Your price inc. VAT

231.98 EUR inc. VAT

Ask for a better price

Description

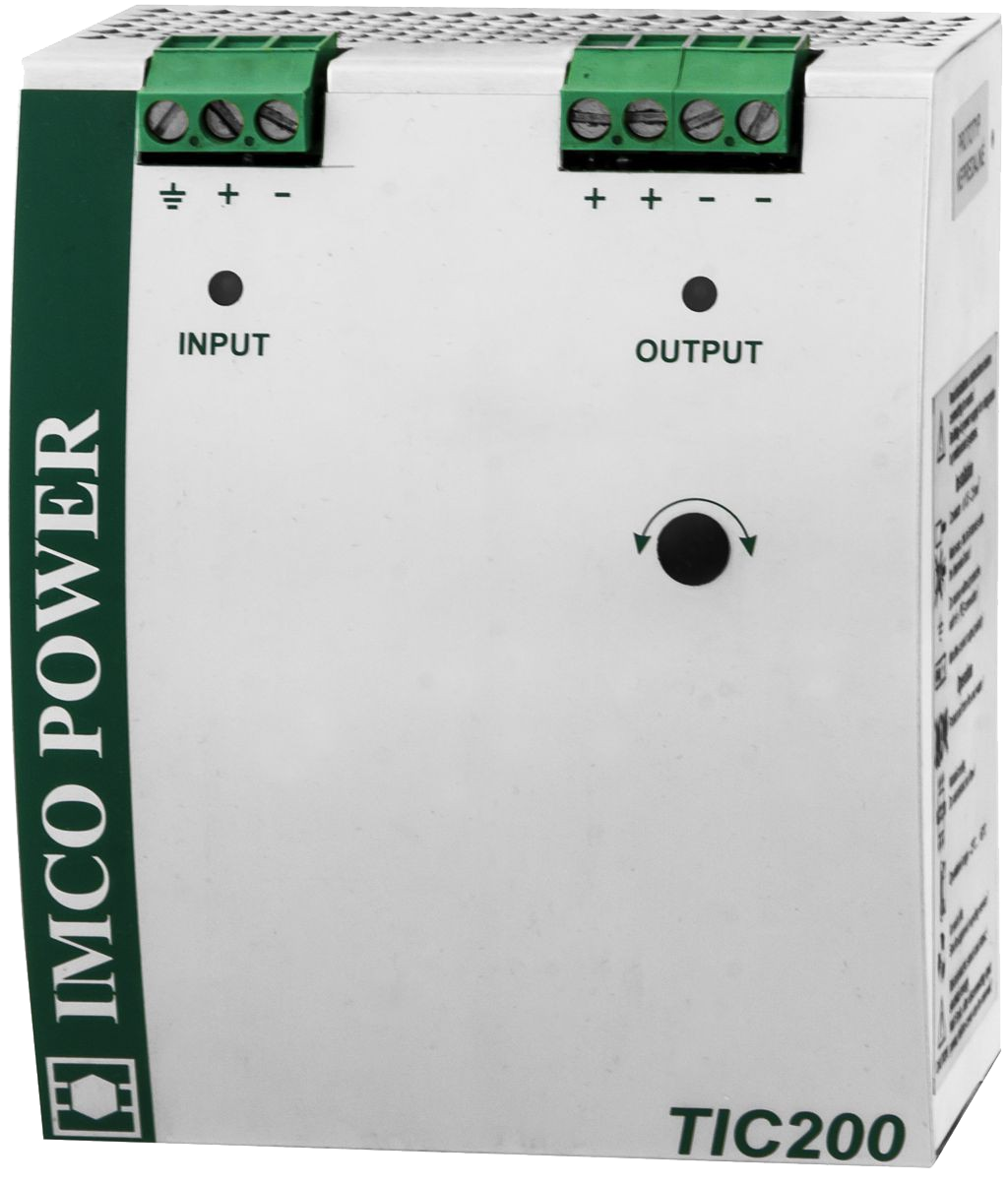

Tressor type tic200.h 48_220006 converts 48 v 220 V DC with galvanic separation. The converter is equipped with a local LED indication. Trimmer, on the front panel, it is possible to gently adjust the output voltage.

converters are produced in the following copies:
-TIC200.H ZZ_XXYY-H \u003d DIFFERENCE on DIN rail, ZZ determines the input power size, xx determines the size of the output voltage, YY determines the size of the output current.

The converter is designed to install the din bar . Connection of input, output and signaling is via 6 mm2 terminals in the upper part of the converter with a cross-section of wires up to 6 mm2. 6 mm2 output clamps are doubled.

Parameters

Ethernet parameters
DC Output Voltage (V)	220
DIN rail mounting	Yes
Input Voltage (V)	48
Output Current (A)	0,6
Power consumption (W)	138
Rack mounting	Ne
Network interface (Mbps)	10/100/1000
Physical parameters
Design	DIN rail
Weight (kg)	0.6
Powering
PoE	No
