IMCO POWER TIC200.H 24_220006, converter 24V DC/220V DC

Name: IMCO POWER TIC200.H 24_220006, converter 24V DC/220V DC
Brand: IMCO POWER
SKU: 30869
Price: 257.31 EUR
Availability: InStock

DC/DC converter 18-35V/220V (0.6a), with attaching to DIN bar.More information

Producer

IMCO POWER

Part No.

EV000419

Code

00029758

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

212.66 EUR exc. VAT

VAT

21%

Your price inc. VAT

257.31 EUR inc. VAT

Ask for a better price

Description

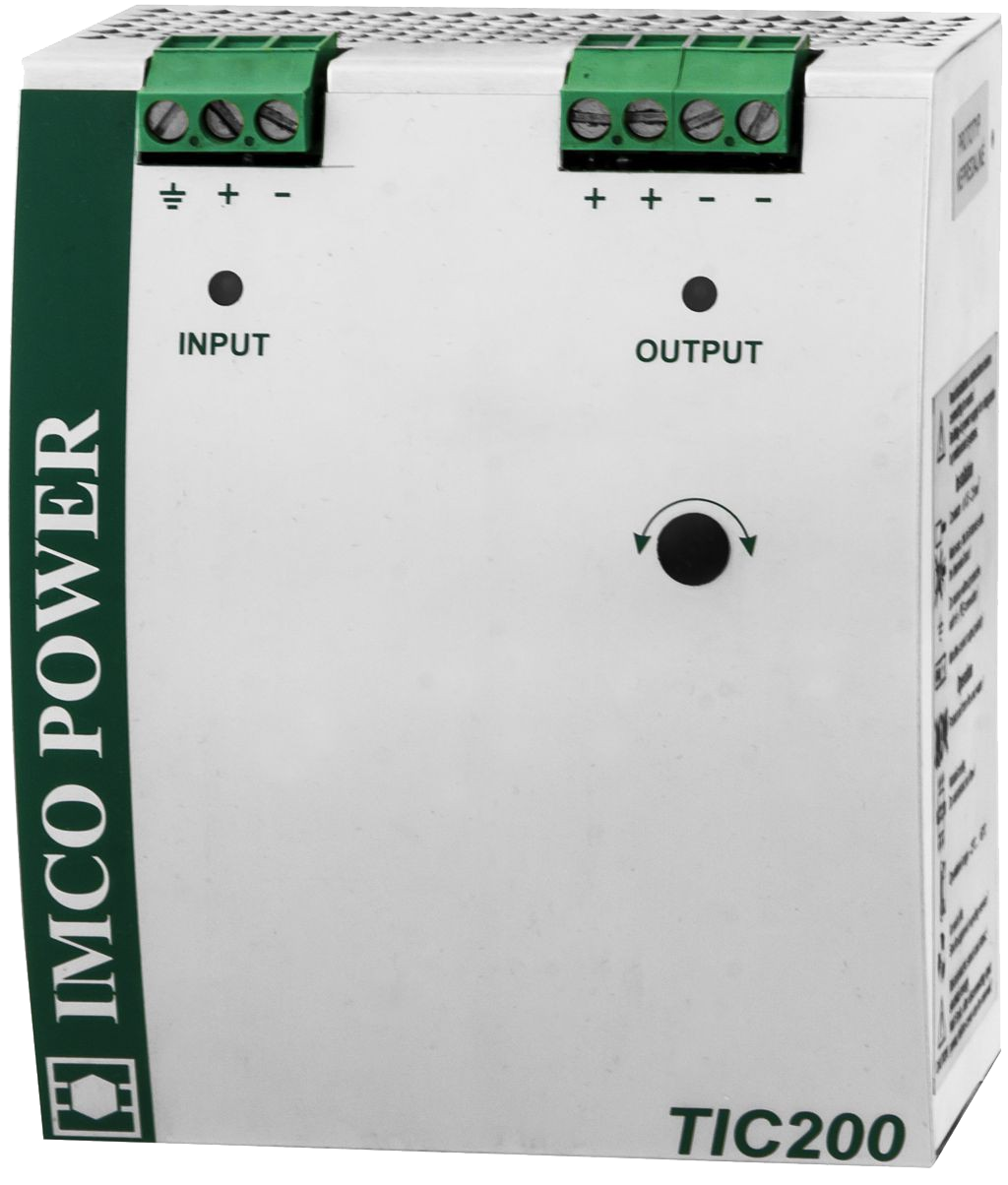

Tressor type tic200.h 24_220006 converts 24 V to 220 V DC with galvanic separation. The converter is equipped with a local LED indication. Trimmer, on the front panel, it is possible to gently adjust the output voltage.

converters are produced in the following copies:
-TIC200.H ZZ_XXYY-H \u003d DIFFERENCE on DIN rail, ZZ determines the input power size, xx determines the size of the output voltage, YY determines the size of the output current.

The converter is designed to install the din bar . Connection of input, output and signaling is via 6 mm2 terminals in the upper part of the converter with a cross-section of wires up to 6 mm2. 6 mm2 output clamps are doubled.

Parameters
