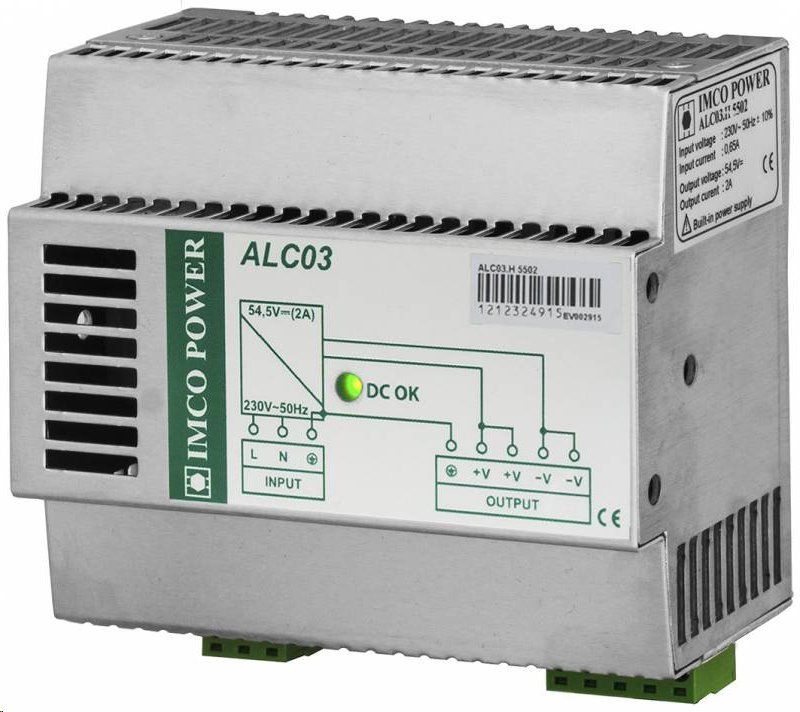

      IMCO POWER ALC03.H 5502, mains power supply 55V/2A, 110W
      Compare Set Watchdog

      IMCO POWER ALC03.H 5502, mains power supply 55V/2A, 110W

      Network source 230V ~ 50Hz/54.5V (2a), with attaching to DIN rail, PFC, double output + PE ground clamp.More information

      Producer
        IMCO POWER

      Part No.


      EV002992


      Code
       00031032
      Warranty
      24 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      100.17 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      121.20 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        High-quality power supply ALC03.H network power source is used to power the device with 55V with power to 110W (55 V/2 A) . Sources allow operation in an industrial environment from-25 ° C to +60 ° C. In sources, components are not subject to rapid aging. The input is fitted with overvoltage protection of class D, the output is short-circuit and agalvanically separated from the input. LED on the front panel indicates the operation of the source.

        Sources are designed for mounting on din bar . The connection of inputs and outputs is through a removable connector with a cross-section of water up to 2.5mm2. Separate ground clamp allows you to ground one of the output poles.

        Parameters

        DC Output Voltage (V) 54.2
        DIN rail mounting Yes
        Input Voltage (V) 230
        Insulation strength 4 kV
        Local signalling LED
        Output Current (A) 2
        Power consumption (W) 110
        Properties Ochrana proti zkratu, Průmyslový

        Ethernet parameters
        Network interface (Mbps) 10/100/1000

        Physical parameters
        Depth (mm) 90
        Design DIN rail
        Efficiency (%) 88
        Height (mm) 68
        Operating Temperature -25° až 50°C
        Weight (kg) 0.47
        Width (mm) 160

        Powering
        PoE No
