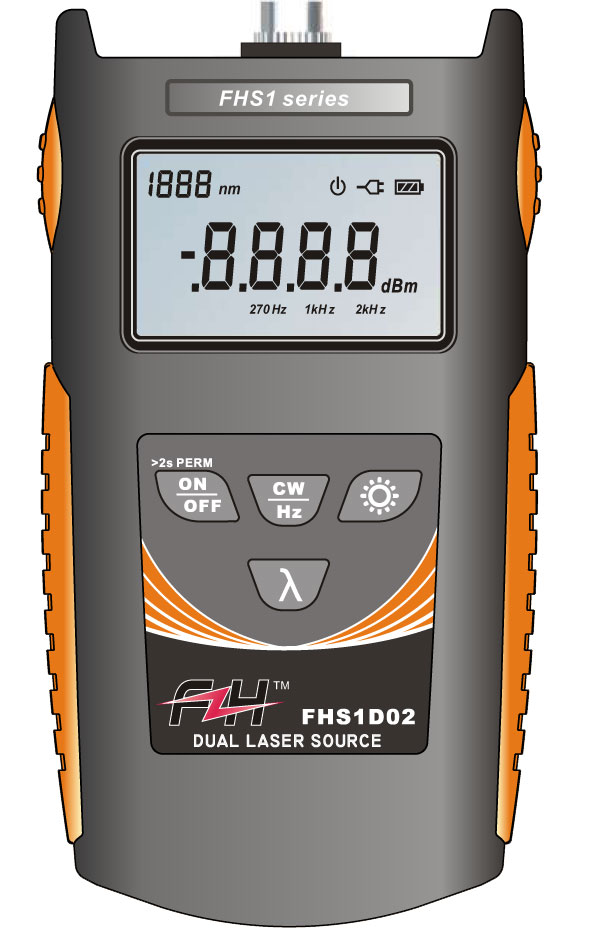

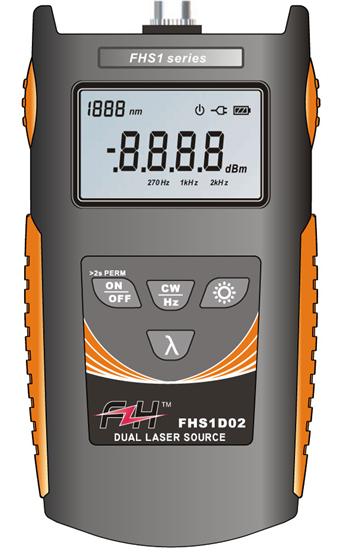

Grandway FHS1D02 Mini Optical Laser Source
Compare Set Watchdog

Grandway FHS1D02 Mini Optical Laser Source

Source of invisible light with 2 wavelengthsMore information

Producer
  Grandway

Part No.


FHS1D02


Code
 00013826
Warranty
12 Month
Your price exc. VAT
202.75 EUR exc. VAT
VAT
21%
Your price inc. VAT
245.33 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    FHS light sources offer excellent reliability and mobility for accurate optical fiber testing. One output optical port offers a stable, reliable and powerful laser source using two wavelengths. This compact unit can work in both CW (Continuous) and"Modulated". The battery status indicator is also integrated for user comfort.



    FHS1 models are a low-cost solution designed for all basic optical fiber tests. With a small size and weight, they are a handy helper of all users working with optical reasons.



    Specifications: Laser type: ld Output power: Operating temperature: -10 ° C-50 ° C Storage temperature: -20 ° C-70 ° C dimensions (mm): 115 x 65 x 30 weight: 140g output wavelength (nm): 1310/1550 Central wavelength: 1310 ± 20nm/1550 ± 20nm spectral width: 3nm output frequency (Hz): 270/1k/2k Output Stability Short-term: automatic shutdown: yes backlight: yes



    Parameters

    Backlight Ano
    Central wavelength 1310±20nm/ 1550±20nm
    Dimensions (mm) 115 x 65 x 30
    Laser type LD
    Long-term output stability < 0,2dB
    Model FHS1D03
    Output frequency (Hz) 270/1K/2K
    Output Power - Uplink (dBm) -5dBm
    Output wavelength (nm) 1310/1550
    Short-term output stability < 0,1dB
    Spectral width 3nm
    Storage temperature -20°C - 70°C
    Turn off automatically Ano

    Physical parameters

    Operating Temperature -10° až +50°C
    Weight (kg) 0.16
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Jan Mencl

    Product manager
    +420 778 885 932
    mencl@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Jan Mencl

    Product manager
    (+420) +420 778 885 932
    mencl@vanco.cz

    Downloads2

    Datasheet
    FHS1.pdf Format pdf (123.4 kB) Download
    User Manual
    FHS1D02UM.pdf Format pdf (3 180.8 kB) Download
