      Grandway FHP1A02 Optical Power Meter
      Compare Set Watchdog

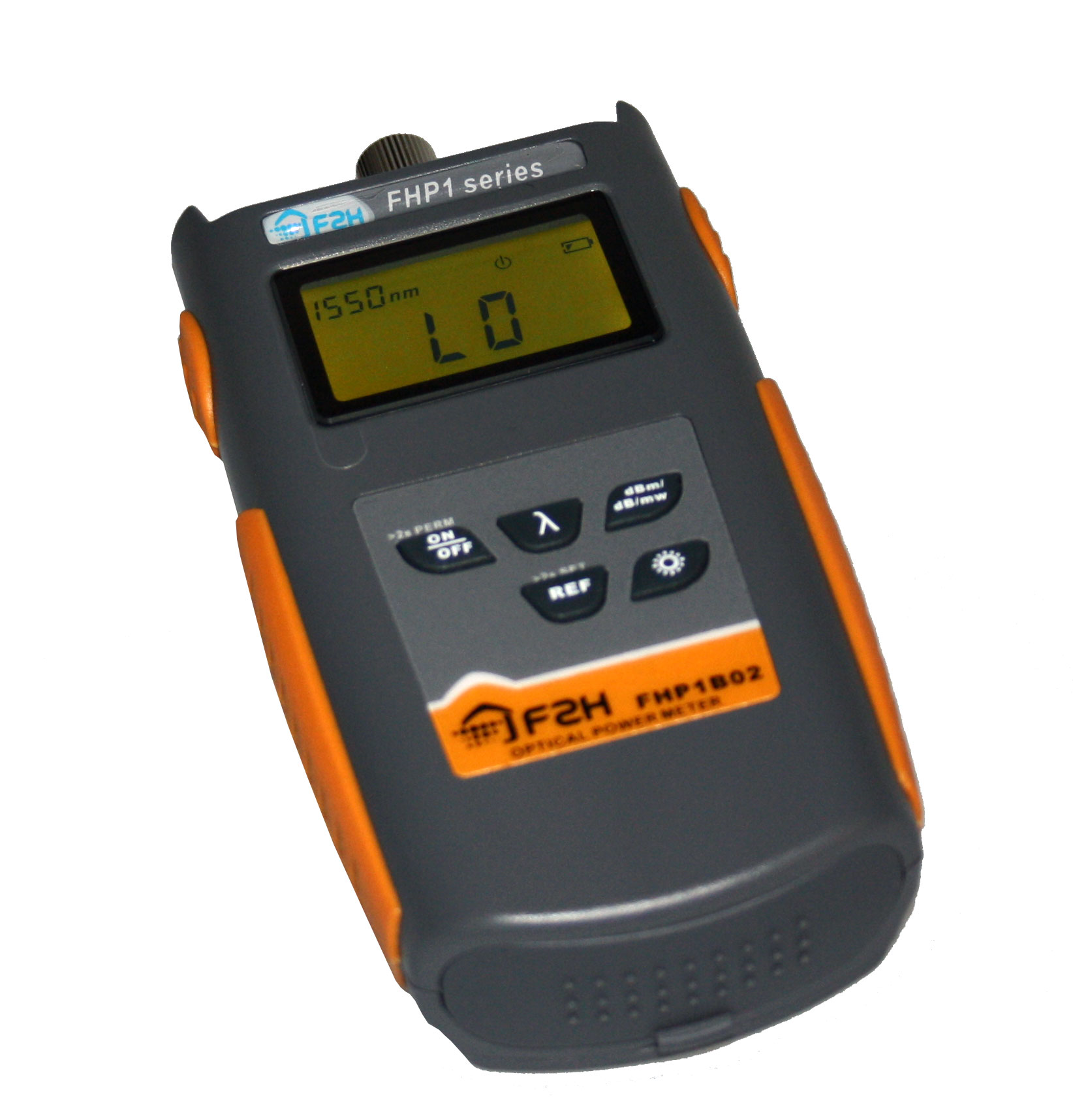

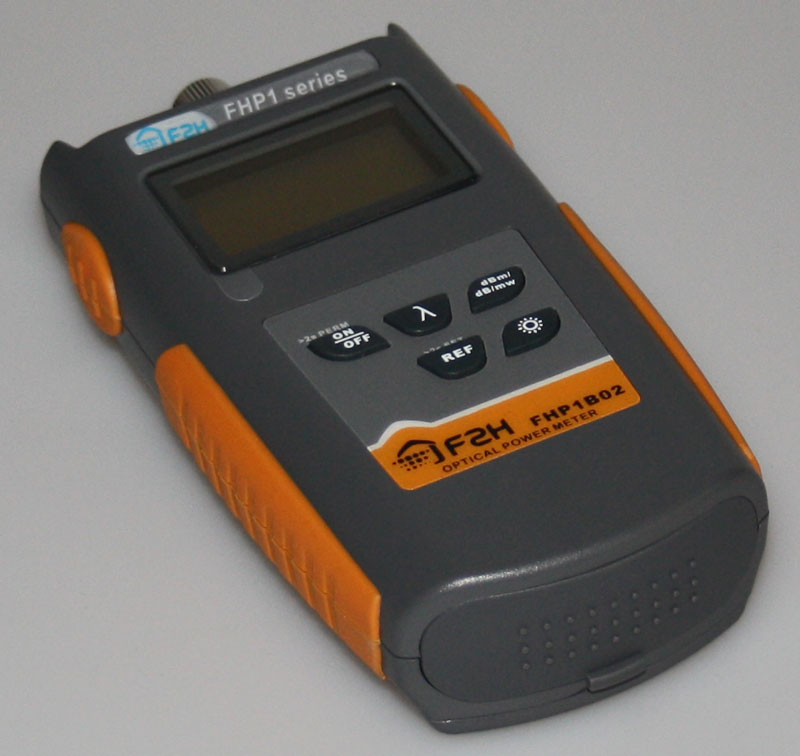

      Grandway FHP1A02 Optical Power Meter

      The FHP1B02 Optical Power Meter is designed to work with optical elements and for measuring losses and attenuation on optical cables, specially designed for the optimum price/power ratio.More information

      Producer
        Grandway

      Part No.


      FHP1A02


      Code
       00017549
      Warranty
      12 Month
      Availability

      to 1 month
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      158.41 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      191.68 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        Power Meter FHP1B02 is designed to work with optical elements and for measuring losses and attenuation on optical cables.



        is specially designed for the optimum price/performance ratio. It meets all basic desires for testing optical cables and routes. Due to small size and weight is ideal for field work.



        Specifications: wavelength (Nm): connectors: FC/PC, SC/PC, ST/PC, Universal Type of detector: accuracy: + 0.35 dB + 1NW resolution: 0.01db linearity: + 5#i6per# auto-spinning yes backlight yes measurement range (dbm): -60 to +10@1550nm surgical temperature: -10 to +50 (Cels) storage temperature: -20 to+70 (Cels) power: 5V AC/DC Adapter dimensions (mm) 115 x 62 x 30 weight: 140g



        Parameters

        Accuracy + 0.35 dB + 1nW
        Backlight Ano
        Connector FC/PC,SC/PC,ST/PC
        Dimensions (mm) 115 x 62 x 30
        Internal memory Ne
        Measuring range -60 to +10@1550nm
        Measuring range (dBm) -60 až 3
        Power Li-ion Battery ; 5V AC/DC Adaptor
        Reference value Ano
        Resolution 0,01dB
        Storage temperature -20 to+70(Cels)
        Support PC connectivity and data storage No
        Tone detection Ne
        Turn off automatically Ano
        USB interface Ne
        Wavelength (nm) 850/1300/1310/1490/1550/1625
        Wavelength recognition Ne

        Physical parameters
        Operating Temperature -10° až +50°C
        Weight (kg) 0.14
