Gigabeam G1.25 WiFiber® 1.25 Gbps, 74/84 GHz, Full-Duplex, 60 cm parabola

Bazaar: redeemed

GigaBeam WiFiber G1.25 is a complete PtP connection for the 70/80 GHz license-free band offering full-duplex data transfer with fully usable data rate of 1 Gbps and   transfer capacity of 1.25 Gbps !! G1.25 has a well-equipped interface, optical interface (SM or MM) and Ethernet interface for management and SNMP monitoring, power supply 48 V power supply. Other important attributes include Adaptive Transmitter Power Control (ATPC), Reed-Solomon Forward Error Correction (FEC) and already mentioned full duplex FDD transmission at 2x 1.25 GHz channel width.

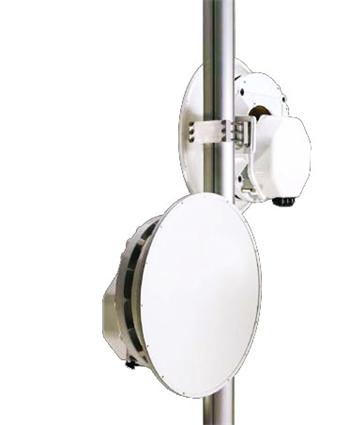

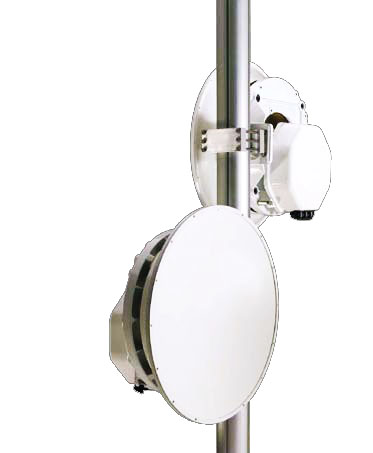

The G1.25 version is designed only for outdoor ODUs. Each side of the joint therefore comprises the outdoor radio unit with integrated parabolic antenna with a diameter of 60 cm with a radome, outside the switchboard, and two redundant power supplies.

The connection complies with the general authorization VO-R/23/04.2008-4 and allows the implementation of high-speed connections without limitation of distance (given by the CTO controller).


Key features:
-Uses 74/84 GHz bandwidth
-Frequency Division Duplex with 10 GHz channel spacing
-Full Duplex transmission
-Modulation: BPSK
-Latency: 9.8 microseconds
-Interface: Data-Gigabit Optics, Management-10/100BaseT Ethernet
-Connectivity to Direct Visibility
- (range is not limited to October 13, 2009 by CTO)

Frequencies, band:
-CTO defined band: 74,125-75,875 GHz/84,125-85,875 GHz
-Average operating frequencies: 75 GHz/ 85 GHz
-Bandwidth: 1.25 GHz
-Operating band: 74.375-75.675 GHz/84.375-85.675 GHz
-Adjustable receiver/transmitter range: fixed frequency without tuning option

Transmission Rate, Capacity:
-Channel Width 1.25 GHz: 1 Gbps/(BPSK)
-1.25 Gbps Signal Rate
-Full-Duplex Transmission

Sensitivity: BR>-(-) 57 dBm (BER = 10-6)
-Threshold (1.25 Gigabits):-50 dBm
- Noise Figure: 10 dB

Supported Standards:
-FCC: Part 101 (47 CFR Part 101.63 to Part 101.147) ETSI: RF-EN302 217, EMC-EN301 489, Environmental-EN300 019, EN60950 IEEE 802.3z Gigabit Ethernet

Transmission power:
-Max. +20 dBm
-Output power is software-controlled in 1 dB step in the range 0 to-45 dB of maximum value, range of automatic power control max 20 dB

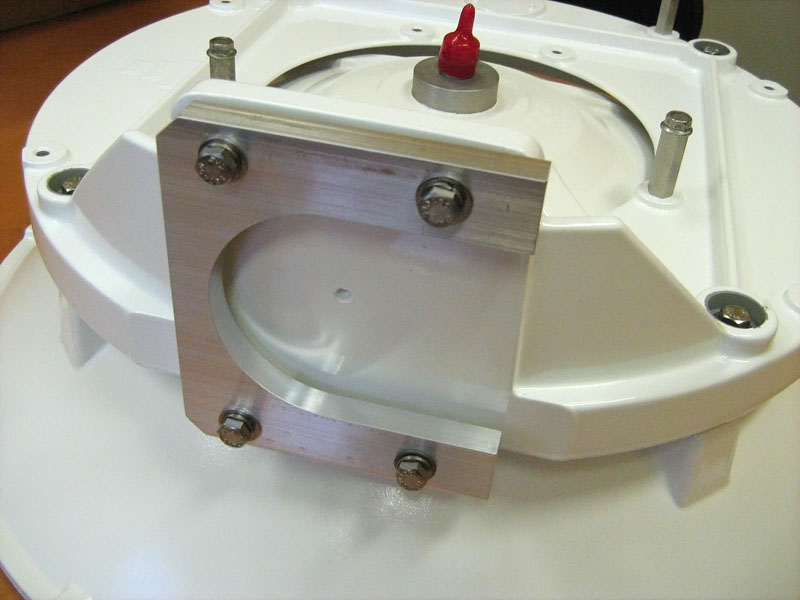

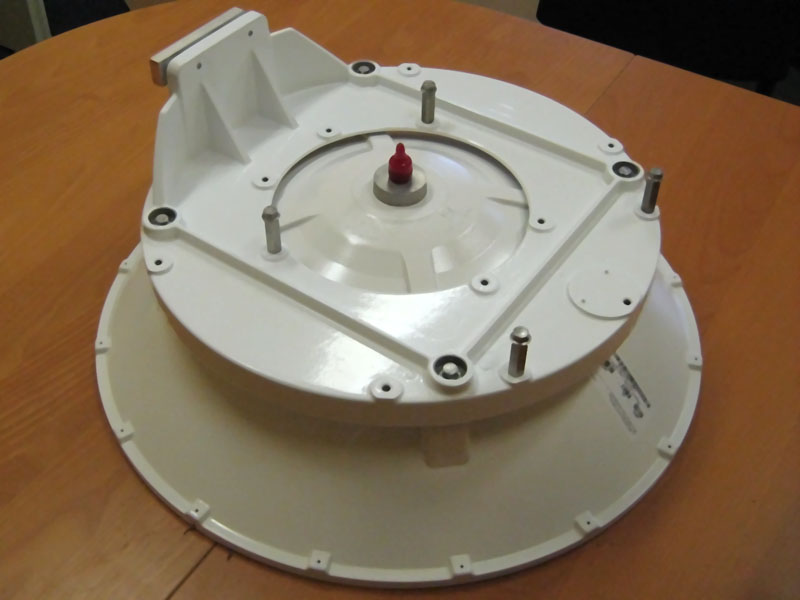

Antenna:
-Integrovaná parabolická anténa with diameter 60 cm
-Polarization: Vertical/Horizontal according to unit mounting (linear)
-Profit: 50 dBi (71 GHz), 52.5 dBi (86 GHz)
-H Angle: 0.38 °/0.31 ° (73.5 GHz/83.5 GHz)
-A angle: 0.42 °/0.35 ° (73.5 GHz/83.5 GHz)

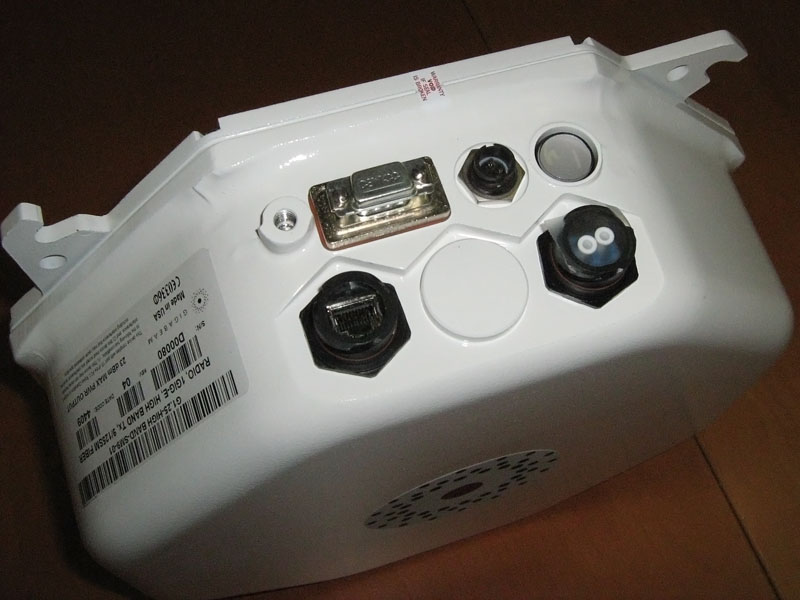

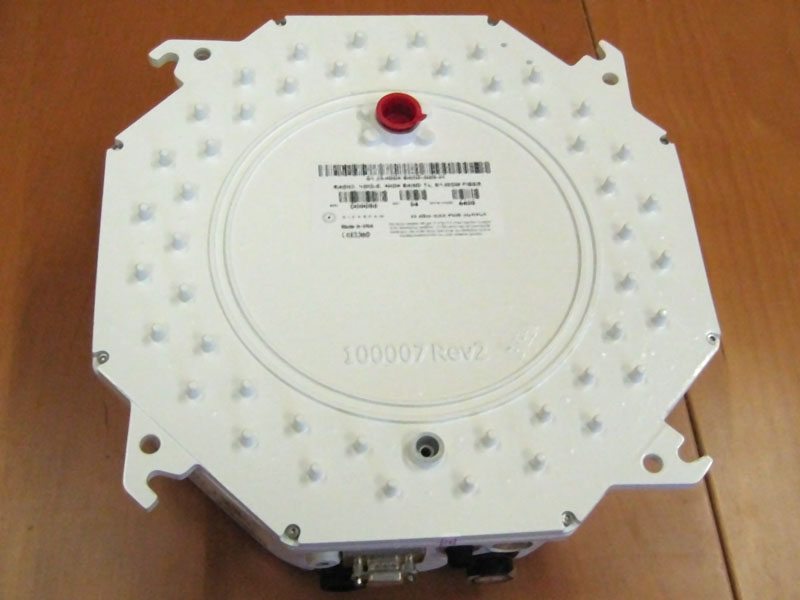

Ports:
-Radio unit: 1x Gigabit Ethernet 802.3z, Single Mode, 2x LC connector
-1x 10/100Base-T management port, RJ-45 connector
-1x power port
- 1x RS-232 serial port (CLI) DB-9 connector
-All connectors have external mounting caps
Power supply:
-48 V DC-2x (redundant), Consumption max. 28 W (48 V DC), the outdoor unit is powered via a multipath cable of max. Length of 100m.

Networking:
-OSI layer: 1

Management:
-Local/Remote-SNMP, inband V2c
-Local-RS-232
-Performance Monitoring-Bit errors, frame errors, local and remote
-Temperature:-33 ° to + 55 ° C
-Light: Relative humidity up to 95 % (non-condensing)

Dimensions:
-Radio unit: 30 x 30 x 10 cm without bracket, antenna diameter 60 cm

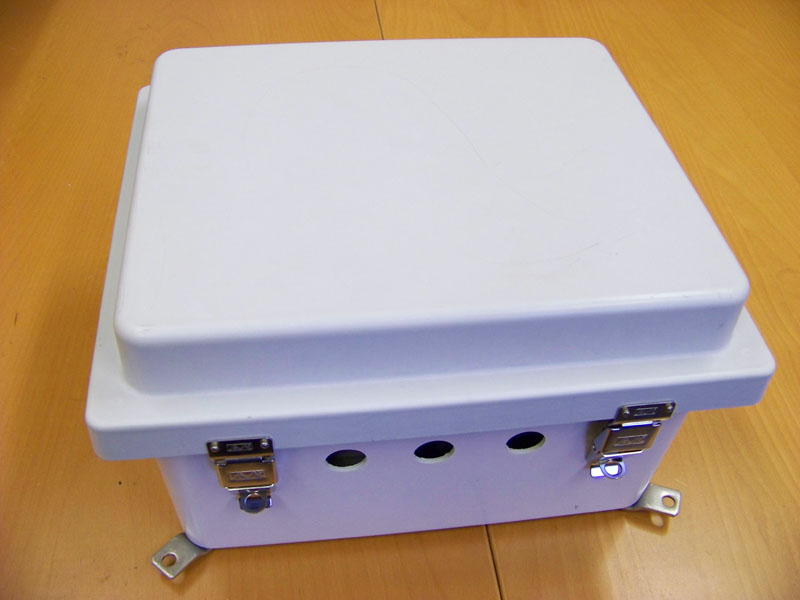

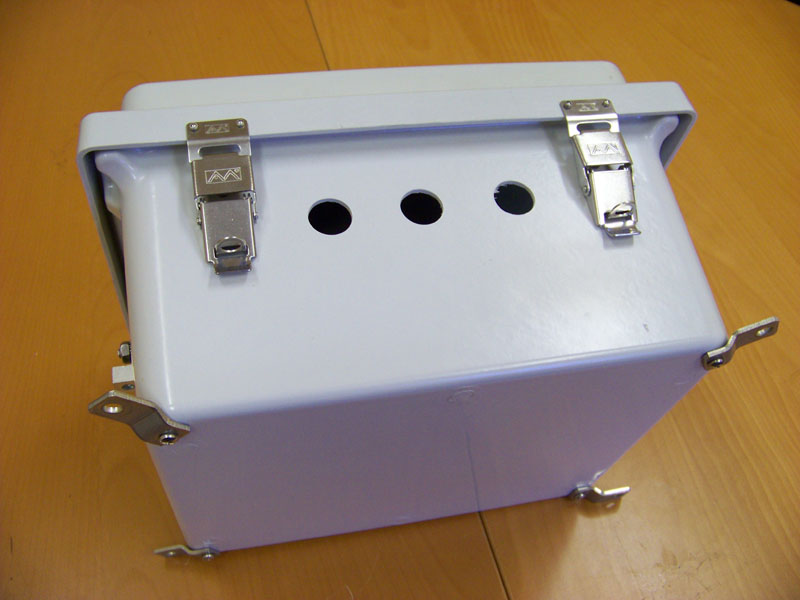

-Demarc Box: 30 x 20 x 15 cm

Weight:
-Radio unit-5kg, antenna-17kg, outdoor box-5kg

Scope of delivery:
-2x Radio unit with integrated antenna
-2x 7 m 7 m cable, 2 x 7 m Cat5e cable, 2x RJ-45
-2x 7 m Supply cable-4 cores

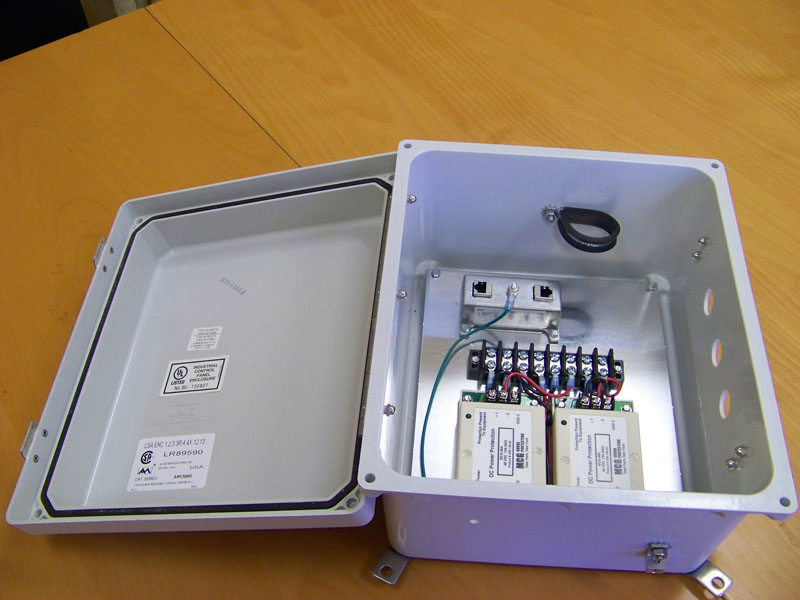

-2x Demarc Outdoor box (incl. 3 lightning arrestors)

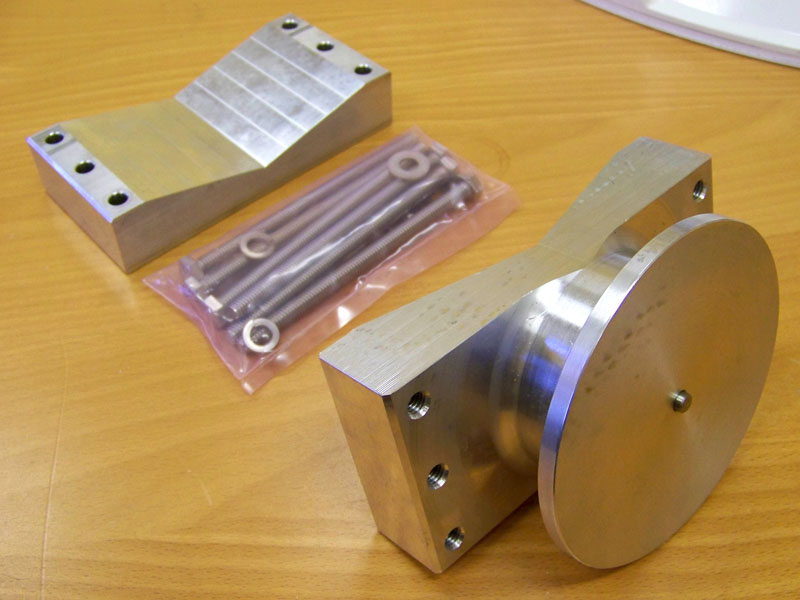

-2x Mounting kit for 51-152 mm mast

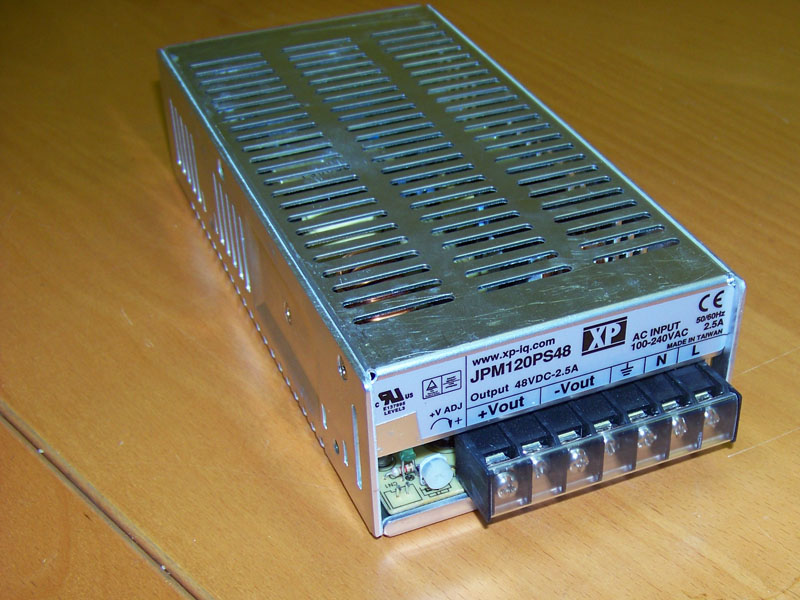

-4x 220 V AC/48 V DC power supply
-Documentation

We also offer the possibility of installing, SLA   and other complementary services as per the customer's request. At the same time we offer the possibility of short-term and long-term financing of the connection, even in the form of installments without increase.

For calculation and design of the connection please contact us. "Demand form" here
