G1EX GainMaster

GainMaster G1EX   is a high-quality, 5GHz compact compact unit that achieves   STRONG> 150 Mbps . The unit supports the state-of-the-art IEEE 802.11a and 802.11n standards and features a removable 2 dBi antenna that can be replaced with a more powerful or robotic version if needed.

The G1EX configuration is through a web interface that is easy to understand and easy to understand. Here are some innovative features. For all of them, we can set up and save 3 profiles-master, backup1, backup2. &Nbsp; You can also switch   in a situation where a connection to AP is lost.   Another great feature is the easy focusing of the antenna using graphical signal strength indicators with memorizing the best value. The cake pearl is a bilingual version-you can switch between CJ and ANJ and help with each function.

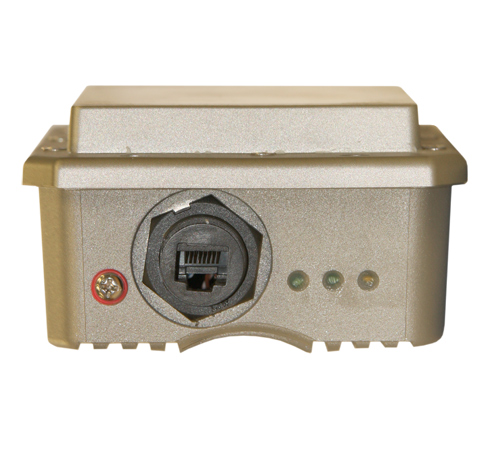

The unit is powered by an Ethernet cable (RJ45) with POE technology and can be powered over long distances. This is especially convenient if you need to mount the unit on the roof or where it is not near the electrical outlet. The mounting and mounting of the unit are as simple as possible and offer fast and convenient installation in almost all conditions.

In the"Files" section, you can find a manual for the drive. &Nbsp;

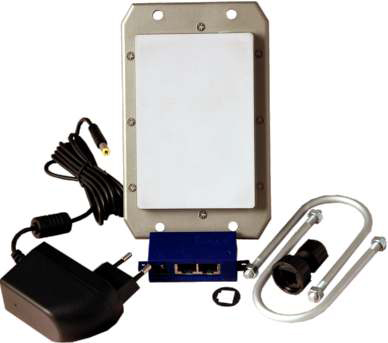

Package included power supply adapter 12V, passive PoE and mast holder .

Features:

• standards: IEEE 802.11a, IEEE 802.11a/n (mixed mode)
• transmission power: 802.11a: 20 ± 2dBm @ 54Mbps, 23 ± 2dBm @ 6Mbps/802.11a/n (mixed mode): 18 ± 2 dBM
• power control 17 dBmW, 23 dBmW-38 dBmW (1 dBmW)
• external omnidirectional 2 dBi antenna

Drive access data:

IP address 192.168.1.1 , the DHCP server is set by default-ie, the address picking on the computer must be set to"automatically"
