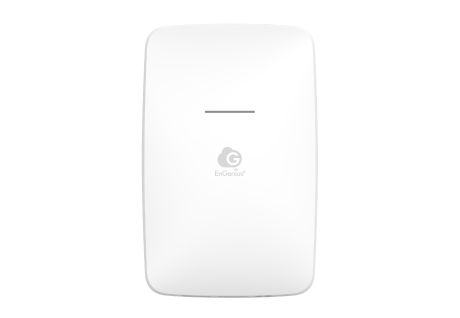

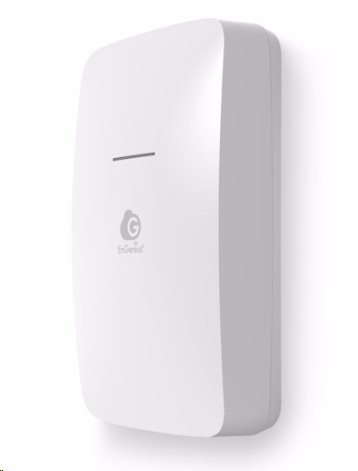

EnGenius ECW115 WiFi 5 Access Point Cloud Controller In-Wall

The Enterprise Wi-Fi range and ENGENIUS Cloud Series' PoE switches provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed access points Engenius meet the requirements for high transfer speed and permeability for hundreds of clients.

Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in unlimited networks at different locations-regardless of their size, infrastructure or physical location.



Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with the cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to anticipate problems before they occur and provide accurate recommendations for active performance improvement.
Engenius ECW115

two-band access point Engenius ECW115 is particularly suitable for use in hotels and offices-it offers not only fast WiFi but also 3x GEET Port , one of which supports Poe-out . Wi-Fi provides fast and reliable coverage in bands 2.4 GHz and 5 GHz, transfer speed up to 1,267 Mbps, 2 × 2: 2 MU-MIMO, TX Beamforming, patented Mesh technology.

• Internal access point 802.11ac Wave 2
• speeds up to 400 Mbps (2.4 GHz) and 867 Mbps (5 GHz)
• MU-MIMO technology (2 × 2: 2)
• TX Beamforming optimizes signal, reception and reliability
• band steering, fast roaming
• Guest Wi-Fi, Captive Portal including Social Network Login or Vouchers
• AP, AP MESH and MESH

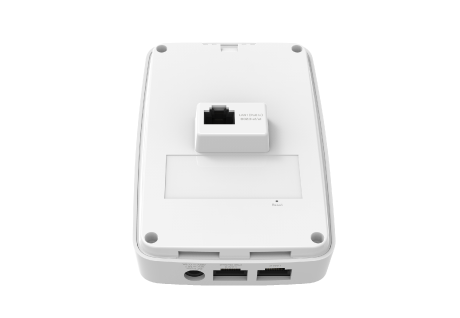

• 3x Gigabit Ethernet PoE Port (1x back, 2x underside, 2x Poe-in and 1x Poe-out)
• Power supply 12 V DC or 802.3AF POE
• mounting on the ceiling or wall
• AP settings with one click-just scan the QR code and assign to the cloud
• unlimited number of access points in the cloud-access from anywhere, anytime
• Managing and monitoring network via mobile app
• Using AP and cloud is without any other license or service charges


  promo video


  Engenius Cloud
  Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.

• easy management of multiple organizations and networks in one account, sort and filter individual networks
• Mass management AP and switches in one place
• Quick solution to graphical and visualization tools
• Clear view of each client's history on Timeline
• Information in real time Information about the status and performance of each individual AP and network as a whole
• Automatic network topology, built-in AP coverage view on maps
• Operation Analysis on 7.
• Captive portal with advanced features-Social network login, automated voucher printing option for temporary access, Radius support.
• Mobile application Engenius Cloud-full check over Switchi, access points and devices managed cloud, wherever you are.
• Possibility to remotely and centrally manage FW all devices, possibility to coordinate updates with planned maintenance
• One-CLICK registration of new AP via the web or mobile application



  Wi-Fi Standards:
• IEEE 802.11b/g/n for 2.4 GHz
• IEEE 802.11a/N/AC Wave2 for 5 GHz

  antennas:
• Integrated Omni-Directional
• 2 x 2.4 GHz: 4 DBI
• 2 x 5 GHz: 5 DBI

  interface:
• 2 x 10/100/1000 Ethernet Ports (POE)
• 1 x 10/100/1000 Ethernet Port (PSE OUT; REQUires 802.3at Power Source)
• 1 x DC Jack
• 1 x reset button

• Power:
• Power-Over-Ethernet: 802.3af/at
• IEEE 802.11e Compliant Source
• 12 in DC/1 and Power Adapter

  Management:
• multiple BSSID
• 8 SSID for 2.4 GHz and 5 GHz
• Vlan tagging
• Support 802.1Q SSID-to-VLAN TAGGING
• Cross-Band Vlan Pass-Through
• Management VLAN
• Spanning Tree
• Supports 802.1d Spanning Tree Protocol
• QoS (Quality of Service)
• IEEE 802.11e Standard
• wmm
• SNMP V1, V2C

  Security:
• WPA/WPA2 Enterprise (WPA-EAP Using TKIP OR AES)
• Hide SSID in Beacons
• Mac Address Filtering, UP to 32 Macs Per Ssid
• Wireless STA (Client) Connected List
• Client Isolation


  Discover the power of Engenius Cloud
