      Advertisement: Switching power supply Mean Well MDR-40-48, 40W 48V OUT
      Compare Set Watchdog

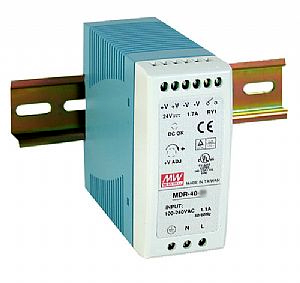

      Advertisement: Switching power supply Mean Well MDR-40-48, 40W 48V OUT

      High quality power supply with an output voltage of 48V and output of 0.83 40Ws installation on DIN rail.More information

      Producer
        MEAN WELL

      Part No.


      MDR-40 48V 0,83A


      Code
       00019868
      Warranty
      24 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      16.50 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      19.97 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        Technical information:

      • closed form
      • mountable directly on a printed circuit board
      • Screw terminals with touch protection
      • input voltage range from 85 ... 264 V AC, 47 Hz and 63 ... 120 ... 370 V DC
      • overload protection boundary current, auto recovery
      • short circuit protection
      • 100% Burn-In-Test full load
      • built-in noise filter, low ripple
      • single output
      • 0,7A input rated current at 230V
      • 60A inrush current cold start with 230
      • operating temperature range:-20 ... + 70 ° C
      • Overload protection: 105 ... 160%
      • protection against surges: 115 ... 135%
      • insulation voltage from input to output 3000 V AC
      • insulation resistance from input to output of 100 M & Omega
      • 50ms failover network at 230V
      • insulation class II
      • LED indication for Power On
      • Weight: 300 g
