Alcoma AL10D MELII 32 Mbps

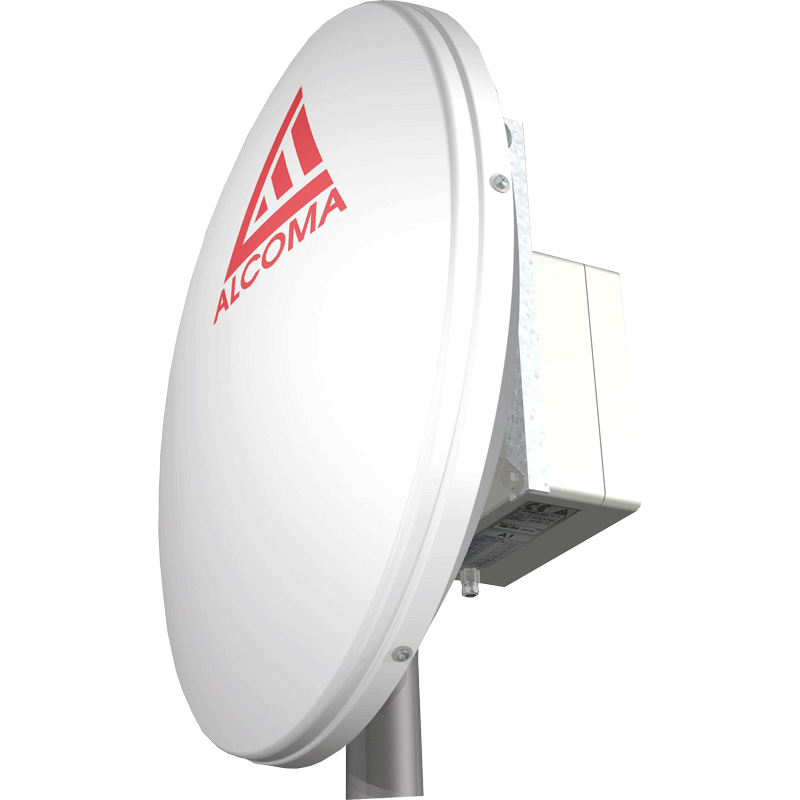

AL10D MELII are point-to-point microwave links designed for cheap and easy construction of the last miles of telecommunication networks.

This link may already be between 1 440,-/month

For calculation and connection design, please contact us. "Inquiry form" here . &Nbsp;      AL10D MELII is the next generation of the proven AL10D MEL joint, an economical version of the AL10D MEII joint with a simplified surveillance system and a simplified parabolic antenna of 0.6m with OPN. Despite the simplification, all transmission parameters and the reliability of the link remain. The link operates in the free band 10.3-10.6 GHz according to VO-R/14/12.2006-38, its construction is subject to no registration or notification obligations and operation is not charged.



Advantages of 10.3-10.6 GHz connections

• Joints always work at full speed
• The connection is fully duplex
• The joint error is less than 10-11
• While adhering to the basic construction rules, several tens of joints can be placed at one point without affecting each other



Why use the AL10D MELII link?

• Verified high operational reliability
• High resistance to interference from other connections and other types of interference while complying with standards for both radio and electromagnetic emission standards (the connection does not disturb the other connections, radio amateur transmission and does not adversely affect the operation of other electrical equipment)
• Easy and fast assembly, compact design without connectors and indoor unit
• Transparency from the supervisory system, including the ability to swap both sides from one location
• Change the polarization by turning the outer unit by 90o
• Preservation of the ASD surveillance and diagnostics system, SNMP supervision
• 4FSK modulation, less bandwidth, adherence to recommended channel table = > possibility to deploy multiple connections
• One S-STP cable cat. 7 transmits user data and power to external drive



Ethenet interface properties:

• The ability to control the Ethernet interface speed from 1024 kbps to 32 Mbit/s
• VLAN transparent
• Enable autonegotiation or manually set Ethernet parameters
• Route Delays in MS and Full Loads
