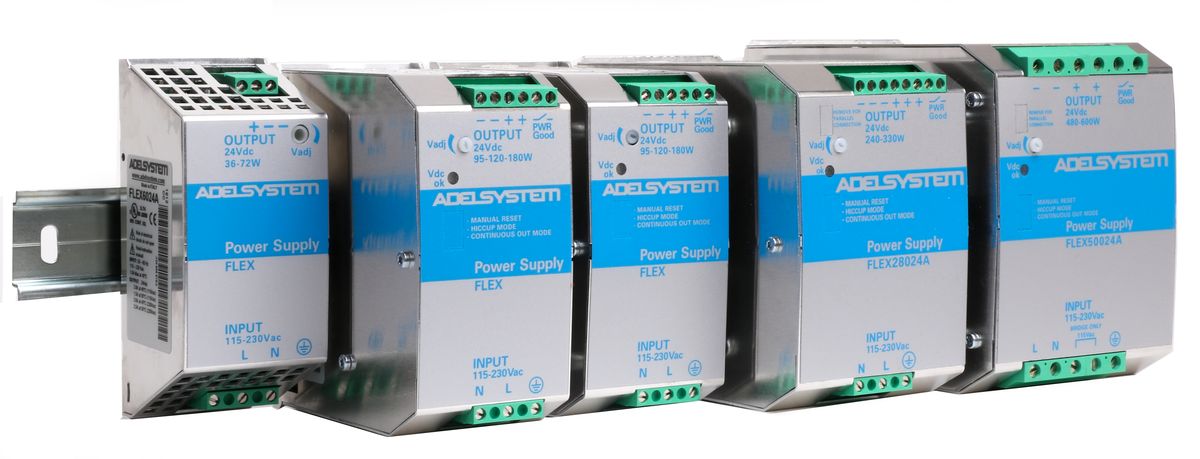

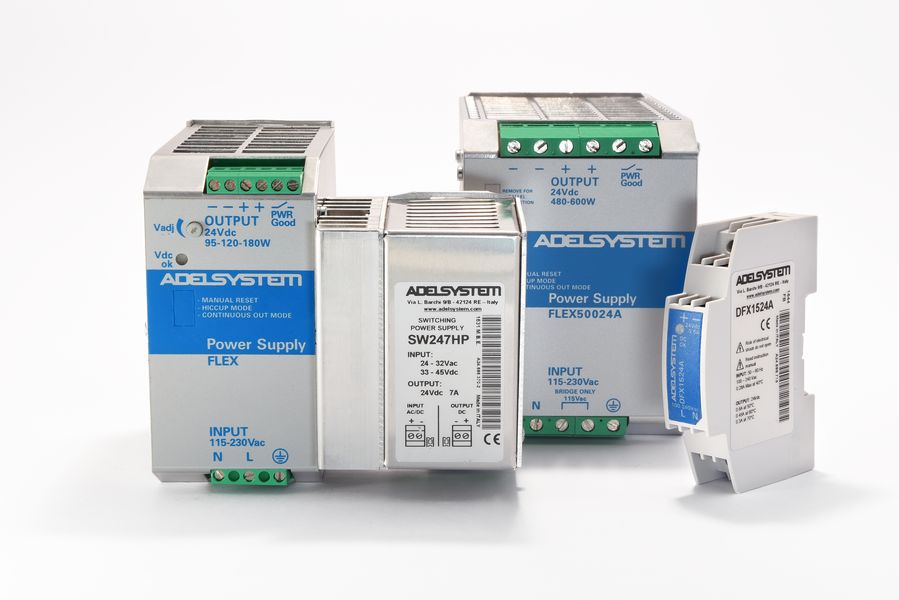

ADEL System FLEX17048A, Industrial power supply, 48V/3.8A, 180W

The FLEX series of industrial DC power supplies from the traditional Italian manufacturer ADEL System brings the best technologies to the category of affordable power supplies. Model FLEX17048A is an AC / DC power supply with a wide input voltage of 115-230 V and a DC output of 48 V / 3.8 A with the possibility to connect devices up to 180 W .

The output voltage can be regulated in the range of 41 to 55 V, the power supply can withstand up to 50% output overload without disconnecting the load . It is protected against short circuit by one of 3 optional methods: 1) Hiccup mode 2) Continuous Out Mode 3) Manual Reset.

Wide operating temperature range ( -25 to 70°C ), compact size including DIN rail bracket and 3-year warranty are prerequisites for reliable operation under all circumstances.


Key Features:

• Input: 115 & ndash; 230 VAC
• Output: 48 VDC / 3.8 A / 180 W
• Efficiency: & nbsp; over 91%
• Possibility of overloading by up to 50%
• Output relay (power signaling)
• Three types of short circuit protection: 1) Hiccup mode 2) Continuous Out Mode 3) Manual Reset
• Compact size + DIN mounting
• 3 year warranty

& nbsp;

Specifications:
& nbsp;
