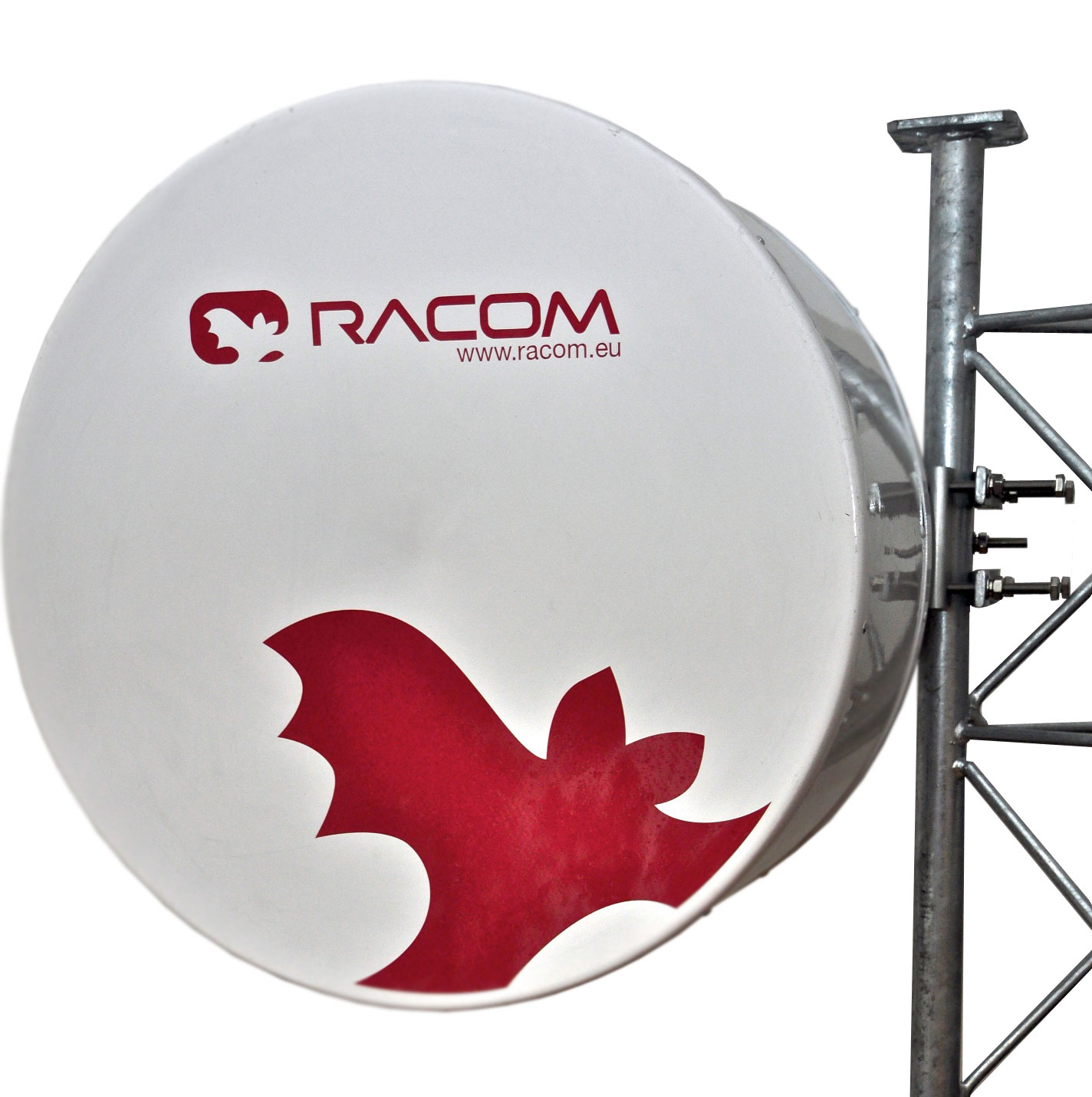

Action: Racom RAy 10 GHz, incl. 38 cm antennas, 130 Mbps Full-Duplex, 1x Gb Ethernet

Speed:

• Modulation speed 200 Mbps, user speed 170 Mbps for 256 QAM
• SW Modulation Settings: QPSK, 16, 32, 64, 128, 256 QAM
• ACM (Adaptive Coding and Modulation)
•

  Reliability:

  • Made exclusively from military or industrial applications
  • Surge and electrostatic protection
  • Certification-30 ° C to + 55 ° C
  • Each piece tested and burned in the climatic chamber even in real-life operation
  • Extraordinary reliability of your own communication: high sensitivity of the receiver
  • -87 dBm/41Mbps/QPSK/28MHz
  • -67 dBm/170Mbps/256QAM/28MHz
  • -96 dBm/8.45Mbps/QPSK/7MHz
  • Extreme immunity against radio interference
  • LDPC (Low-Density Parity-Check) coding (FEC)

    Simplicity:

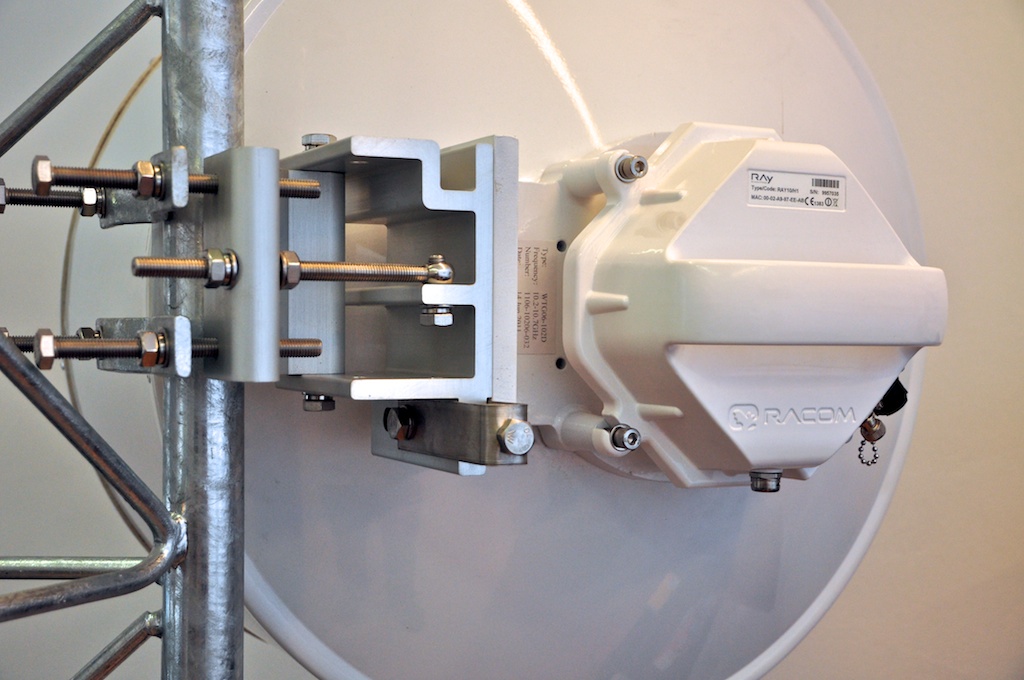

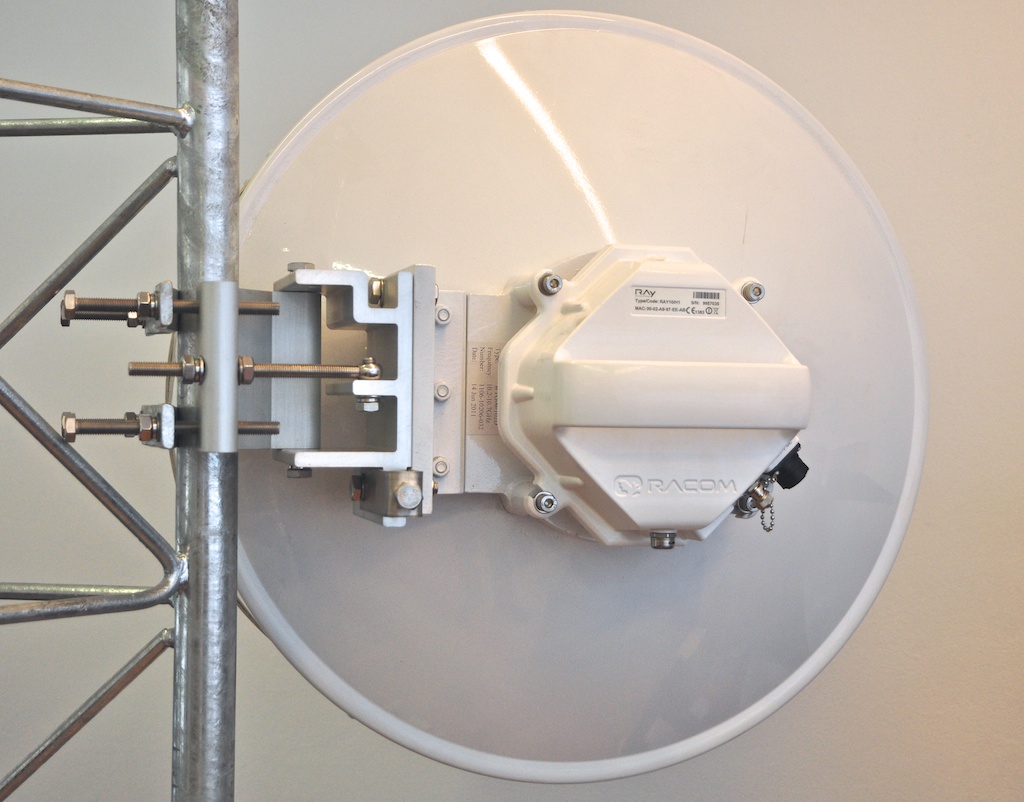

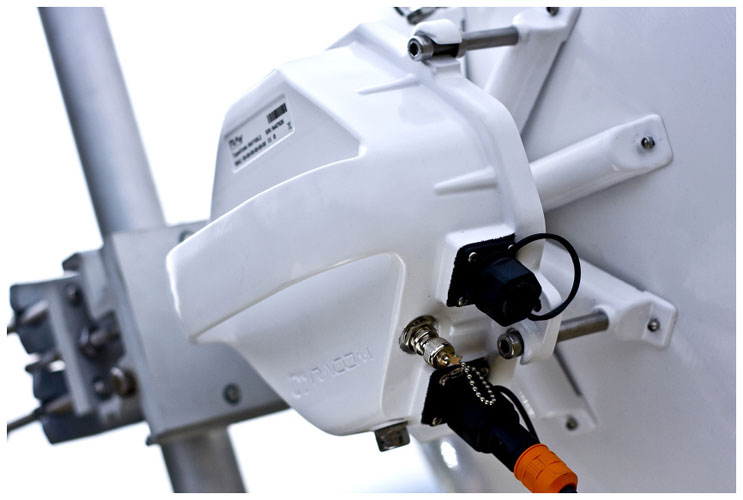

    • FOD (Full Outdoor), Al alloy casting, direct mounting on the antenna
    • Change polarization by turning by 90 ° (4 fastening screws enabled)

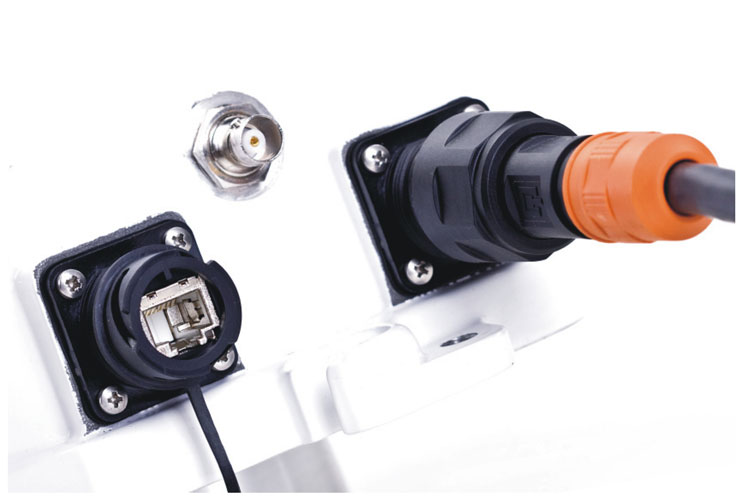

    • Acoustic signaling of antenna tuning (+ analog voltage on BNC connector)
    • Complete installation and setting in minutes



    • Unreservedly, all relevant European and Czech standards are also met for 170 Mbps
    • Confirmed by measuring all parameters in TESTCOM Prague certified laboratory

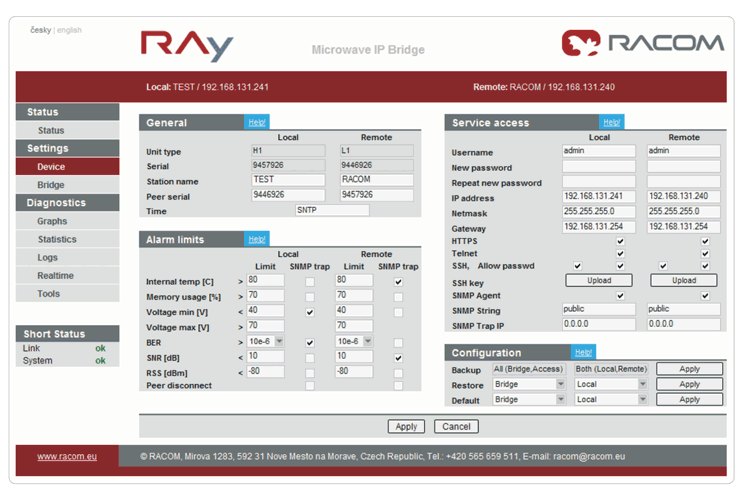

    • Configure via HTTPS, SSH
    • When verifying real-time communication with a specified serial number
    • Theft protection: Unique SSH key for each serial number
      Diagnostics:
      • www interface
      • Graphs history of temperature, power, RSS, SNR, BER, speed
      • SNMP, including generating TRAP when the set thresholds are exceeded
      • Built-in spectral analyzer to find a free channel
      • Automatic detection of the polarization set
      • Constellation diagram of the received signal

        • Ungrounded input filter
        • Full SW retractability including a combination of channels 4, 7 at full speed, sensitivity and durability

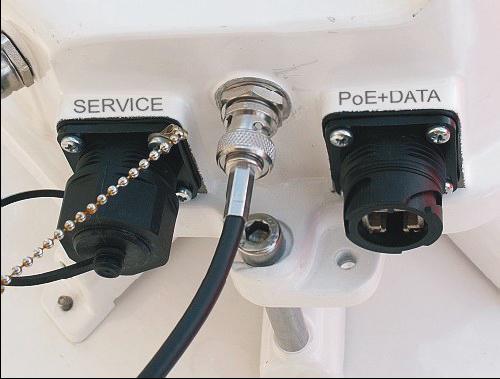

        • Option with the other Eth. port (physically separate for service access"out-of-band" supervision)
        • Direct mounting on various manufacturers' antennas including flexible waveguide options



        Detailed product charteristics:

        • Frequency band: 10.3 10.6 GHz
        • Rollover: The top of the spectrum (center frequencies 10.4795 -10.5845 GHz), channels 7-10, bottom of the spectrum (center frequencies10,3115-10,4160 GHz), Channels 1-4 according to VO-R/14/12.2006-38 CTO
        • Channel Width: 7; 14 and 28 MHz
        • Full-Duplex transmission
        • Modulation: QPSK/16QAM/32QAM/64QAM/128QAM/256QAM, ACM
        • Latency: 140 us for 170 Mbps
        • Interface: 1x GB Ethernet port
        • Adaptive Modulation + ATPC
        • Connections to Direct Visibility
        • Range: According to used antennas up to 70km (antenna system 2x 120cm, modulation QPSK 50Mbit)



        Work Frequencies, Band:

        • Transmitting frequencies: RAY10H1: Top of the spectrum (center frequencies 10.4795-10.5845 GHz), channels 7-10 according to VO-R/14/12.2006-38 CTO /unit RAY10L1: lower part of the spectrum (center frequencies 10,3115 -10.4160 GHz), channels 1-4 according to VO-R/14/12.2006-38 CTO
        • Frequency spacing between channels: 168 MHz recommended, possibly a combination of channels 4-7
        • Tuning range: The transmitter at the top of the spectrum, which can be assigned any channel from the bottom of the spectrum for reception

        Sensitivity (BER10-6):

        • -89 dBm/QPSK,-82 dBm/16QAM,-78 dBm/32QAM,-75 dBm/64QAM,-72 dBm/128QAM, /ul>


          Supported standards:

          • Radio parameters: ETSI EN 302 217-2-2 V1.3.1 (2009-04), ACCP/CCDP limits
