19" outdoor cabinet 30U/600x600 metal door, IP55, gray

The switchboard is suitable for installing data and telecommunications devices. Outdoor wall switchboard made of rolled steel with a thickness of 1.5 mm. Three-layer finish.

Basic specifications
Switch-up format: 19"
Capacity: 30U
Degree of protection: IP55-waterproof
Dimensions: 600 x 600 x 1600 mm (width x depth x height)

version:

• Color: gray, RAL7035BW
• door-full, openable by 110 °, 3-point lock, interchangeable opening direction, foam polyurethane seal
• back cover-full
• side cover-full
• upper cover-full

other properties

• mounting holes for wall placement always 20 mm from outer edges.
• vertical mounting rails for 19"equipment-left and right.
• The fastener is packed with the switchboard.
• At the bottom of the switchboard there is a passage for cabling 303 x 113 mm with a removable cover.
• meets IEC60529, EN60529/10.91 and GB4208-93 standards.

Accessories:

• ears for attaching over and below cabinet with an overlap of 10 mm on each side (indentation from the wall when used +8 mm)
• mounting screws
• Universal key

---

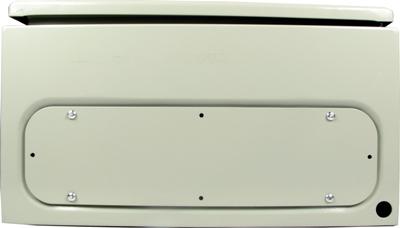

Blinded bottom opening for cables:


after removing the cover:
